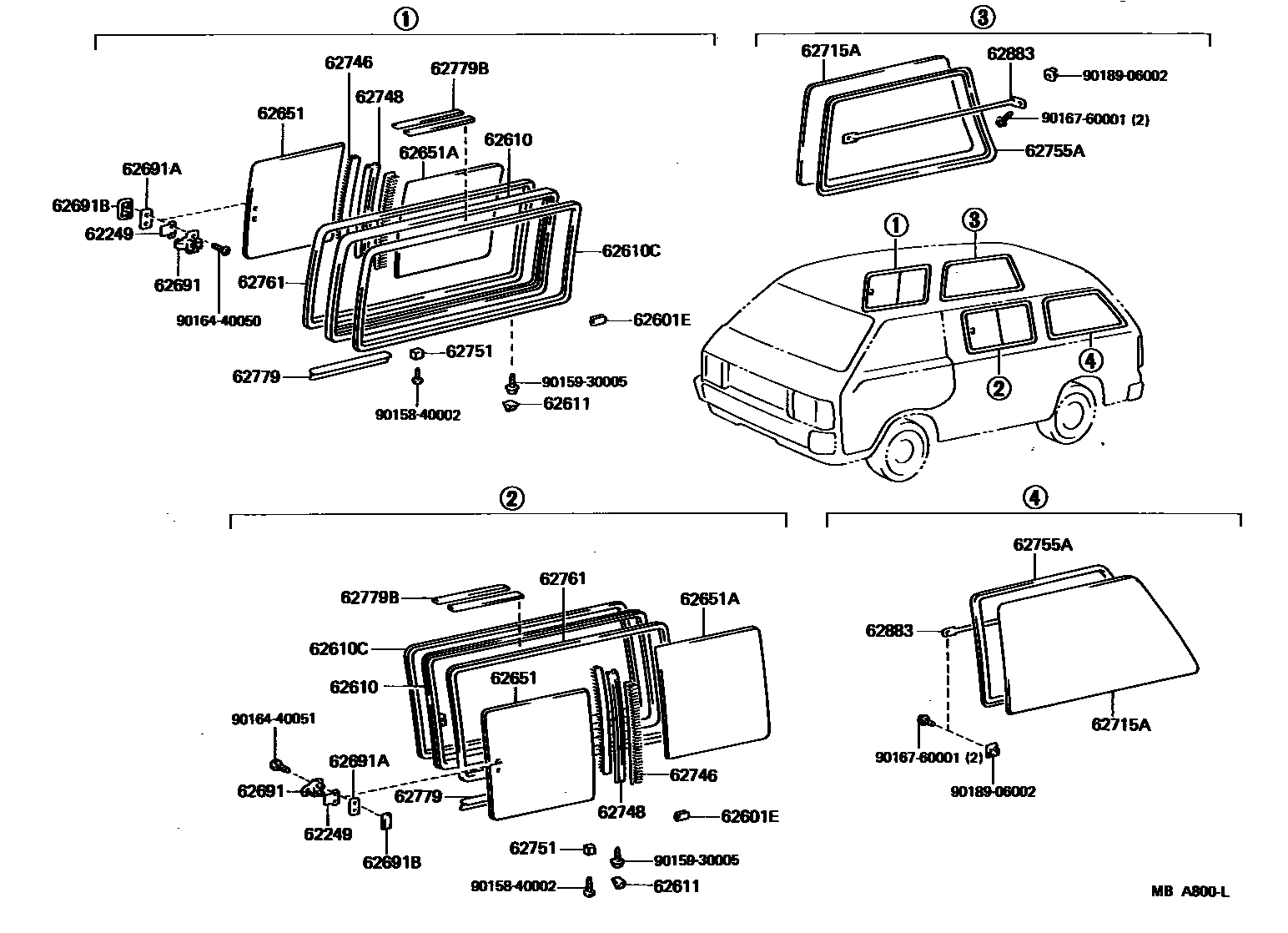

SIDE WINDOW

0001 1 0002 1

62249PLATE, SIDE WINDOW, RH

main62249-95700iCM20,KM20,YM20..VSG198405-198508

62601EPIECE, SIDE WINDSHIELD, NO.1

main62229-95J00iKM20,YM21..08S,09S198210-198508

62610SASH ASSY, SIDE WINDOW OUTER, NO.1 (FOR SLIDE TYPE)

main62701-95703iCM20,KM20,YM20..RHD..V4D..VSG197910-198508

RH

main62701-95704iKM20,YM21..RHD..(08S,09S)198101-198508

RH

main62702-95703iCM20,KM20,YM20..RHD..V4D..VSG197910-198508

LH

main62702-95704iKM20,YM21..RHD..(08S,09S)198101-198508

LH

main62705-95700iKM20..V5D..VSG197910-198508

RH

main62705-95701iKM20..LHD..(BUS,WG)197910-198508

RH

main62706-95700iCM20,KM20..LHD..V4D..VSG197910-198508

LH

main62706-95701iKM20..LHD..(BUS,WG)197910-198508

LH

62610CCLIP, SIDE WINDOW OUTER SASH, NO.1 (FOR SLIDE TYPE)

main62775-95701iCM20,KM20,YM20..RHD..V4D..VSG197910-198508

RH

main62775-95701iCM20,KM20..LHD..V4D..VSG197910-198508

LH

main62775-95704iKM20..DLX198208-198210

LH

sub62775-95701

main62776-95701iCM20,KM20,YM20..RHD..V4D..VSG197910-198508

RH

sub62775-95701

main62776-95701iCM20,KM20..LHD..V4D..VSG197910-198508

LH

sub62775-95701

main62776-95703iKM20..DLX198208-198210

RH

sub62776-95701

62611SPACER, SIDE WINDOW SUPPORT, NO.1

main62279-95J00iCM20,KM20,YM20..VSG198309-198508

UPR

main62779-95700iKM20,YM21..BUS,WG197910-198508

62651GLASS, SIDE WINDOW, NO.1, FRONT (FOR SLIDE TYPE)

main62712-95702iKM20,YM21..RHD..(08S,09S)198210-198508

RH,*TT,T=4.0

main62712-95703iCM20,KM20,YM20..RHD..V4D..VSG197910-198508

RH,*TEM,T=4.0

main62722-95703iKM20,YM21..RHD..(08S,09S)198210-198508

LH,*TT,T=4.0

main62722-95704iCM20,KM20,YM20..RHD..V4D..VSG197910-198508

LH,*TEM,T=4.0

main62752-95703iCM20,KM20..LHD..V4D..VSG..GEN198210-198508

RH,*TT,T=4.0

main62752-95704iCM20,KM20..LHD..V4D..VSG197910-198508

RH,*TEM,T=4.0

sub62752-95703

main62762-95704iKM20..LHD..09S198210-198508

LH,*TT,T=4.0

main62762-95705iCM20,KM20..LHD..V4D..VSG197910-198508

LH,*TEM,T=4.0

sub62762-95704

62651AGLASS, SIDE WINDOW, NO.1, REAR (FOR SLIDE TYPE)

main62713-95701iCM20,KM20..RHD..06S198210-198508

RH,*TT,T=4.0

main62713-95702iCM20,KM20,YM20..RHD..V4D..VSG197910-198508

RH,*TEM,T=4.0

sub62713-95701

main62713-95703iKM20,YM21..RHD..(08S,09S)198210-198508

RH,*TT,T=4.0

main62713-95704iKM20,YM21..RHD..(08S,09S)198101-198508

RH,*TEM,T=4.0

sub62713-95703

main62723-95701iKM20..V5D..06S198210-198508

LH,*TT,T=4.0

main62723-95702iCM20,KM20,YM20..RHD..V4D..VSG197910-198508

LH,*TEM,T=4.0

sub62723-95701

main62723-95703iKM20,YM21..RHD..(08S,09S)198210-198508

LH,*TT,T=4.0

main62723-95704iKM20,YM21..RHD..(08S,09S)198101-198508

LH,*TEM,T=4.0

sub62723-95703

main62753-95701iKM20..V5D..06S198210-198508

RH,*TT,T=4.0

main62753-95702iKM20..V5D..VSG197910-198508

RH,*TEM,T=4.0

sub62753-95701

main62753-95703iKM20..LHD..09S198210-198508

RH,*TT,T=4.0

main62753-95704iKM20..LHD..(BUS,WG)197910-198508

RH,*TEM,T=4.0

main62763-95701iCM20,KM20..LHD..V4D..VSG..GEN198210-198508

LH,*TT,T=4.0

main62763-95702iCM20,KM20..LHD..V4D..VSG197910-198508

LH,*TEM,T=4.0

main62763-95703iKM20..LHD..09S198210-198508

LH,*TT,T=4.0

main62763-95704iKM20..LHD..(BUS,WG)197910-198508

LH,*TEM,T=4.0

62691LOCK, SIDE WINDOW, NO.1 GLASS (FOR SLIDE TYPE)

main62791-95A01iKM20..07S,09S197910-198101

LH

sub62791-95A02

main62791-95A01iKM20..07S,09S197910-198101

LH FR;RH RR

sub62791-95A02

main62791-95A02iKM20..05S,06S198101-198110

LH FR;RH RR

sub62910-95702

main62791-95A02iKM20..05S,06S198101-198110

LH

sub62910-95702

main62798-95A00iKM20..07S,09S197910-198101

RH

sub62798-95A01

main62798-95A00iKM20..05S,06S197910-198101

RH FR;LH RR

sub62798-95A01

main62798-95A01iKM20..05S,06S198101-198110

RH FR;LH RR

sub62910-95702

main62798-95A01iKM20..BUS,WG198101-198110

RH

sub62910-95702

main62910-95702iCM20,KM20,YM20..05S,06S198110-198405

main62910-95703iCM20,KM20,YM20..VSG198405-198508

62691APACKING, SIDE WINDOW LOCK, NO.1

main62792-95A00iCM20,KM20,YM20..VSG197910-198508

62691BRETAINER, SIDE WINDOW LOCK, NO.1

main62793-95A00iKM20..07S,09S197910-198101

sub62793-95A01

main62793-95A01iCM20,KM20,YM20..VSG198101-198508

sub62793-95704

62715AGLASS, SIDE WINDOW, NO.2(FOR FIXED TYPE)

main62732-95706iCM20,KM20,YM20..VSG197910-198508

RH,*TEM,T=4.0

sub62732-95709

main62732-95709iCM20,KM20..VSG..(ARL,GEN)198210-198508

RH,*TT,T=4.0

main62742-95700iCM20,KM20,YM20..VSG197910-198508

LH,*TEM,T=4.0

main62742-95703iKM20,YM21..RHD..(08S,09S)198210-198508

LH,*TT,T=4.0

62746WEATHERSTRIP, SIDE WINDOW GLASS CHANNEL, NO.1

main62781-95700iKM20..LHD..(BUS,WG)197910-198508

LH

main62781-95700iCM20,KM20..LHD..V4D..VSG197910-198508

RH

main62781-95701iKM20,YM21..RHD..(08S,09S)198210-198508

RH

main62781-95701iKM20,YM21..RHD..(08S,09S)198210-198508

LH

main62782-95700iKM20..V5D..VSG197910-198508

RH

sub62781-95700

main62782-95700iKM20..RHD..09S197910-198508

LH

sub62781-95700

main62782-95701iKM20..LHD..(08S,09S)198210-198508

LH

sub62781-95701

main62782-95701iKM20,YM21..RHD..(08S,09S)198210-198508

RH

sub62781-95701

62748CHANNEL, SIDE WINDOW GLASS

main62773-95701iCM20,KM20..LHD..V4D..VSG197910-198508

RH

main62773-95701iKM20..RHD..09S197910-198508

LH

main62773-95702iKM20..LHD..(08S,09S)198210-198508

RH

main62773-95702iKM20,YM21..RHD..(08S,09S)198210-198508

LH

main62774-95701iCM20,KM20,YM20..RHD..V4D..VSG197910-198508

LH

main62774-95701iCM20,KM20,YM20..RHD..V4D..VSG197910-198508

RH

main62774-95702iKM20..LHD..(08S,09S)198210-198508

RH

main62774-95702iKM20..LHD..(08S,09S)198210-198508

LH

62751STOP, SIDE WINDOW FIX GLASS

main62751-95661iCM20,KM20,YM20..VSG197910-198508

62755AWEATHERSTRIP, SIDE WINDOW, NO.2(FOR FIXED TYPE)

main62778-95700iKM20,YM21..BUS,WG197910-198508

62761RUN, SIDE WINDOW, NO.1(FOR SLIDE TYPE)

main62714-95701iCM20,KM20..RHD..V4D..VSG197910-198308

RH

sub62714-95705

main62714-95702iKM20..RHD..09S198101-198308

RH

sub62714-95704

main62714-95704iKM20,YM21..RHD..(08S,09S)198308-198508

RH

main62714-95705iCM20,KM20,YM20..RHD..VSG198308-198508

RH

main62724-95700iCM20,KM20..RHD..V4D..VSG197910-198308

LH

sub62724-95704

main62724-95701iKM20..RHD..09S198101-198308

LH

sub62724-95703

main62724-95703iKM20,YM21..RHD..(08S,09S)198308-198508

LH

main62724-95704iCM20,KM20,YM20..RHD..VSG198308-198508

LH

main62754-95701iCM20,KM20..LHD..V4D..(05S,06S)197910-198308

RH

sub62754-95704

main62754-95702iKM20..LHD..(BUS,WG)197910-198308

RH

sub62754-95705

main62754-95704iCM20,KM20..LHD..V4D..VSG198308-198508

RH

main62754-95705iKM20..LHD..(08S,09S)198308-198508

RH

main62764-95701iCM20,KM20..LHD..V4D..(05S,06S)197910-198308

LH

sub62764-95704

main62764-95702iKM20..LHD..(BUS,WG)197910-198308

LH

sub62764-95705

main62764-95704iCM20,KM20..LHD..V4D..VSG198308-198508

LH

main62764-95705iKM20..LHD..(08S,09S)198308-198508

LH

62779PACKING, SIDE WINDOW GLASS, NO.1

main62719-95700iKM20..DLX198108-198210

UPR

main62755-95701iKM20..BUS,WG197910-198508

LWR

sub62755-95702

main62755-95702iKM20,YM21..08S,09S198210-198508

LWR

62779BPACKING, SIDE WINDOW GLASS, NO.2

main62718-95700iCM20,KM20..05S,06S198202-198308

62883GUARD ASSY, SIDE WINDOW

main62894-95700-06iKM20..05S,06S197910-198210

LH,BROWN,BROWN

sub62894-95700

main62894-95701iCM20,KM20,YM20..VSG198210-198508

LH

main62895-95700-06iKM20..05S,06S197910-198210

RH,BROWN,BROWN

sub62895-95700

main62895-95703iCM20,KM20,YM20..VSG198210-198508

RH

9015840002

main90158-40002

9015930005

main90159-30005

9016440050

main90164-40050

9016440051

main90164-40051

9016760001

main90167-60001

9018906002

main90189-06002

25 parts on this diagram · 2 diagrams in section
