SIDE MEMBER

0001 1 0002 1 0003 1 0004 1

61107PILLAR SUB-ASSY, FRONT BODY OUTER, RH

main61103-95706iKM20..RHD;KM20..LHD..SRF..EUR;KM20..HRF..VSP..EUR;KM20..HRF..(05S,07S)197910-198101

sub61103-95710

sub84231-14020

sub90201-10039

main61103-95708iKM20..LHD..GEN197910-198101

sub61103-95711

sub84231-14020

sub90201-10039

main61103-95710iKM20..RHD;KM20..LHD..SRF..EUR;KM20..HRF..VSP..EUR;KM20..HRF..(05S,07S)198101-198106

sub61103-95H00

main61103-95711iKM20..LHD..GEN198101-198106

sub61103-95H01

main61103-95713iCM20,KM20,YM2#..RHD;CM20,KM20..LHD..EUR198106-198508

main61103-95714iCM20,KM20..LHD..GEN198106-198508

61108PILLAR SUB-ASSY, FRONT BODY OUTER, LH

main61104-87402iKM20..TR198101-198106

sub61104-87H00

main61104-87403iKM20..TR198106-198210

sub61104-95H03

main61104-95705iKM20..RHD..(ARL,GEN)197910-198101

sub61104-95712

sub84231-14020

sub90201-10039

main61104-95706iKM20..LHD..V..GEN;KM20..HRF..VSP..EUR;KM20..HRF..(05S,07S);KM20..SRF..(02S,05S,07S,09S)197910-198101

sub61104-95709

sub84231-14020

sub90201-10039

main61104-95708iKM20..RHD..(HRF,SRF)..(ARL,GEN)198101-198106

sub61104-95H00

main61104-95709iKM20..SRF..EUR;KM20..LHD..GEN;KM20..HRF..VSP..EUR;KM20..HRF..(05S,07S)198101-198106

sub61104-95H01

main61104-95713iCM20,KM20,YM2#..RHD..(HRF,SRF)..(ARL,GEN)198106-198508

main61104-95714iKM20..LHD..GEN;CM20,KM20..(02S,05S,07S,08S)..(EUR,GEN)198106-198508

61163PILLAR, FRONT BODY, INNER RH

main61105-95702iKM20..RHD..(ARL,GEN)197910-198210

main61105-95703iKM20..RHD..EUR197910-198210

main61105-95704iCM20,KM20..LHD..GEN197910-198508

main61105-95705iCM20,KM20..LHD..EUR197910-198508

main61105-95709iCM20,KM20,YM2#..RHD198210-198508

61164PILLAR, FRONT BODY, INNER LH

main61106-95702iKM20..RHD..(ARL,GEN)197910-198210

main61106-95703iKM20..LHD..GEN197910-198210

main61106-95704iKM20..RHD..EUR197910-198210

main61106-95705iKM20..4F;KM20..LHD..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)..EUR197910-198210

main61106-95708iCM20,KM20,YM2#..RHD198210-198508

main61106-95709iCM20,KM20..LHD198210-198508

61203RAIL SUB-ASSY, ROOF SIDE, INNER RH

main61205-95702iCM20,KM20..LHD197910-198508

main61231-87403iKM20..TR197910-198210

main61231-95701iCM20,KM20,YM2#..RHD..(HRF,SRF)197910-198508

61204RAIL SUB-ASSY, ROOF SIDE, INNER LH

main61206-95702iKM20..RHD..(HRF,SRF)197910-198210

main61232-87401iKM20..TR197910-198210

main61232-95702iKM20..4F;KM20..LHD..VSP..4H..EUR;KM20..LHD..4H..(03S,05S,06S,07S,09S)197910-198508

61211RAIL, ROOF SIDE, OUTER RH

main61211-87402iKM20..TR197910-198210

main61211-95703iCM20,YM2#..RHD;KM20..RHD..V4D..GEN;KM20..RHD..(02S,05S,09S)197910-198508

main61211-95704iKM20..V5D197910-198508

61212RAIL, ROOF SIDE, OUTER LH

main61212-87402iKM20..TR197910-198210

main61212-95703iKM20..V5D197910-198508

main61212-95704iCM20,KM20..LHD..V4D;KM20..LHD..(BUS,WG)197910-198508

61261CHANNEL, ROOF DRIP, RH

main61223-87401iKM20..TR197910-198210

main61263-95700iCM20,KM20,YM2#..HRF,SRF197910-198508

FR

main61267-95700iCM20,KM20,YM2#..HRF,SRF197910-198508

RR

61262CHANNEL, ROOF DRIP, LH

main61224-87401iKM20..TR197910-198210

main61264-95700iCM20,KM20,YM2#..HRF,SRF197910-198508

FR

main61268-95700iCM20,KM20,YM2#..HRF,SRF197910-198508

RR

61351COVER, CENTER BODY, INNER RH

main61306-95701iKM20..V5D..GEN;KM20..LHD..09S;CM20,KM20..LHD..V4D..GEN197910-198508

main61306-95702iKM20..RHD..HRF..06S198107-198210

NEW ZEALAND SPEC

main61306-95702iKM20..RHD..V4D..(ARL,EUR)197910-198210

main61306-95703iCM20,KM20..LHD..V..EUR197910-198508

main61306-95703iKM20..LHD..V4D..06S198311-198508

PORTUGAL SPEC

main61306-95703iKM20..RHD..V5D..06S198107-198210

NEW ZEALAND SPEC

main61306-95704iKM20..V..4F;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..05S..EUR;KM20..LHD..V..SRF..4H..EUR198103-198508

WEST GERMANY SPEC

main61306-95707iCM20,KM20,YM21..RHD..V4D..(ARL,EUR)198210-198508

main61306-95708iCM20..RHD..GEN;KM20..V4D..SRF..03S;KM20..RHD..(06S,09S)198210-198508

main61347-95702iKM20,YM21..08S197910-198508

main61509-87401iKM20..TR..GEN197910-198210

main61539-87402iKM20..03S..ARL197910-198210

61351AGASKET(FOR CENTER BODY INNER COVER)

main61519-87403iKM20..TR..GEN197910-198210

61352COVER, CENTER BODY, INNER, LH

main61347-95701iCM20,KM20..(HRF,SRF)..GEN197910-198508

main61347-95702iYM20197910-198508

main61347-95702iKM20..RHD..HRF..06S;KM20..RHD..V5D..06S198107-198210

NEW ZEALAND SPEC

main61347-95702iCM20,KM20..LHD..V4D..SRF..02S..EUR198210-198508

WEST GERMANY SPEC

main61347-95702iKM20..LHD..V4D..06S198311-198508

PORTUGAL SPEC

main61347-95703iKM20..WG..STD197910-198508

main61347-95704iKM20..DLX198108-198210

main61347-95708iYM21..08S198311-198508

main61509-87401iKM20..TR..GEN197910-198210

main61539-87402iKM20..03S..ARL197910-198210

61401PANEL SUB-ASSY, FENDER, RH

main61411-95701iCM20,KM20,YM2#197910-198508

61401APANEL SUB-ASSY, FENDER, INNER RH

main61403-87401iKM20..TR197910-198210

main61421-95701iCM20,KM20,YM2#..HRF,SRF197910-198508

61402PANEL SUB-ASSY, FENDER, LH

main61412-95701iCM20,KM20,YM2#197910-198508

61402APANEL SUB-ASSY, FENDER, INNER LH

main61404-87401iKM20..TR197910-198210

main61404-95700iCM20,KM20,YM2#..HRF,SRF198101-198508

main61422-95701iKM20..RHD..V;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S)197910-198101

sub61404-95700

61511PILLAR, QUARTER LOCK, RH

main61501-87401iKM20..TR..GEN197910-198210

main61501-87402iKM20..03S..ARL197910-198210

61512PILLAR, QUARTER LOCK, LH

main61502-87401iKM20..TR..GEN197910-198210

main61502-87402iKM20..03S..ARL197910-198210

61531PANEL, BACK CORNER, INNER RH

main61023-87401iKM20..TR..GEN197910-198210

main61023-87402iKM20..03S..ARL197910-198210

61532PANEL, BACK CORNER, INNER LH

main61024-87401iKM20..TR..GEN197910-198210

main61024-87402iKM20..03S..ARL197910-198210

9004874004

main90048-74004

9018904006

main90189-04006

9046707050

main90467-07050

9095001126

main90950-01126

9095001218

main90950-01218

9354014020

main93540-14020

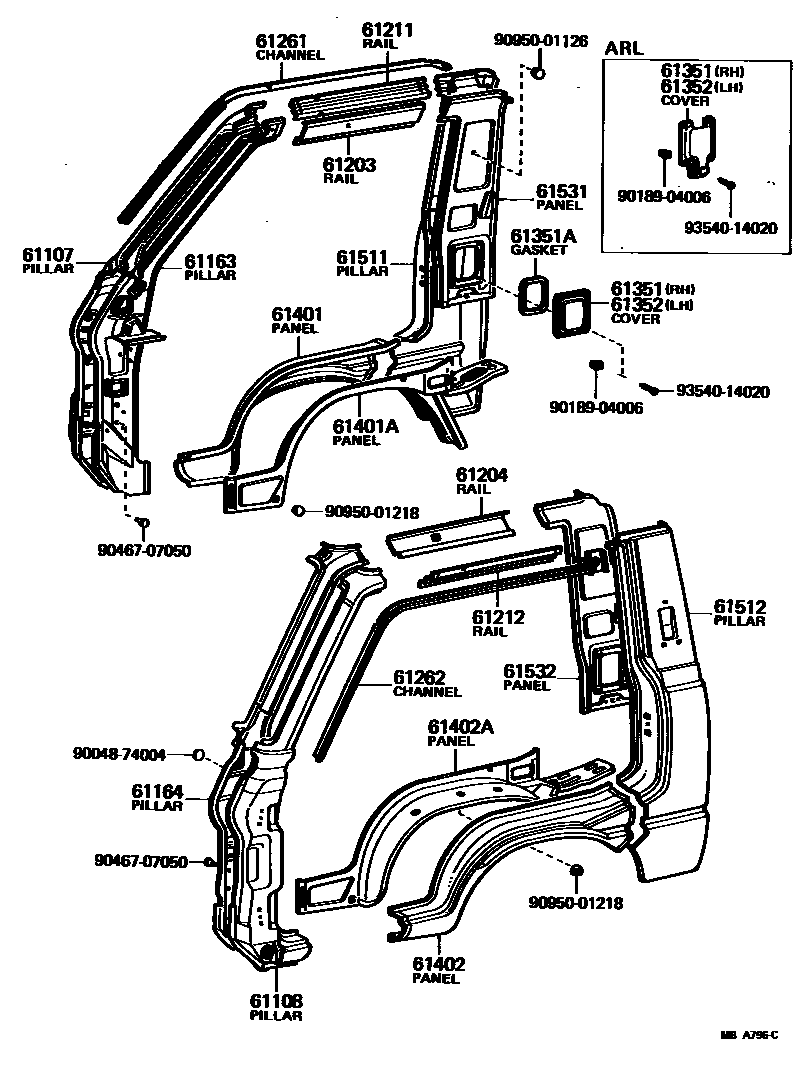

27 parts on this diagram · 4 diagrams in section
