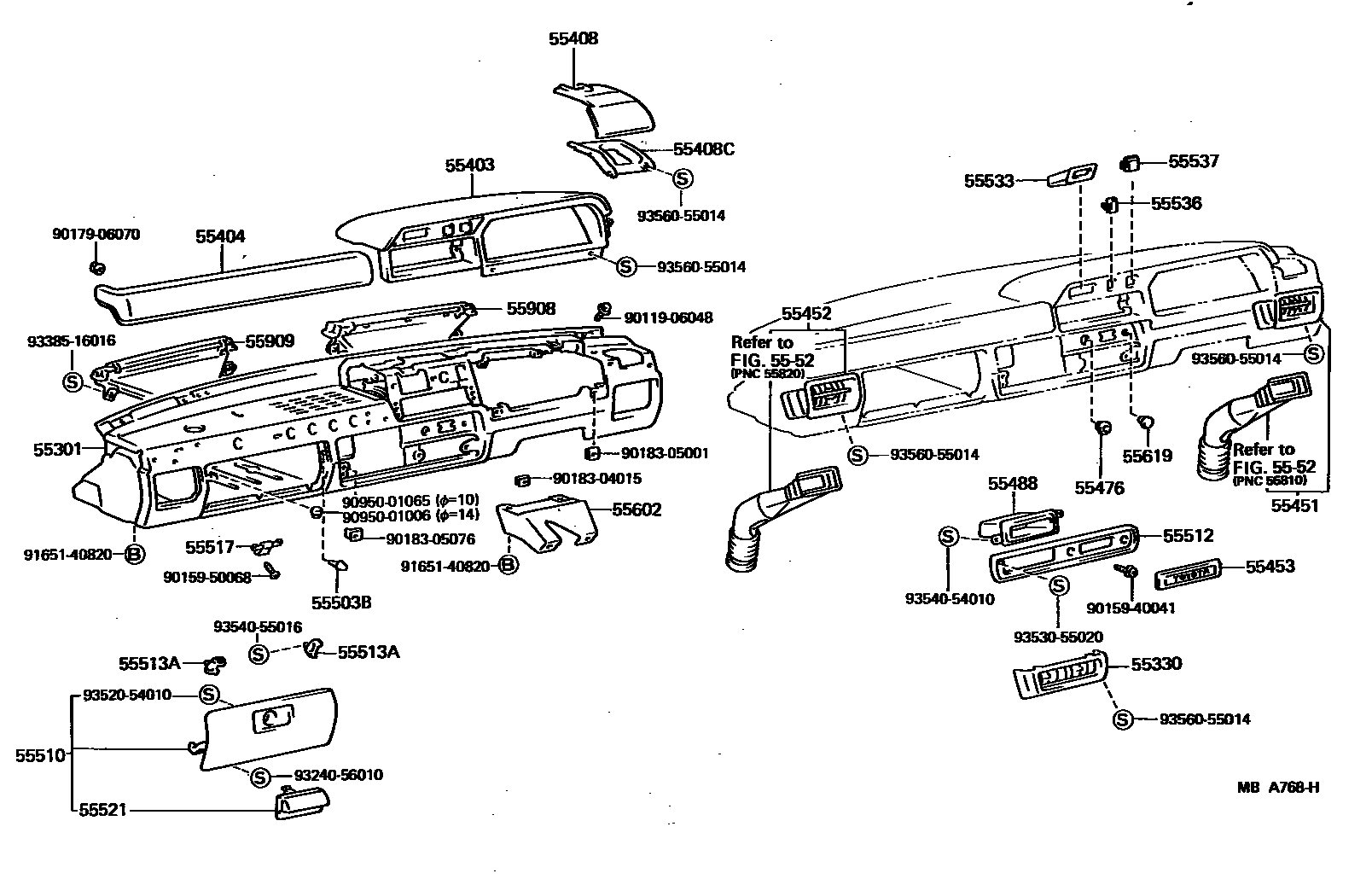

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1

55301PANEL SUB-ASSY, INSTRUMENT

main55301-95709iKM20..RHD197910-198101

main55301-95710iKM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S)197910-198008

main55301-95712iKM20..RHD198101-198210

main55301-95713iCM20,KM20..LHD198101-198508

main55301-95714iKM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S)198008-198101

main55301-95716iCM20,KM20,YM2#..RHD198210-198508

55330LOUVER ASSY, CENTER VENTILATOR

main55460-95701-05iCM20,KM20..LHD198210-198508

BEIGE,BEIGE

sub55460-95701

main55460-95701-06iKM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S197910-198210

BROWN,BROWN

sub55460-95701

55403HOOD SUB-ASSY, METER

main55421-95700iKM20..RHD197910-198004

sub55421-95706

main55421-95701iKM20..4F..STD;KM20..LHD..VSP..4H..EUR;KM20..LHD..4H..(03S,05S,06S,07S,09S)197910-198210

main55421-95701-05iCM20,KM20..LHD198210-198508

BEIGE,BEIGE

main55421-95703-06iKM20..RHD..EUR197910-198210

W/*RWD,*RW,BROWN,BROWN

sub55421-95703

sub55421-95705

main55421-95706iKM20..RHD198004-198210

sub55421-95707

main55421-95708iKM20..DLX198108-198210

55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER

main55401-95700-05iCM20,KM20,YM2#..RHD198210-198508

BEIGE,BEIGE

sub55401-95703

main55404-95701-06iKM20..RHD197910-198210

BROWN,BROWN

sub55404-95701

main55404-95702iKM20..4F;KM20..LHD..VSP..4H..EUR;KM20..LHD..4H..(03S,05S,06S,07S,09S)197910-198210

main55404-95702-05iCM20,KM20..LHD198210-198508

BEIGE,BEIGE

55408DOOR SUB-ASSY, RESERVOIR TANK SERVICE HOLE

main55431-95700-06iKM20..RHD197910-198210

BROWN,BROWN

sub55431-95700

main55431-95701iKM20..4F;KM20..LHD..VSP..4H..EUR;KM20..LHD..4H..(03S,05S,06S,07S,09S)197910-198210

main55431-95701-05iCM20,KM20..LHD198210-198508

BEIGE,BEIGE

main55432-95703iCM20,KM20,YM2#..RHD198210-198508

55408CBASE, RESERVOIR TANK SERVICE HOLE DOOR

main55432-95700-06iKM20..RHD197910-198210

BROWN,BROWN

sub55432-95700

main55432-95701iKM20..4F;KM20..LHD..VSP..4H..EUR;KM20..LHD..4H..(03S,05S,06S,07S,09S)197910-198210

main55432-95701-05iCM20,KM20..LHD198210-198508

BEIGE,BEIGE

55451OUTLET, AIR OUTER, RH

main55408-95702iKM20..4F;KM20..LHD..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)..EUR198010-198210

main55408-95702-05iCM20,KM20..LHD..EUR198210-198508

BEIGE,BEIGE

main55470-95700-05iCM20,KM20..LHD..GEN198210-198508

BEIGE,BEIGE

sub55470-95700

main55470-95700-06iKM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S)197910-198210

BROWN,BROWN

sub55470-95700

55452OUTLET, AIR OUTER, LH

main55408-95701iCM20,KM20..LHD..GEN198302-198508

main55408-95702iKM20..4F;KM20..LHD..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)..EUR198010-198210

main55408-95702-05iCM20,KM20..LHD..EUR198210-198508

BEIGE,BEIGE

main55480-95700-05iCM20,KM20..LHD..GEN198210-198212

BEIGE,BEIGE

sub55480-95700

main55480-95700-06iKM20..RHD;KM20..LHD..GEN197910-198210

BROWN,BROWN

sub55480-95700

main55480-95701iCM20,KM20..LHD..GEN198212-198302

55453COVER, RADIO TUNER OPENING

main55521-95702iCM20,KM20,YM20..RHD..(EUR,GEN)198210-198508

main55522-12050iCM20,KM20..LHD197910-198508

55476COVER, CIGARETTE LIGHTER HOLE

main55532-89102iKM20..V..4F;KM20..02S..ARL;KM20..V..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..05S..EUR;KM20..(03S,06S,07S,08S,09S)..STD198101-198508

main90950-01316iKM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S)197910-198101

55488COVER, STEREO OPENING

main55521-95700-06iKM20..RHD197910-198210

BROWN,BROWN

sub55521-95700

sub55521-95701

main55521-95702iCM20,KM20,YM2#..RHD198210-198508

55503BCUSHION(FOR GLOVE COMPARTMENT)

main90541-04007iKM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S197910-198508

55510DOOR ASSY, GLOVE COMPARTMENT

main55501-95702-05iCM20,KM20..LHD198210-198508

BEIGE,BEIGE

sub55501-95702

main55501-95702-06iKM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S197910-198210

BROWN,BROWN

sub55501-95702

main55501-95705-05iCM20,KM20,YM2#..RHD198210-198508

BEIGE,BEIGE

55512PLATE, RADIO TUNER FINISH

main55411-95704-06iKM20..RHD197910-198210

BROWN,BROWN

sub55411-95704

sub55411-95706

main55411-95705iKM20..4F..STD;KM20..LHD..VSP..4H..EUR;KM20..LHD..4H..(03S,05S,06S,07S,09S)197910-198210

main55411-95705-05iCM20,KM20..LHD198210-198508

BEIGE,BEIGE

sub55411-95705

main55411-95707iKM20..DLX198108-198210

sub55411-95705

main55411-95709-05iCM20,KM20,YM2#..RHD198210-198508

RH,BEIGE,BEIGE

sub55411-95709

main55411-95710iCM20,KM20..LHD..GEN198210-198508

W/STEREO

main55412-95701-05iCM20,KM20,YM2#..RHD198210-198508

LH,BEIGE,BEIGE

sub55412-95701

55513APROTECTOR, GLOVE COMPARTMENT DOOR ARM

main55528-95700-05iCM20,KM20..LHD198210-198508

RH,BEIGE,BEIGE

sub55528-95700

main55528-95700-06iKM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S197910-198210

RH,BROWN,BROWN

sub55528-95700

main55529-95700-05iCM20,KM20..LHD198210-198508

LH,BEIGE,BEIGE

sub55529-95700

main55529-95700-06iKM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S197910-198210

LH,BROWN,BROWN

sub55529-95700

55517STOPPER, GLOVE COMPARTMENT DOOR ARM

main55517-14010iCM20,KM20,YM2#..RHD198210-198508

main55517-95700iKM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S197910-198508

5552

55521KNOB, GLOVE COMPARTMENT DOOR

main55569-95700-05iCM20,KM20..LHD198210-198508

BEIGE,BEIGE

sub55569-95700

main55569-95700-06iKM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S197910-198210

BROWN,BROWN

sub55569-95700

55533COVER, AUTO CLOCK HOLE

main55423-95700iKM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S197910-198508

main55423-95701iCM20,KM20,YM21..RHD198210-198508

55536COVER, REAR WINDOW WIPER SWITCH HOLE

main55548-95700-05iCM20,KM20..RHD198210-198508

BEIGE,BEIGE

sub55548-95700

main90950-01284-01iCM20,KM20..LHD198210-198508

BLACK,BLACK

sub90950-01284

main90950-01284-06iKM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S197910-198210

BROWN,BROWN

sub90950-01284

55537COVER, REAR WINDOW DEFOGGER SWITCH HOLE

main55539-24010-01iYM21..02S198210-198508

BLACK,BLACK

sub55539-32010

sub55539-24010

sub55539-14030

sub55539-20030

main90950-01283iKM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S197910-198508

55602STAY SUB-ASSY, STEERING COLUMN, UPPER

main55602-95700-06iKM20..RHD197910-198210

BROWN,BROWN

sub55602-95700

main55602-95701iKM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S)197910-198210

sub55602-95704

main55602-95701-05iCM20..LHD;KM20..V4D..4F;KM20..LHD..GEN198210-198305

BEIGE,BEIGE

sub55602-95704

main55602-95704iKM20..08S198108-198508

main55602-95705-05iCM20,KM20,YM2#..RHD198210-198508

BEIGE,BEIGE

55619COVER, SWITCH HOLE

main55369-95700iKM20..RHD197910-198210

main55537-95700-01iCM20,KM20..LHD198210-198508

W/O HEATER FAN,BLACK,BLACK

main55537-95700-06iKM20..4F;KM20..LHD..VSP..4H..EUR;KM20..LHD..4H..(03S,05S,06S,07S,09S)198101-198210

BROWN,BROWN

main90950-01337iCM20,KM20..LHD198210-198508

W/O CHOKE

55908NOZZLE SUB-ASSY, DEFROSTER, RH

main55950-95700-05iCM20,KM20..LHD198210-198508

BEIGE,BEIGE

sub55950-95700

main55950-95700-06iKM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S197910-198210

BROWN,BROWN

sub55950-95700

55909NOZZLE SUB-ASSY, DEFROSTER, LH

main55960-95700-05iCM20,KM20..LHD198210-198508

BEIGE,BEIGE

sub55960-95700

main55960-95700-06iKM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S197910-198210

BROWN,BROWN

sub55960-95700

9011906048

main90119-06048

9015940041

main90159-40041

9015950068

main90159-50068

9017906070

main90179-06070

9018304015

main90183-04015

9018305001

main90183-05001

9018305076

main90183-05076

9095001006

main90950-01006

9095001065

main90950-01065

9165140820

main91651-40820

9324056010

main93240-56010

9338516016

main93385-16016

9352054010

main93520-54010

9353055020

main93530-55020

9354054010

main93540-54010

9354055016

main93540-55016

9356055014

main93560-55014

42 parts on this diagram · 3 diagrams in section
