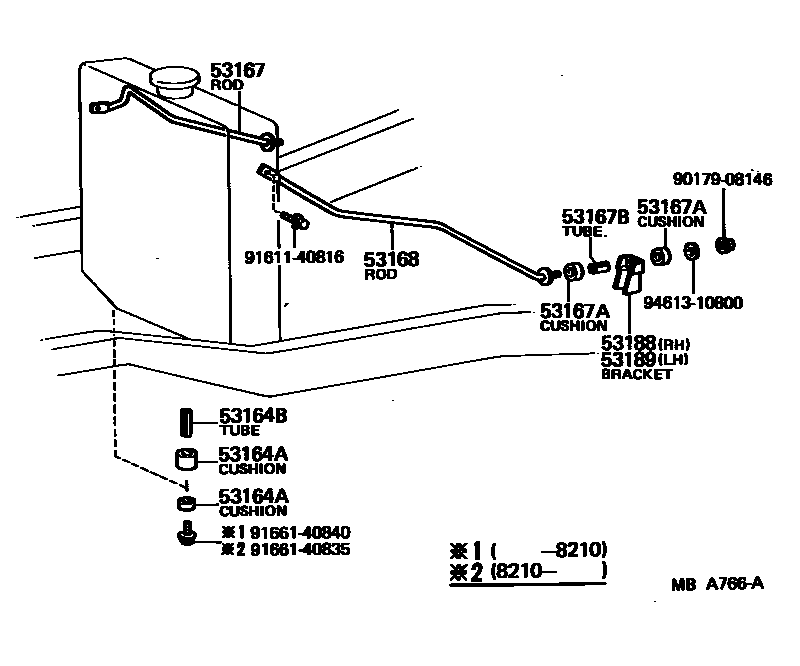

RADIATOR SUPPORT & WIND GUIDE

53164ACUSHION, RADIATOR SUPPORT

main90540-10011iCM20,KM20,YM2#197910-198508

OD=28

main90540-10022iCM20,KM20,YM2#197910-198508

OD=22

53164BTUBE, RADIATOR SUPPORT

main90440-11042iCM20,KM20,YM2#197910-198508

53167ROD, RADIATOR BRACE, RH

main53167-27030iKM20..TR197910-198210

main53167-27040iKM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)197910-198210

53167ACUSHION(FOR RADIATOR BRACE ROD)

main90540-10022iKM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S197910-198210

53167BTUBE(FOR RADIATOR BRACE ROD)

main90440-11043iKM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S197910-198210

53168ROD, RADIATOR BRACE, LH

main53169-27030iKM20..TR197910-198210

main53169-27040iKM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)197910-198210

53188BRACKET, RADIATOR BRACE ROD, RH

main53221-27020iKM20..TR197910-198210

53189BRACKET, RADIATOR BRACE ROD, LH

main53221-27020iKM20..TR197910-198210

9017908146

main90179-08146

9161140816

main91611-40816

9166140835

main91661-40835

9166140840

main91661-40840

9461310800

main94613-10800

13 parts on this diagram · 1 diagram in section
