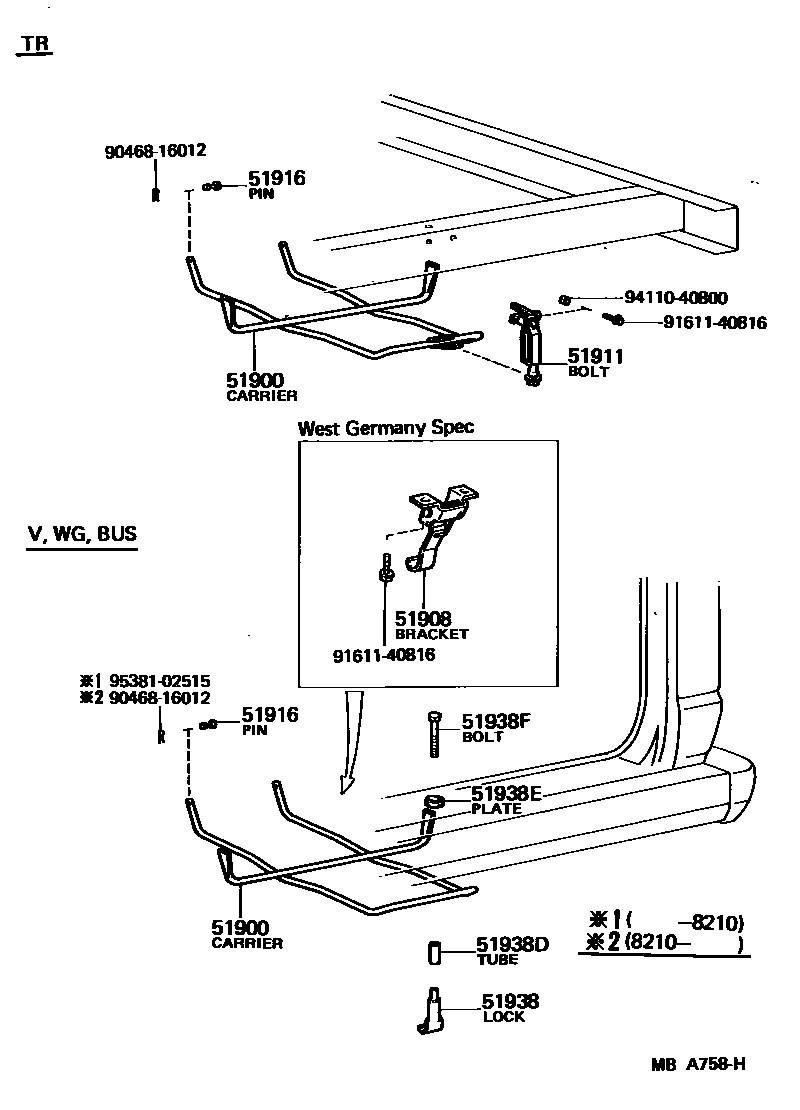

SPARE WHEEL CARRIER

51900CARRIER ASSY, SPARE WHEEL

main51900-27020iKM20..LHD..VSP..EUR;KM20..RHD..(HRF,SRF)..(EUR,GEN);KM20..LHD..(03S,05S,06S,07S,09S)197910-198210

sub51900-27021

main51900-27021iKM20..(HRF,SRF)..(ARL,GEN)198108-198508

sub51900-27210

sub90240-06002

sub90468-16021

sub94612-10601

main51900-27030iKM20..TR197910-198210

sub51900-27220

sub90240-06002

sub90468-16021

sub94612-10601

main51900-27070iCM20,KM20..GEN198105-198508

5.50-13-6PRLTX4JX13X*(D)

sub51900-27210

sub90240-06002

sub90468-16021

sub94612-10601

main51900-27070iKM20..02S..ARL198101-198105

sub51900-27210

sub90240-06002

sub90468-16021

sub94612-10601

51908BRACKET SUB-ASSY, SPARE WHEEL CARRIER

main51908-27020iKM20..08S;CM20,KM20..LHD..V4D..SRF..02S..EUR198104-198508

WEST GERMANY SPEC

51911BOLT ASSY, SPARE WHEEL MOUNTING

main51910-27010iKM20..TR197910-198210

51916PIN, SPARE TIRE CARRIER

main51916-27020iCM20,KM20,YM2#197910-198508

51938LOCK, SPARE WHEEL CARRIER

main51938-13010iCM20,YM21;KM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)197910-198312

sub51938-28020

main51938-28020iCM20,YM2#;KM20..V4D..02S;KM20..03S,05S,06S,08S,09S198312-198508

sub51938-22020

51938DTUBE(FOR SPARE WHEEL CARRIER BOLT)

main90387-12013iCM20,KM20..(HRF,SRF)..(ARL,GEN)197910-198508

main90440-17027iYM2#;CM20,KM20..EUR197910-198508

51938EPLATE, SPARE WHEEL CARRIER LOCK

main51937-26010iKM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)197910-198508

51938FBOLT(FOR SPARE WHEEL CARRIER LOCK)

main90101-12009iYM2#;CM20,KM20..EUR197910-198508

main90101-12057iCM20,KM20..(HRF,SRF)..(ARL,GEN)197910-198508

9046816012

main90468-16012

9161140816

main91611-40816

9411040800

main94110-40800

9538102515

main95381-02515

12 parts on this diagram · 1 diagram in section
