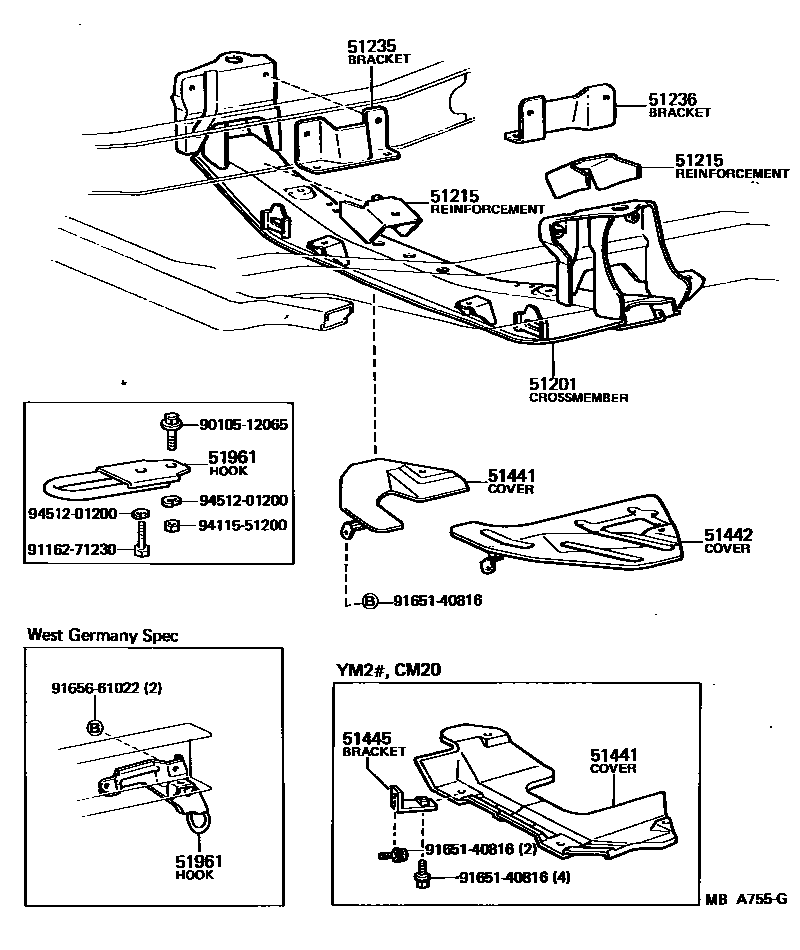

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51203-27020iKM20..TR197910-198210

sub51203-27021

main51203-27030iKM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)197910-198210

sub51203-27031

main51203-27031iKM20198210-198508

main51203-27042iCM20,YM2#198210-198508

51215REINFORCEMENT, FRONT SUSPENSION CROSSMEMBER

main51215-27040iCM20,KM20,YM2#197910-198508

51235BRACKET, FRONT SUSPENSION CROSSMEMBER, RH

main51225-27020iKM20..TR197910-198210

main51225-27030iCM20,KM20,YM2#..HRF,SRF197910-198508

51236BRACKET, FRONT SUSPENSION CROSSMEMBER, LH

main51226-27020iKM20..TR197910-198210

main51226-27030iCM20,KM20,YM2#..HRF,SRF197910-198508

51441COVER, ENGINE UNDER, NO.1

main51405-27020iYM2#198311-198508

main51405-27030iCM20198210-198508

sub51405-27031

main51408-27010iKM20..RHD197910-198508

main51408-27020iKM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S)197910-198108

sub51408-27021

main51408-27021iKM20..LHD198108-198508

51442COVER, ENGINE UNDER, NO.2

main51409-27020iKM20..RHD197910-198508

main51409-27030iKM20..LHD197910-198508

51445BRACKET, ENGINE UNDER COVER

main51445-27040iCM20,YM2#198210-198508

51961HOOK, NO.1

main51961-27010iCM20,KM20..EUR198210-198508

main51965-27020iKM20..4F..STD;KM20..LHD..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)..EUR198104-198508

WEST GERMANY SPEC

9010512065

main90105-12065

9116271230

main91162-71230

9165140816

main91651-40816

9165661022

main91656-61022

9411551200

main94115-51200

9451201200

main94512-01200

14 parts on this diagram · 1 diagram in section
