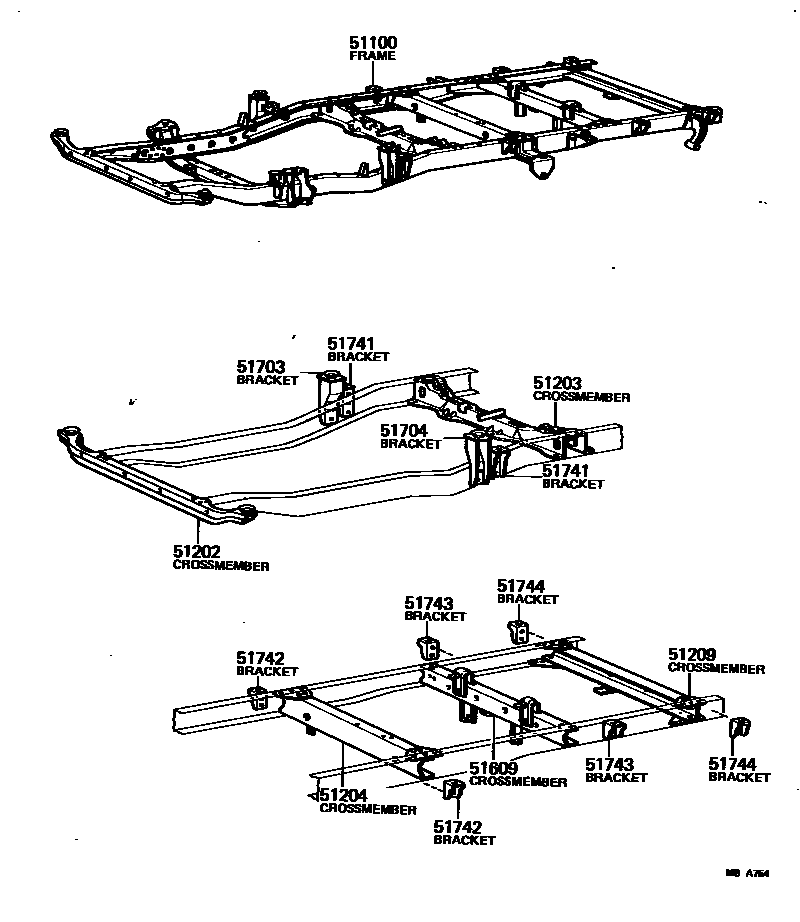

FRAME
51100FRAME ASSY
51202CROSSMEMBER SUB-ASSY, FRAME, NO.1
51203CROSSMEMBER SUB-ASSY, FRAME, NO.2
sub51204-27041
51204CROSSMEMBER SUB-ASSY, FRAME, NO.3
sub51205-27041
51209CROSSMEMBER SUB-ASSY, FRAME, NO.8
51609CROSSMEMBER SUB-ASSY, REAR SHOCK ABSORBER SUPPORT
51703BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH
sub51705-27021
51704BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH
sub51706-27021
51741BRACKET, REAR BODY MOUNTING, NO.1
51742BRACKET, BODY MOUNTING, NO.2
51743BRACKET, BODY MOUNTING, NO.3
51744BRACKET, BODY MOUNTING, NO.4
12 parts on this diagram · 1 diagram in section
