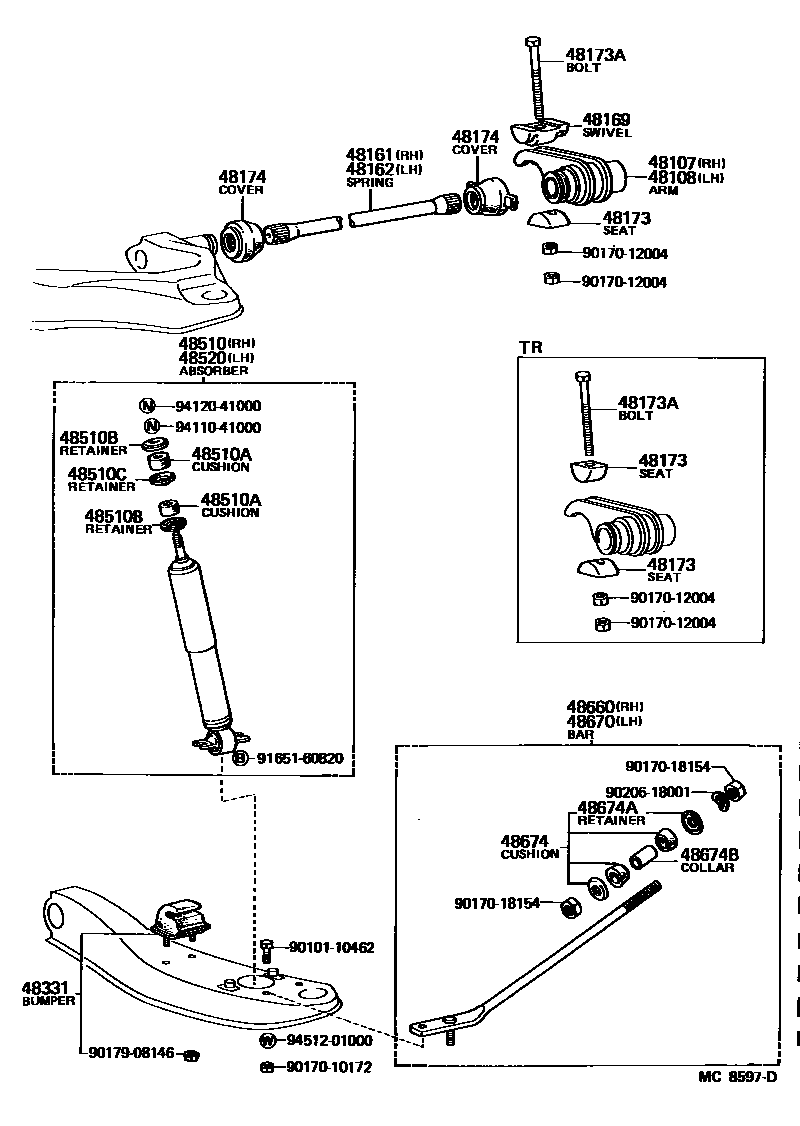

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0005 1

48107ARM SUB-ASSY, ANCHOR, RH

main48107-27010iKM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S197910-198210

sub48107-27011

main48107-27011iCM20,KM20,YM2#198210-198508

48108ARM SUB-ASSY, ANCHOR, LH

main48108-27010iKM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S197910-198210

sub48108-27011

main48108-27011iCM20,KM20,YM2#198210-198508

48161SPRING, TORSION BAR, RH

main48161-27010iKM20..TR197910-198210

main48161-27020iYM21;CM20,KM20,YM20..BUS,V197910-198508

main48161-27060iKM20..07S198101-198108

main48161-27061iKM20..08S198108-198508

48162SPRING, TORSION BAR, LH

main48162-27010iKM20..TR197910-198210

main48162-27020iYM21;CM20,KM20,YM20..BUS,V197910-198508

main48162-27060iKM20..07S198101-198108

main48162-27061iKM20..08S198108-198508

48169SWIVEL, ANCHOR ARM

main48169-27010iKM20..VSP..02S;KM20..(HRF,SRF)..(03S,05S,06S,07S,08S,09S)197910-198210

main48169-27011iCM20,KM20,YM2#198210-198508

48173SEAT, ANCHOR ARM ADJUSTER

main48173-27010iKM20..TR197910-198508

48173ABOLT, HEXAGON(FOR ANCHOR ARM ADJUSTING)

main90101-12059iCM20,KM20,YM2#197910-198508

48174COVER, TORSION BAR DUST

main48174-27010iCM20,KM20,YM2#197910-198508

FR

main48175-27010iCM20,KM20,YM2#197910-198508

RR

48331BUMPER, FRONT SPRING, NO.1

main48331-29045iCM20,KM20,YM2#197910-198508

sub48331-27030

48510ABSORBER ASSY, SHOCK, FRONT RH

main48500-29245iKM20..TR197910-198210

sub48500-29246

main48500-29255iCM20,KM20,YM2#..HRF,SRF197910-198508

sub48500-29245

48510ACUSHION, FRONT SHOCK ABSORBER

main90948-01003iCM20,KM20,YM2#197910-198508

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-02002iCM20,KM20,YM2#197910-198508

48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)

main90948-02007iCM20,KM20,YM2#197910-198508

48520ABSORBER ASSY, SHOCK, FRONT LH

main48500-29245iKM20..TR197910-198210

sub48500-29246

main48500-29255iCM20,KM20,YM2#..HRF,SRF197910-198508

sub48500-29245

48660BAR ASSY, STRUT, RH

main48660-28010iCM20,KM20,YM2#198210-198508

main48660-29075iKM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S197910-198210

48670BAR ASSY, STRUT, LH

main48670-28010iCM20,KM20,YM2#198210-198508

main48670-29075iKM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S197910-198210

48674CUSHION, STRUT BAR

main48674-29026iCM20,KM20,YM2#197910-198508

48674ARETAINER, CUSHION(FOR STRUT BAR CUSHION)

main90948-02030iCM20,KM20,YM2#197910-198508

48674BCOLLAR(FOR STRUT BAR CUSHION)

main90387-18090iCM20,KM20,YM2#197910-198508

9010110462

main90101-10462

9017010172

main90170-10172

9017012004

main90170-12004

9017018154

main90170-18154

9017908146

main90179-08146

9020618001

main90206-18001

9165160820

main91651-60820

9411041000

main94110-41000

9412041000

main94120-41000

9451201000

main94512-01000

29 parts on this diagram · 4 diagrams in section
