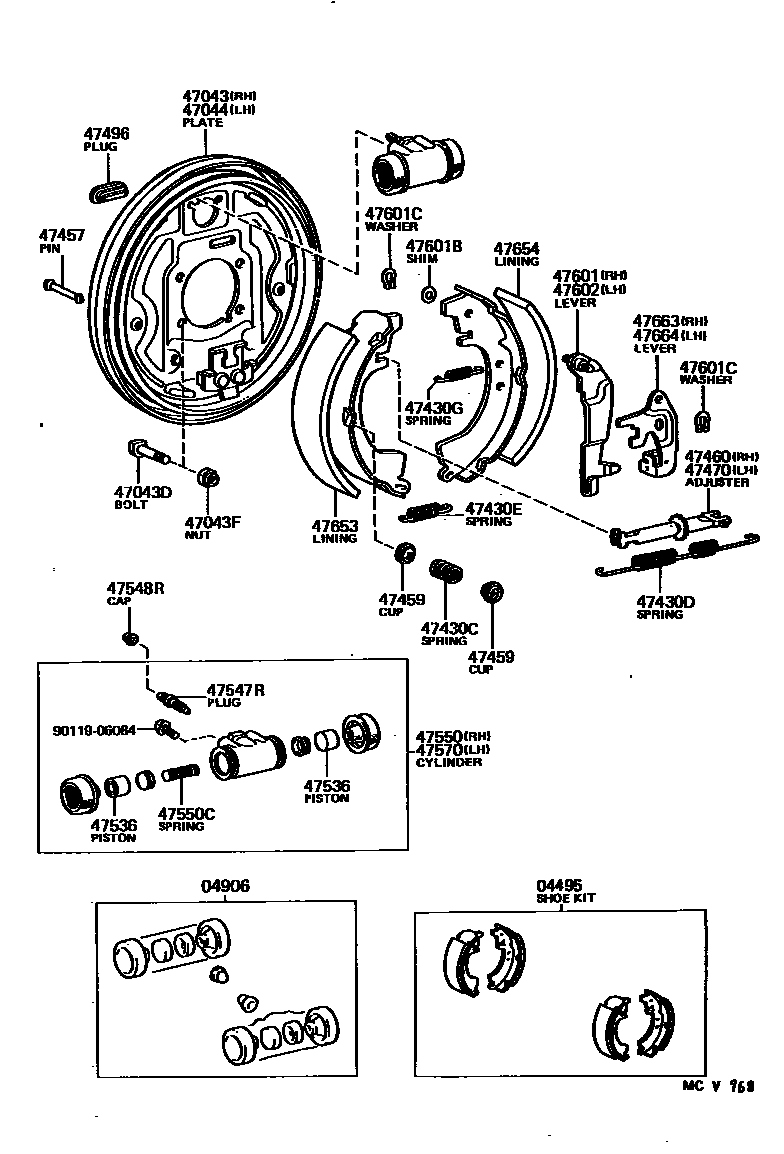

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04495SHOE KIT, REAR BRAKE

main04495-20050iKM20..EUR197910-198508

FR DISC BRAKE

sub04495-20051

main04495-20080iKM20..BUS,TR,V197910-198508

FR DRUM BRAKE

sub04495-20081

main04495-22030iKM20..08S198108-198508

FR DISC BRAKE

sub04495-22031

04906CUP KIT, REAR WHEEL CYLINDER

main04906-12030iCM20,KM20..GEN197910-198508

ID=19.05 WHEEL CYLINDER

main04906-12040iCM20,KM20,YM2#197910-198508

ID=20.64 WHEEL CYLINDER

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-27020iCM20..EUR;KM20..HRF..EUR;KM20..SRF..08S;KM20..V4D..SRF..EUR198311-198508

sub47043-27040

main47043-28020iCM20;KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S197910-198508

sub47043-28040

sub47492-28010

47043DBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main42184-22011iCM20,KM20,YM2#197910-198508

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main94181-11000iCM20,KM20,YM2#197910-198508

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-27020iCM20..EUR;KM20..HRF..EUR;KM20..SRF..08S;KM20..V4D..SRF..EUR198311-198508

sub47044-27040

main47044-28020iCM20;KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S197910-198508

sub47044-28040

sub47492-28010

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-18017iCM20,KM20,YM2#197910-198508

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-23375iCM20,KM20,YM2#197910-198508

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-23346iCM20,KM20,YM2#197910-198508

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12011iCM20,KM20,YM2#197910-198508

47457PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-20030iCM20,KM20,YM2#197910-198508

47459CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020iCM20,KM20,YM2#197910-198508

47460ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)

main47061-14021iCM20,KM20,YM2#197910-198508

47470ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)

main47062-14021iCM20,KM20,YM2#197910-198508

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011iCM20,KM20,YM2#197910-198508

47536PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)

main47051-22031iKM20..VSP..02S;KM20..03S,05S,06S,08S197910-198508

ID=19.05 WHEEL CYLINDER

main47051-22040iKM20..VSP..02S;KM20..03S,05S,06S,09S197910-198508

ID=20.64 WHEEL CYLINDER

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010iCM20,KM20,YM2#197910-198508

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iCM20,KM20,YM2#197910-198508

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-19125iKM20..VSP..EUR;KM20..(03S,05S,06S,07S,08S)..(EUR,GEN)197910-198508

ID=19.05

main47550-19135iKM20..VSP..02S;KM20..03S,05S,06S,09S197910-198508

ID=20.64

sub47550-12060

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main47509-12010iKM20..VSP..02S;KM20..03S,05S,06S,08S197910-198508

ID=19.05 WHEEL CYLINDER

main47509-12020iCM20,KM20,YM2#197910-198508

ID=20.64 WHEEL CYLINDER

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-19125iCM20,KM20..GEN197910-198508

ID=19.05

main47550-19135iCM20,KM20,YM2#197910-198508

ID=20.64

sub47550-12060

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-14010iCM20,KM20,YM2#197910-198508

47601BSHIM, REAR PARKING BRAKE SHOE LEVER

main90564-08150iCM20,KM20,YM2#197910-198508

T=0.3,T=0.3

main90564-08151iCM20,KM20,YM2#197910-198508

T=0.6,T=0.6

main90564-08152iCM20,KM20,YM2#197910-198508

T=0.9,T=0.9

main90564-08172iCM20,KM20,YM2#197910-198508

T=0.2,T=0.2

main90564-08173iCM20,KM20,YM2#198210-198508

T=0.4,T=0.4

main90564-08174iCM20,KM20,YM2#198210-198508

T=0.5,T=0.5

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013iCM20,KM20,YM2#197910-198508

T=1.2

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-14010iCM20,KM20,YM2#197910-198508

47653LINING, REAR BRAKE SHOE(FOR FRONT OR UPPER)

main47651-22020iKM20..ARL197910-198508

FR DISC BRAKE

main47651-22030iKM20..08S198108-198508

FR DISC BRAKE

main47655-20160iCM20,KM20..GEN197910-198508

FR DRUM BRAKE

47654LINING, REAR BRAKE SHOE(FOR REAR OR LOWER)

main47651-22020iKM20..SRF..EUR;KM20..HRF..VSP..EUR;KM20..HRF..(05S,07S)197910-198508

FR DISC BRAKE

main47651-22030iKM20..08S198108-198508

FR DISC BRAKE

main47655-20160iKM20..VSP..02S;KM20..03S,05S,06S,09S197910-198508

FR DRUM BRAKE

47663LEVER, AUTOMATIC ADJUST, RH(FOR REAR BRAKE)

main47643-20020iCM20,KM20,YM2#197910-198508

47664LEVER, AUTOMATIC ADJUST, LH(FOR REAR BRAKE)

main47644-20020iCM20,KM20,YM2#197910-198508

9011906084

main90119-06084

30 parts on this diagram · 1 diagram in section
