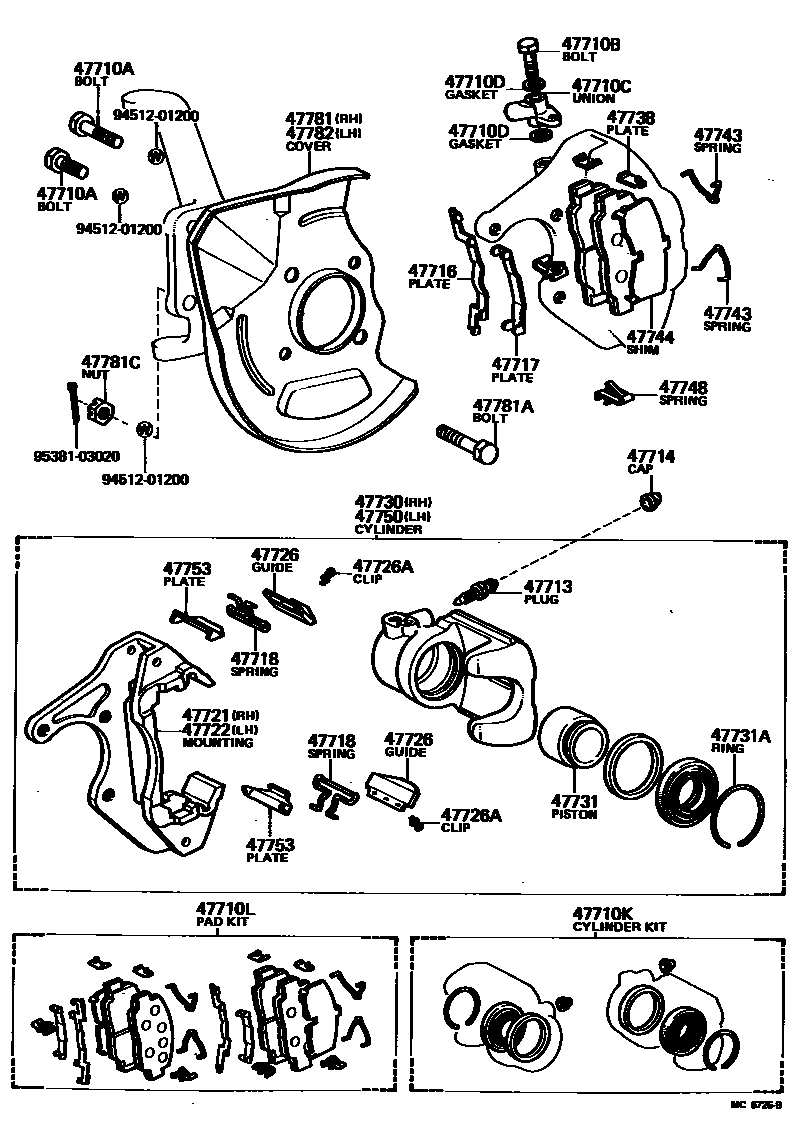

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0004 1 0005 1

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-12010iCM20,YM2#;KM20..V4D..02S;KM20..03S,05S,06S,08S,09S198505-198508

*12-1.25PX50-26,L=50

main90101-12018iKM20..SRF..EUR;KM20..HRF..VSP..EUR;KM20..HRF..(05S,07S)197910-198004

L=30

sub90119-12068

main90101-12019iKM20..RHD..09S197910-198210

L=50

main90101-12030iCM20,KM20,YM2#198210-198508

*12-1.25PX31-20,L=30

main90101-12063iKM20..VSP..02S;KM20..(03S,05S,08S)..(ARL,EUR)198004-198210

L=30

sub90101-12018

main90101-12077iCM20,KM20,YM2#198210-198505

L=50

47710BBOLT, UNION(FOR FRONT DISC BRAKE CALIPER)

main90401-10009iKM20..VSP..02S;KM20..(03S,05S,08S)..(ARL,EUR)197910-198210

47710CUNION(FOR FRONT DISC BRAKE CALIPER)

main90404-10014iKM20..4F;KM20..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)197910-198210

RH

main90404-10015iKM20..4F;KM20..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)197910-198210

LH

47710DGASKET(FOR FRONT DISC BRAKE CALIPER UNION)

main90430-10074iKM20..VSP..02S;KM20..(03S,05S,08S)..(ARL,EUR)197910-198210

47710KCYLINDER KIT, DISC BRAKE, FRONT

main04479-14020iKM20..RHD..09S197910-198210

main04479-14070iCM20,KM20,YM2#198210-198508

47710LPAD KIT, DISC BRAKE, FRONT

main04491-27010iKM20..4F;KM20..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)197910-198210

sub04465-27070

main04491-28020iCM20,KM20,YM2#198210-198508

sub04491-28022

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12020iKM20..4F;KM20..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)197910-198210

main47547-20010iCM20,KM20,YM2#198210-198508

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iKM20..4F;KM20..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)197910-198508

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-27010iKM20..RHD..09S197910-198210

main47716-28010iCM20,KM20,YM2#198210-198508

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-14050iCM20,KM20,YM2#198210-198508

RH

main47717-27010iKM20..4F;KM20..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)197910-198210

main47718-14090iCM20,KM20,YM2#198210-198508

LH

47718SPRING, FRONT DISC BRAKE CYLINDER SUPPORT

main47718-27010iKM20..RHD..09S197910-198210

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-27010iKM20..SRF..EUR;KM20..HRF..VSP..EUR;KM20..HRF..(05S,07S)197910-198101

sub47721-27011

main47721-27011iKM20..4F;KM20..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)198101-198210

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-27010iKM20..SRF..EUR;KM20..HRF..VSP..EUR;KM20..HRF..(05S,07S)197910-198101

sub47722-27011

main47722-27011iKM20..RHD..09S198101-198210

47726GUIDE, FRONT DISC BRAKE CYLINDER

main47726-27010iKM20..SRF..EUR;KM20..HRF..VSP..EUR;KM20..HRF..(05S,07S)197910-198101

sub47726-27011

main47726-27011iKM20..RHD..09S198101-198210

47726ACLIP(FOR FRONT DISC BRAKE CYLINDER)

main90468-12134iKM20..RHD..09S197910-198210

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-27010iKM20..SRF..EUR;KM20..HRF..VSP..EUR;KM20..HRF..(05S,07S)197910-198101

sub47730-27011

main47730-27011iKM20..4F;KM20..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)198101-198210

main47730-28010iCM20;KM20..VSP..02S;KM20..03S,05S,06S,08S,09S198210-198212

sub47730-28011

main47730-28011iCM20;KM20..V4D..VSP..02S;KM20..03S,05S,06S,08S,09S198212-198308

sub47730-28012

main47730-28012iCM20,YM2#;KM20..V4D..02S;KM20..03S,05S,06S,08S,09S198308-198508

47731PISTON, FRONT DISC BRAKE

main47731-14020iKM20..4F;KM20..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)197910-198210

main47731-14090iCM20,KM20,YM2#198210-198508

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-62001iKM20..RHD..09S197910-198210

main90522-69002iCM20,KM20,YM2#198210-198508

47738PLATE, DISC BRAKE PAD GUIDE, NO.2

main47736-27010iKM20..RHD..09S197910-198210

47743SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE)

main47743-14040iCM20,KM20,YM2#198210-198508

main47743-27010iKM20..VSP..02S;KM20..(03S,05S,08S)..(ARL,EUR)197910-198210

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-20030iKM20..4F;KM20..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)197910-198210

main47744-28010iCM20,KM20,YM2#198210-198508

sub47744-28020

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-14050iCM20,KM20,YM2#198210-198508

main47748-27010iKM20..RHD..09S197910-198210

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-27010iKM20..SRF..EUR;KM20..HRF..VSP..EUR;KM20..HRF..(05S,07S)197910-198101

sub47750-27011

main47750-27011iKM20..4F;KM20..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)198101-198210

main47750-28010iCM20;KM20..VSP..02S;KM20..03S,05S,06S,08S,09S198210-198212

sub47750-28011

main47750-28011iCM20;KM20..V4D..VSP..02S;KM20..03S,05S,06S,08S,09S198212-198308

sub47750-28012

main47750-28012iCM20,YM2#;KM20..V4D..02S;KM20..03S,05S,06S,08S,09S198308-198508

47753PLATE, CYLINDER GUIDE

main47753-14020iKM20..4F;KM20..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)197910-198210

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-27020iKM20..SRF..EUR;KM20..HRF..VSP..EUR;KM20..HRF..(05S,07S)197910-198101

main47781-27021iKM20..4F;KM20..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)198101-198210

main47781-28030iCM20,KM20,YM2#198210-198508

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90102-12001iKM20..4F;KM20..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)197910-198508

47781CNUT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main94145-71200iKM20..4F;KM20..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)197910-198508

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-27020iKM20..SRF..EUR;KM20..HRF..VSP..EUR;KM20..HRF..(05S,07S)197910-198101

main47782-27021iKM20..4F;KM20..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)198101-198210

main47782-28030iCM20,KM20,YM2#198210-198508

9451201200

main94512-01200

9538103020

main95381-03020
