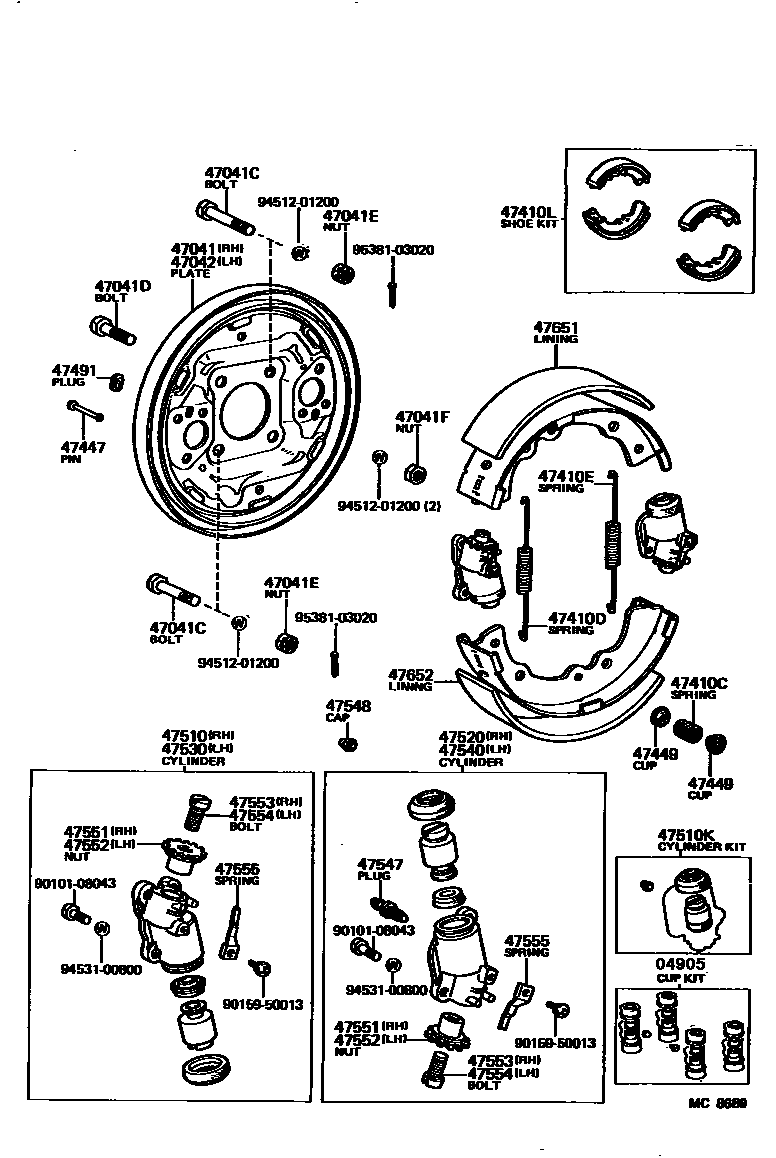

FRONT DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04905CUP KIT, FRONT WHEEL CYLINDER

main04905-20040iKM20..BUS,TR,V197910-198508

47041PLATE SUB-ASSY, BRAKE BACKING, FRONT RH

main47041-27020iKM20..VSP..02S;KM20..03S,05S,06S,09S197910-198210

sub47041-28H00

main47041-28040iCM20,KM20..GEN198210-198508

47041CBOLT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING)

main90102-12001iCM20,KM20..GEN197910-198508

*12-1.25PX58-23,L=65

main90102-12044iKM20..VSP..02S;KM20..03S,05S,06S,09S197910-198210

L=69.5

47041DBOLT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING)

main90101-12060iCM20,KM20..GEN198210-198508

main91171-71235iKM20..VSP..02S;KM20..03S,05S,06S,09S197910-198210

47041ENUT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING)

main94145-71200iKM20..VSP..02S;KM20..03S,05S,06S,09S197910-198508

47041FNUT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING)

main94115-51200iKM20..VSP..02S;KM20..03S,05S,06S,09S197910-198210

main94115-71200iCM20,KM20..GEN198210-198508

47042PLATE SUB-ASSY, BRAKE BACKING, FRONT LH

main47042-27020iKM20..VSP..02S;KM20..03S,05S,06S,09S197910-198210

sub47042-28H00

main47042-28040iCM20,KM20..GEN198210-198508

47410CSPRING(FOR FRONT BRAKE SHOE HOLD DOWN)

main90501-18017iKM20..VSP..02S;KM20..03S,05S,06S,09S197910-198508

47410DSPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)

main90506-20014iKM20..VSP..02S;KM20..03S,05S,06S,09S197910-198508

47410ESPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)

main90506-20014iCM20,KM20..GEN197910-198508

47410LSHOE KIT, FRONT BRAKE

main04494-20110iKM20..VSP..02S;KM20..03S,05S,06S,09S197910-198508

sub04494-20130

47447PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)

main47447-30010iCM20,KM20..GEN198210-198508

main47447-30020iKM20..VSP..02S;KM20..03S,05S,06S,09S197910-198210

47449CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)

main47449-30020iKM20..VSP..02S;KM20..03S,05S,06S,09S197910-198508

47491PLUG, HOLE(FOR FRONT BRAKE)

main47491-20020iCM20,KM20..GEN197910-198508

47510CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER)

main47520-29125iKM20..VSP..02S;KM20..03S,05S,06S,09S197910-198508

ID=23.81

sub47520-27040

47510KCYLINDER KIT, FRONT WHEEL

main04473-27010iKM20..VSP..02S;KM20..03S,05S,06S,09S197910-198508

47520CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER)

main47510-29205iKM20..VSP..02S;KM20..03S,05S,06S,09S197910-198508

ID=23.81

sub47510-27040

47530CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER)

main47540-29125iKM20..VSP..02S;KM20..03S,05S,06S,09S197910-198508

ID=23.81

sub47540-27040

47540CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER)

main47530-29205iKM20..VSP..02S;KM20..03S,05S,06S,09S197910-198508

ID=23.81

sub47530-27040

47547PLUG, BLEEDER(FOR FRONT DRUM BRAKE)

main47547-12010iKM20..VSP..02S;KM20..03S,05S,06S,09S197910-198508

47548CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT)

main31478-30010iKM20..VSP..02S;KM20..03S,05S,06S,09S197910-198508

47551NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)

main47551-20010iKM20..VSP..02S;KM20..03S,05S,06S,09S197910-198508

LH SCREW

47552NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)

main47552-20010iKM20..VSP..02S;KM20..03S,05S,06S,09S197910-198508

RH SCREW

47553BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)

main47553-20010iKM20..VSP..02S;KM20..03S,05S,06S,09S197910-198508

LH SCREW

47554BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)

main47554-20010iKM20..VSP..02S;KM20..03S,05S,06S,09S197910-198508

RH SCREW

47555SPRING, ADJUSTER LOCK(FOR FRONT BRAKE)

main47555-20011iKM20..VSP..02S;KM20..03S,05S,06S,09S197910-198508

47651LINING, FRONT BRAKE SHOE(FOR FRONT OR UPPER)

main47651-20120iKM20..VSP..02S;KM20..03S,05S,06S,09S197910-198508

47652LINING, FRONT BRAKE SHOE(FOR REAR OR LOWER)

main47651-20120iKM20..VSP..02S;KM20..03S,05S,06S,09S197910-198508

9010108043

main90101-08043

9015950013

main90159-50013

9451201200

main94512-01200

9453100800

main94531-00800

9538103020

main95381-03020

33 parts on this diagram · 1 diagram in section
