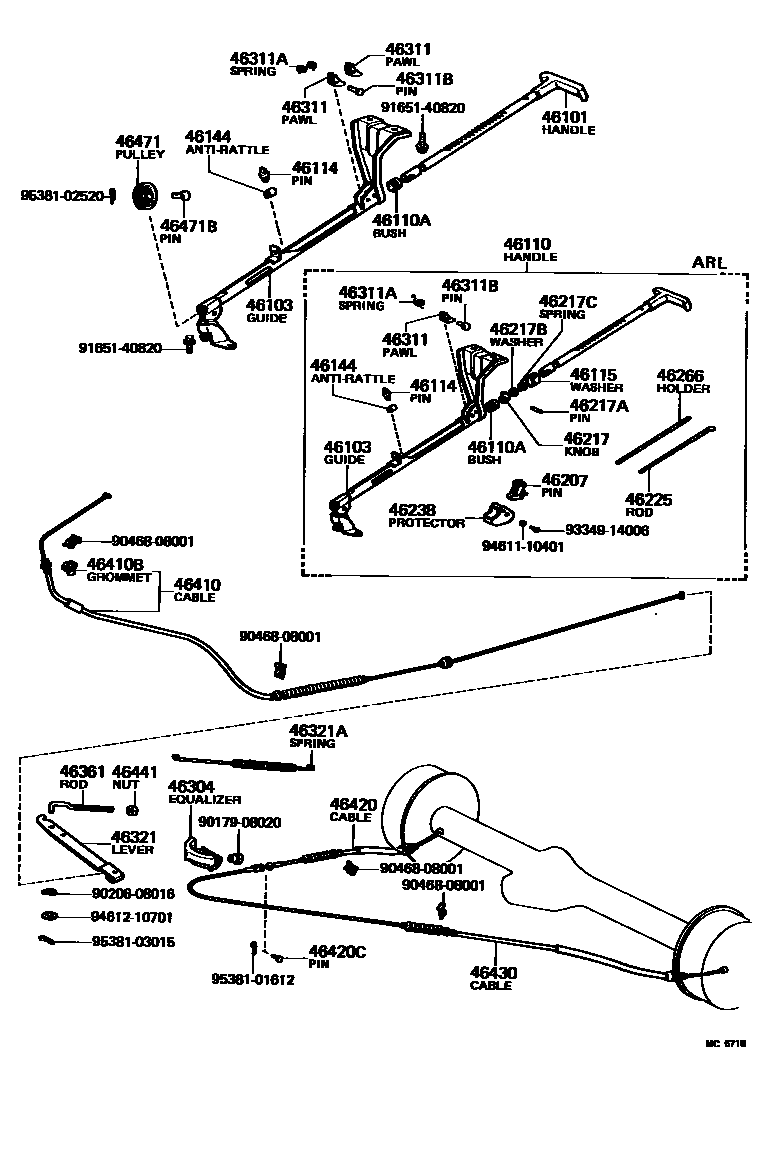

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1 0004 1

46101HANDLE SUB-ASSY, PARKING BRAKE CONTROL

main46101-26030iCM20,KM20..RHD..(EUR,GEN)197910-198405

main46101-26041iKM20..4F;CM20..LHD;KM20..LHD..VSP..4H..EUR;KM20..LHD..4H..(03S,05S,06S,07S,09S)197910-198405

main46101-26050iYM20;CM20,KM20,YM21..ARL197910-198405

main46101-26050iKM20..HRF..06S198308-198405

NEWZEALAND SPEC

main46120-26040iCM20..LHD;KM20..LHD..HRF;KM20..V4D..SRF..4F..02S;KM20..LHD..SRF..(03S,05S,06S,08S,09S)198405-198508

main46120-27010iCM20,KM20,YM2#..RHD198405-198508

46103GUIDE SUB-ASSY, PARKING BRAKE PLUNGER

main46103-27020iKM20..RHD..(EUR,GEN)197910-198210

main46103-27021iCM20,KM20..RHD..(EUR,GEN)198210-198508

main46103-27030iKM20..ARL197910-198210

main46103-27031iCM20,KM20,YM2#..RHD..(02S,05S,08S)..(ARL,GEN)198210-198405

main46103-27031iKM20..HRF..06S198308-198405

NEWZEALAND SPEC

main46103-27040iCM20,KM20..LHD197910-198508

46110HANDLE ASSY, PARKING BRAKE CONTROL

main46104-27010iKM20..ARL197910-198210

main46104-27011iCM20,KM20,YM2#..RHD..(02S,05S,08S)..(ARL,GEN)198210-198405

main46104-27011iKM20..HRF..06S198308-198405

NEWZEALAND SPEC

46110ABUSH OR RING, O (FOR PARKING BRAKE PLUNGER)

main90386-12048iCM20,KM20,YM2#197910-198508

46114PIN, PARKING BRAKE PLUNGER

main46114-20010iCM20,KM20,YM2#197910-198508

46115WASHER, PARKING BRAKE PLUNGER

main46115-35010iYM20;CM20,KM20,YM21..ARL197910-198405

sub46115-36010

main46115-35010iKM20..HRF..06S198308-198405

NEWZEALAND SPEC

sub46115-36010

46144ANTI-RATTLE, PARKING BRAKE PLUNGER

main46144-20010iCM20,KM20,YM2#197910-198508

46207PIN SUB-ASSY, PLUNGER LOCK

main46207-35010iYM20;CM20,KM20,YM21..ARL197910-198405

main46207-35010iKM20..HRF..06S198308-198405

NEWZEALAND SPEC

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-35010iYM20;CM20,KM20,YM21..ARL197910-198405

main46217-35010iKM20..HRF..06S198308-198405

NEWZEALAND SPEC

46217APIN, SLOTTED SPRING(FOR PARKING BRAKE RELEASE ROD KNOB)

main90254-02002iKM20..HRF..06S198308-198405

NEWZEALAND SPEC

main90254-02002iYM20;CM20,KM20,YM21..ARL197910-198405

46217BWASHER, PLATE(FOR PARKING BRAKE RELEASE ROD KNOB)

main90201-12017iYM20;CM20,KM20,YM21..ARL197910-198405

main90201-12017iKM20..HRF..06S198308-198405

NEWZEALAND SPEC

46217CSPRING, COMPRESSION(FOR PARKING BRAKE RELEASE ROD KNOB)

main90501-10023iYM20;CM20,KM20,YM21..ARL197910-198405

main90501-10023iKM20..HRF..06S198308-198405

NEWZEALAND SPEC

46225ROD, PARKING BRAKE PAWL RELEASE

main46225-35030iYM20;CM20,KM20,YM21..ARL197910-198405

main46225-35030iKM20..HRF..06S198308-198405

NEWZEALAND SPEC

46238PROTECTOR, PLUNGER LOCK PIN

main46238-35010iYM20;CM20,KM20,YM21..ARL197910-198405

main46238-35010iKM20..HRF..06S198308-198405

NEWZEALAND SPEC

46266HOLDER, PLUNGER LOCK PIN

main46266-35010iKM20..HRF..06S198308-198405

NEWZEALAND SPEC

main46266-35010iYM20;CM20,KM20,YM21..ARL197910-198405

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46341-27010iCM20,KM20,YM2#..HRF,SRF197910-198508

main46341-35010iKM20..TR197910-198210

46311PAWL, PARKING BRAKE

main46311-26010iCM20,YM2#;KM20..V4D..02S;KM20..03S,05S,06S,08S,09S198405-198508

main46311-30041iCM20,YM2#;KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S197910-198405

46311ASPRING(FOR PARKING BRAKE PAWL)

main90506-08011iYM20;CM20,KM20,YM21..ARL197910-198405

main90506-08011iKM20..HRF..06S198308-198405

NEWZEALAND SPEC

main90508-08106iCM20,YM2#;KM20..V4D..02S;KM20..03S,05S,06S,08S,09S197910-198508

46311BPIN, PARKING BRAKE PAWL PIVOT

main46313-40010iCM20,KM20,YM2#197910-198508

46321LEVER, PARKING BRAKE INTERMEDIATE

main46321-27020iCM20,KM20,YM2#..HRF,SRF197910-198508

main46321-27040iKM20..TR197910-198210

46321ASPRING, TENSIION(FOR PARKING BRAKE INTERMEDIATE LEVER)

main90506-20026iCM20,KM20,YM2#..HRF,SRF197910-198508

main90506-23320iKM20..TR197910-198210

46361ROD, PARKING BRAKE PULL

main46361-27010iKM20..TR197910-198210

main46361-27020iCM20,KM20,YM2#..HRF,SRF197910-198508

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-27050iKM20..TR197910-198101

main46410-27051iKM20..TR198101-198210

main46410-27060iKM20..RHD..V197910-198101

main46410-27061iKM20..RHD..(HRF,SRF)198101-198210

main46410-27062iCM20,KM20,YM2#..RHD198210-198508

main46410-27070iKM20..4F;KM20..LHD..VSP..4H..EUR;KM20..LHD..4H..(03S,05S,06S,07S,09S)197910-198210

main46410-27071iCM20,KM20..LHD198210-198508

46410BGROMMET(FOR PARKING BRAKE FRONT CABLE)

main90480-20004iKM20..4F;KM20..LHD..VSP..4H..EUR;KM20..LHD..4H..(03S,05S,06S,07S,09S)197910-198210

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-27030iKM20..TR197910-198210

main46420-27050iKM20..LHD..VSP..EUR;KM20..RHD..(HRF,SRF);KM20..LHD..(03S,05S,06S,07S,09S)197910-198210

main46420-27051iCM20,KM20,YM2#198210-198508

main46420-27100iKM20..08S198108-198210

46420CPIN, W/HOLE(FOR PARKING BRAKE CABLE)

main90240-06032iCM20,KM20,YM2#197910-198508

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-27030iKM20..TR197910-198210

main46430-27050iKM20..LHD..VSP..EUR;KM20..RHD..(HRF,SRF);KM20..LHD..(03S,05S,06S,07S,09S)197910-198210

main46430-27051iCM20,KM20,YM2#198210-198508

main46430-27100iKM20..08S198108-198210

46441NUT, WIRE ADJUSTING, NO.1

main94120-40800iCM20,KM20,YM2#197910-198508

46471PULLEY, WIRE

main46471-20010iCM20,KM20,YM2#197910-198508

46471BPIN, W/HOLE(FOR WIRE PULLEY SET)

main90240-08017iCM20,KM20,YM2#197910-198508

9017908020

main90179-08020

9020608016

main90206-08016

9046808001

main90468-08001

9165140820

main91651-40820

9334914006

main93349-14006

9461110401

main94611-10401

9461210701

main94612-10701

9538101612

main95381-01612

9538102520

main95381-02520

9538103015

main95381-03015

40 parts on this diagram · 4 diagrams in section
