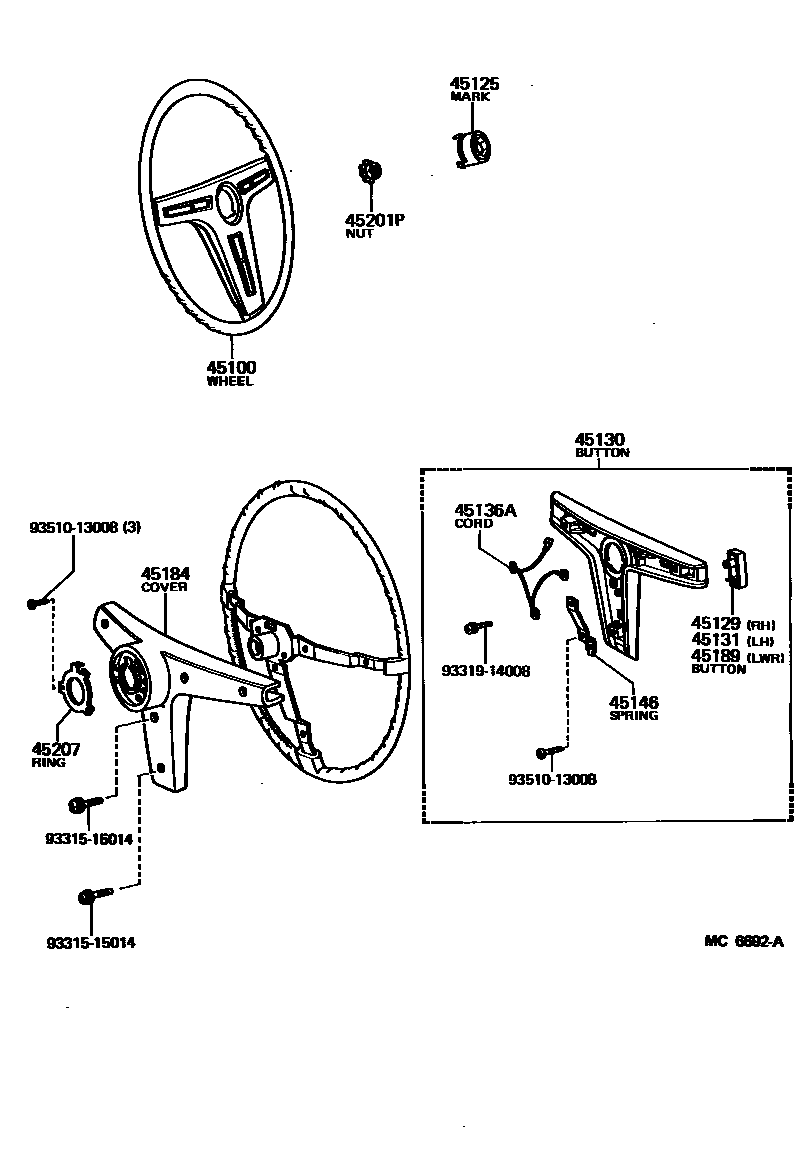

STEERING WHEEL

0001 1 0002 1 0004 1 0006 1

45100WHEEL ASSY, STEERING

main45100-12170-16iKM20..4F;KM20..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)..EUR198101-198210

3-SPOKE,URETHANE,BROWN,BROWN

sub45100-12170

main45100-27020-05iCM20,KM20..LHD..(BUS,V)198210-198508

2-SPOKE,BEIGE

sub45100-27020

main45100-27020-06iKM20..VSP..02S;KM20..03S,05S,06S,09S198101-198210

2-SPOKE,BROWN

sub45100-27020

main45100-27020-06iKM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S)197910-198101

2-SPOKE,BEIGE,BROWN

sub45100-27020

main45100-27060-05iCM20,KM20..02S..ARL198210-198508

2-SPOKE,BEIGE,BEIGE

sub45100-27060

main45100-27070-05iCM20,KM20..EUR198210-198508

BEIGE,BEIGE

main45100-27070-05iKM20..05S..ARL198210-198508

URETHANE,BEIGE,BEIGE

45125MARK, STEERING WHEEL PAD

main45125-27030-05iCM20,KM20..LHD..(BUS,V)198210-198508

BEIGE,BEIGE

sub45125-27030

main45125-27030-06iKM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S)197910-198101

BEIGE,BROWN

sub45125-27030

main45125-27030-06iKM20..VSP..02S;KM20..03S,05S,06S,09S198101-198210

BROWN

sub45125-27030

main45125-27050iKM20..4F;KM20..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)..EUR198101-198210

3-SPOKE,URETHANE

main45125-27060-05iKM20..05S..ARL198210-198508

BEIGE,BEIGE

main45125-27060-05iKM20..05S..ARL198210-198508

URETHANE,BEIGE,BEIGE

main45125-27070-05iCM20,KM20..02S..ARL198210-198508

BEIGE,BEIGE

sub45125-27070

45129BUTTON, HORN, NO.2

main45131-10090iKM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S)197910-198007

sub45131-10091

main45131-10091iCM20,KM20..LHD..(BUS,V)198007-198508

main45131-12090iKM20..05S..ARL198101-198210

3-SPOKE,URETHANE

main45131-14090-05iKM20..05S..ARL198210-198508

URETHANE,BEIGE,BEIGE

sub45131-14090

main45131-14090-05iYM21..08S198311-198508

BEIGE,BEIGE

sub45131-14090

45130BUTTON ASSY, HORN

main45130-12160-16iKM20..05S..ARL198101-198210

BROWN,BROWN

sub45130-12160

45131BUTTON, HORN, NO.1

main45129-14030-05iYM21..08S198311-198508

BEIGE,BEIGE

sub45129-14030

main45129-14030-05iCM20,KM20..EUR198210-198508

URETHANE,BEIGE,BEIGE

sub45129-14030

main45131-10090iKM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S)197910-198007

sub45131-10091

main45131-10091iKM20..VSP..02S;KM20..03S,05S,06S,09S198007-198508

main45131-12090iKM20..4F;KM20..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)..EUR198101-198210

3-SPOKE,URETHANE

45136PLATE, HORN BUTTON CONTACT

main45137-27010iCM20,KM20..02S..ARL198210-198508

45136ACORD(FOR HORN CONTACT RING)

main90945-02027iKM20..4F;KM20..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)..EUR198101-198210

3-SPOKE,URETHANE

main90945-02036iKM20..VSP..02S;KM20..03S,05S,06S,09S197910-198508

45146SPRING, HORN BUTTON CONTACT

main45146-10050iKM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S)197910-198508

main45146-12050iKM20..05S..ARL198101-198210

3-SPOKE,URETHANE

45184COVER, STEERING WHEEL BOSS, LOWER

main45183-10020-06iKM20..VSP..02S;KM20..03S,05S,06S,09S197910-198207

RH,BROWN,BROWN

sub45183-10021

main45183-10021-15iCM20,KM20..LHD..(BUS,V)198210-198508

RH,BEIGE,BEIGE

sub45183-10021

main45183-10021-16iKM20..VSP..02S;KM20..03S,05S,06S,09S198207-198210

RH,BROWN,BROWN

sub45183-10021

main45184-10010-06iKM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S)197910-198207

LH,BROWN,BROWN

sub45184-10011

main45184-10011-15iCM20,KM20..LHD..(BUS,V)198210-198508

LH,BEIGE,BEIGE

sub45184-10011

main45184-10011-16iKM20..VSP..02S;KM20..03S,05S,06S,09S198207-198210

LH,BROWN,BROWN

sub45184-10011

main45184-10020-16iKM20..05S..ARL198106-198210

BROWN,BROWN

sub45184-10020

main45184-12020-16iKM20..SRF..EUR;KM20..HRF..VSP..EUR;KM20..HRF..(05S,07S)198101-198106

BROWN,BROWN

sub45184-12020

main45184-27010-05iCM20,KM20..EUR198210-198508

URETHANE,BEIGE,BEIGE

sub45184-27010

main45184-27010-05iYM21..08S198311-198508

BEIGE,BEIGE

sub45184-27010

45189BUTTON, HORN, NO.3

main45131-12090iKM20..4F;KM20..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)..EUR198101-198210

45201PNUT, STEERING WHEEL SET

main90179-12086iCM20,KM20,YM2#197910-198508

45207RING, HORN CONTACT

main45176-14050iCM20,KM20,YM2#..RHD198210-198508

URETHANE

main45176-20030iKM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S197910-198508

9331515014

main93315-15014

9331914008

main93319-14008

9351013008

main93510-13008

15 parts on this diagram · 4 diagrams in section
