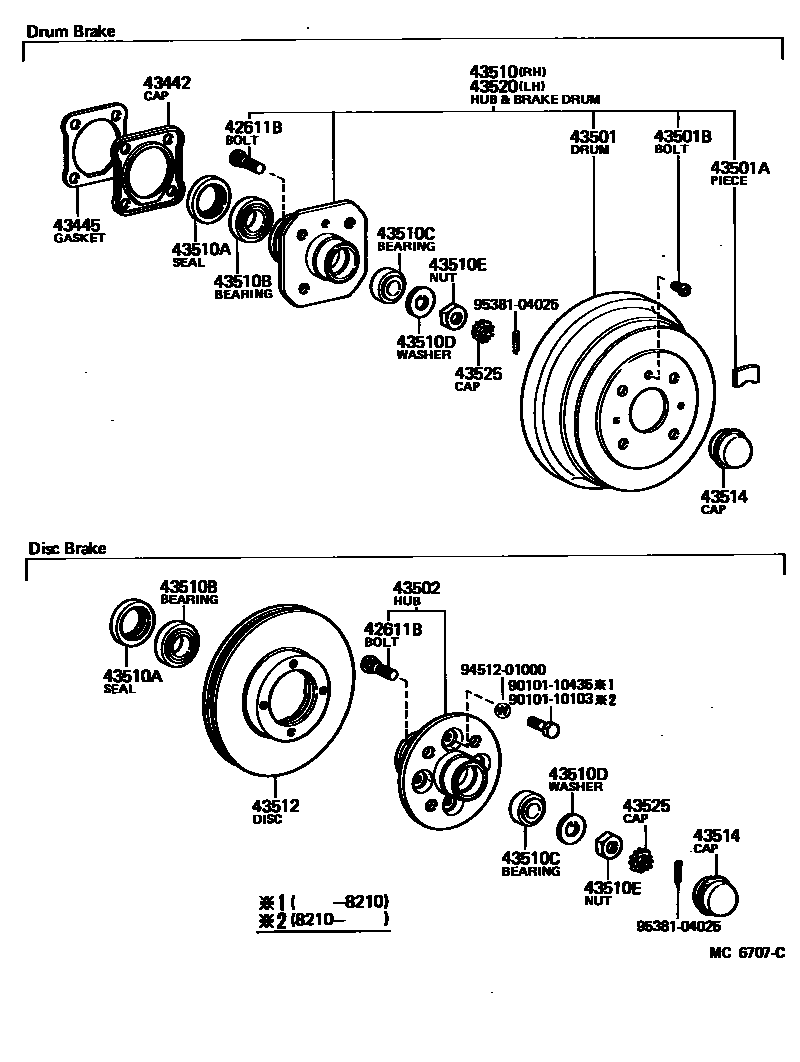

FRONT AXLE HUB

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02035iKM20..VSP..02S;KM20..03S,05S,06S,09S197910-198307

DRUM BRAKE

sub90942-02047

main90942-02036iKM20..RHD..09S197910-198307

DISC BRAKE

sub90942-02048

main90942-02047iCM20,KM20..GEN198307-198508

DRUM BRAKE

main90942-02048iCM20,YM2#;KM20..V4D..02S;KM20..03S,05S,06S,08S,09S198307-198508

DISC BRAKE

43442CAP, KNUCKLE GREASE RETAINER, INNER

main43442-20030iCM20,KM20..GEN197910-198508

43445GASKET, KNUCKLE GREASE RETAINER CAP

main43445-20030iKM20..VSP..02S;KM20..03S,05S,06S,09S197910-198508

43501DRUM SUB-ASSY, FRONT BRAKE

main43512-27010iKM20..VSP..02S;KM20..03S,05S,06S,09S197910-198508

43501APIECE, BALANCE (FOR FRONT BRAKE DRUM)

main90937-01117iKM20..VSP..02S;KM20..03S,05S,06S,09S197910-198508

10G,10G

main90937-01118iCM20,KM20..GEN197910-198508

20G,20G

main90937-01119iCM20,KM20..GEN197910-198508

30G,30G

main90937-01146iKM20..VSP..02S;KM20..03S,05S,06S,09S197910-198508

25G,50G

main90937-01215iKM20..VSP..02S;KM20..03S,05S,06S,09S197910-198508

40G,40G

43501BBOLT, SET (FOR FRONT BRAKE DRUM SETTING)

main90113-10007iCM20,KM20..GEN197910-198508

43502HUB SUB-ASSY, FRONT AXLE

main43502-20010iKM20..RHD..09S197910-198508

43510HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH

main43510-27020iKM20..VSP..02S;KM20..03S,05S,06S,09S197910-198508

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-48001iCM20,YM2#;KM20..V4D..02S;KM20..03S,05S,06S,08S,09S198305-198508

main90311-48122iCM20;KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S197910-198305

sub90311-48001

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90368-31067iCM20,KM20,YM2#197910-198508

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-19037iCM20,KM20,YM2#197910-198508

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-20005iCM20,KM20,YM2#197910-198508

43510ENUT (FOR STEERING KNUCKLE)

main90170-19185iCM20,KM20,YM2#197910-198508

43512DISC, FRONT

main43512-27020iKM20..4F;KM20..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)197910-198210

main43512-28020iCM20,KM20,YM2#198210-198508

43514CAP, FRONT HUB GREASE

main43514-27010iCM20,KM20,YM2#197910-198508

43520HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH

main43510-27020iKM20..VSP..02S;KM20..03S,05S,06S,09S197910-198508

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-22010iCM20,KM20,YM2#197910-198508

9010110103

main90101-10103

9010110435

main90101-10435

9451201000

main94512-01000

9538104025

main95381-04025

21 parts on this diagram · 1 diagram in section
