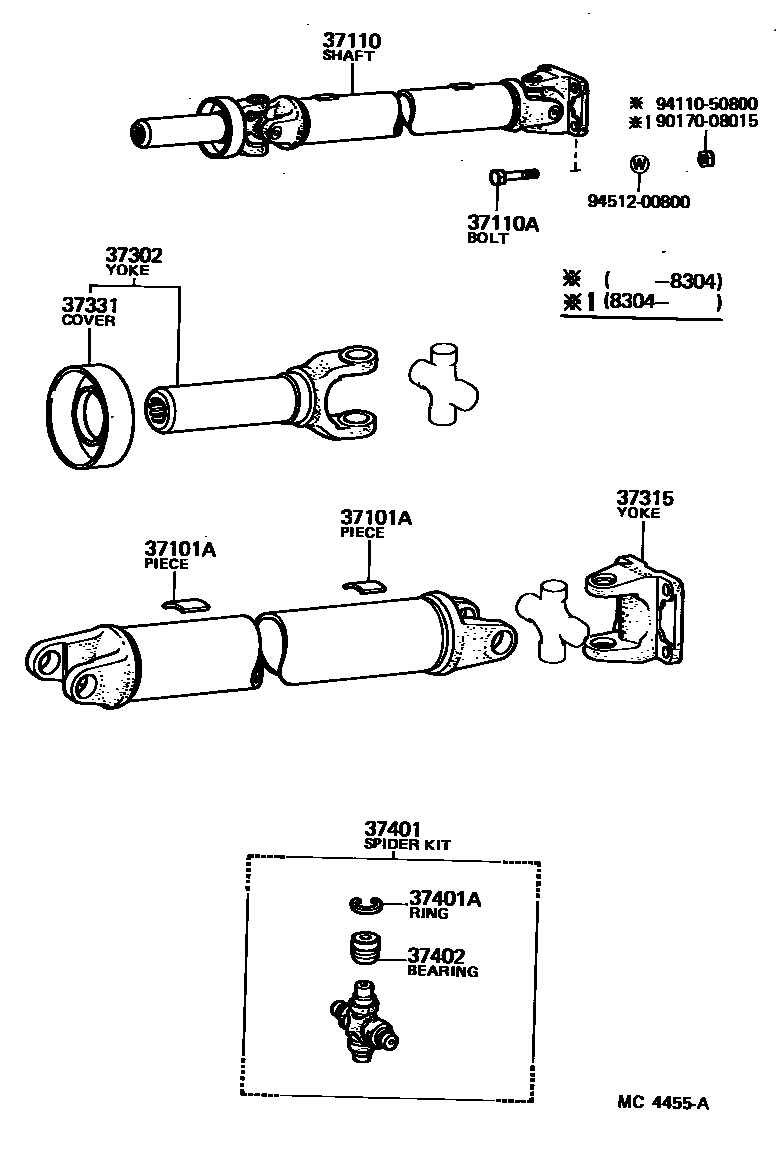

PROPELLER SHAFT & UNIVERSAL JOINT
37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)
10G,L=20.7,10G
20G,L=41.4,20G
30G,L=62.2,30G
2G,T=2.0,2G
4G,T=2.0,4G
6G,L=12.4,6G
8G,L=16.6,8G
12G,L=24.9,12G
14G,L=29.0,14G
16G,L=33.2,16G
18G,L=37.3,18G
22G,L=45.6,22G
24G,L=49.7,24G
26G,L=53.9,26G
28G,L=58.1,28G
37110SHAFT ASSY, PROPELLER
37302YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE
37315YOKE, UNIVERSAL JOINT FLANGE
37331COVER, SLIDING SHAFT DUST
37401SPIDER KIT, UNIVERSAL JOINT
37401ARING, HOLE SNAP (FOR SPIDER BEARING)
T=2.375-2.425,T=2.40
T=2.425-2.475,T=2.45
T=2.475-2.525,T=2.50
T=2.525-2.575,T=2.55
37402BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER
9017008015
main90170-08015
9411050800
main94110-50800
9451200800
main94512-00800
12 parts on this diagram · 1 diagram in section
