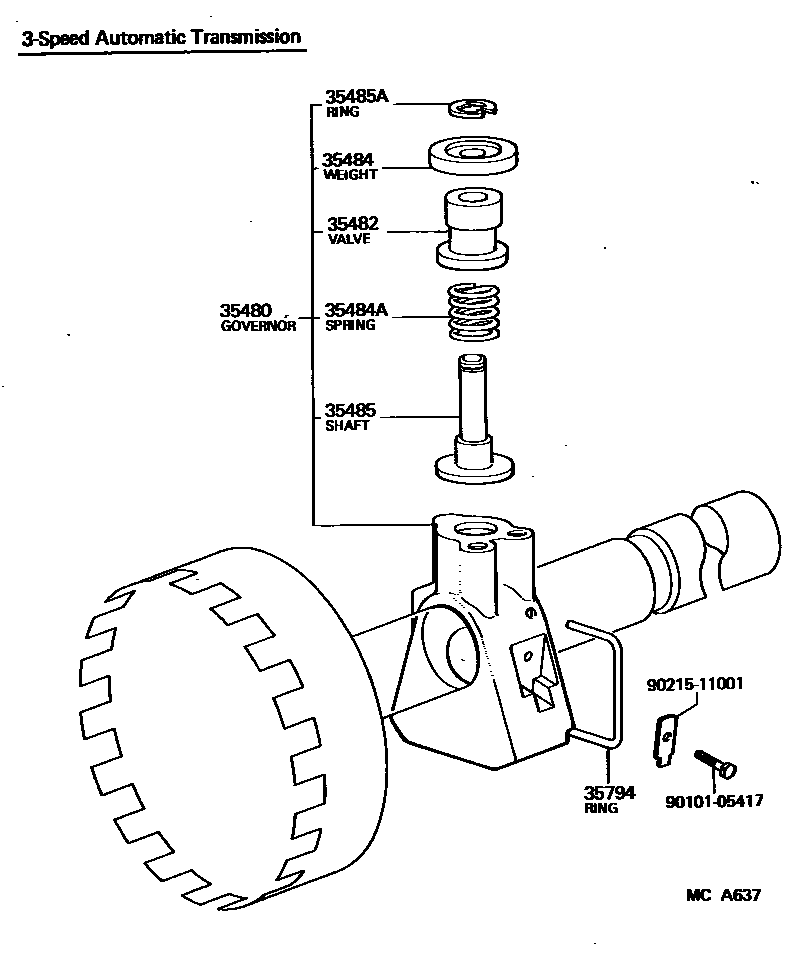

REAR OIL PUMP & GOVERNOR (ATM)

35480GOVERNOR

main35480-26020iYM21..3FC198311-198508

35482VALVE, GOVERNOR

main35482-20010iYM21..3FC198311-198508

35484WEIGHT, GOVERNOR, OUTER

main35484-20020iYM21..3FC198311-198508

35484ASPRING, COMPRESSION (FOR GOVERNOR WEIGHT)

main90501-09673iYM21..3FC198311-198508

35485SHAFT, GOVERNOR VALVE

main35485-22010iYM21..3FC198311-198508

35485ARING, E (FOR GOVERNOR VALVE SHAFT)

main90523-05020iYM21..3FC198311-198508

35794RING, GOVERNOR RETAINING

main35794-22010iYM21..3FC198311-198508

9010105417

main90101-05417

9021511001

main90215-11001

9 parts on this diagram · 1 diagram in section
