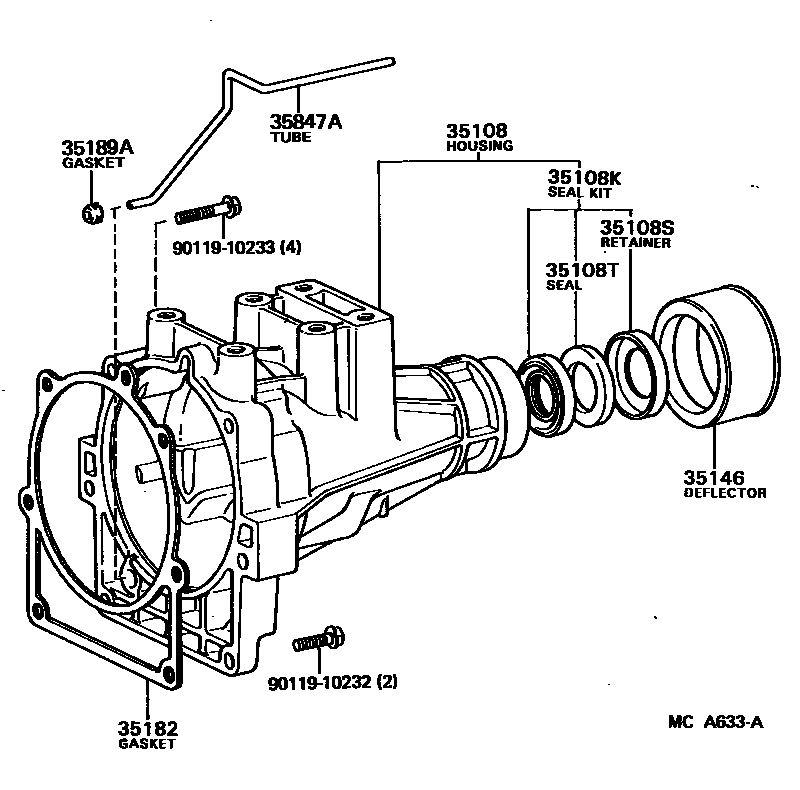

EXTENSION HOUSING (ATM)

35108HOUSING SUB-ASSY, EXTENSION (ATM)

main35108-26011iYM21..3FC198311-198410

sub35108-26012

main35108-26012iYM21..3FC198410-198508

35108KSEAL KIT, OIL(FOR AUTOMATIC EXTENSION HOUSING)

main04332-30020iYM21..3FC198311-198508

sub04332-30030

35108SRETAINER, EXTENSION HOUSING DUST SEAL (ATM)

main33145-30010iYM21..3FC198311-198508

35108TSEAL, DUST (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90303-38010iYM21..3FC198311-198508

35146DEFLECTOR, EXTENSION HOUSING DUST (ATM)

main33146-30010iYM21..3FC198311-198508

sub33146-30020

35182GASKET, EXTENSION HOUSING (ATM)

main35182-22010iYM21..3FC198311-198508

sub35182-28010

35189AGASKET, EXTENSION HOUSING BUSH APPLY TUBE

main35189-30010iYM21..3FC198410-198508

35847ATUBE, EXTENSION HOUSING BUSH APPLY

main35847-30020iYM21..3FC198410-198508

9011910232

main90119-10232

9011910233

main90119-10233

10 parts on this diagram · 1 diagram in section
