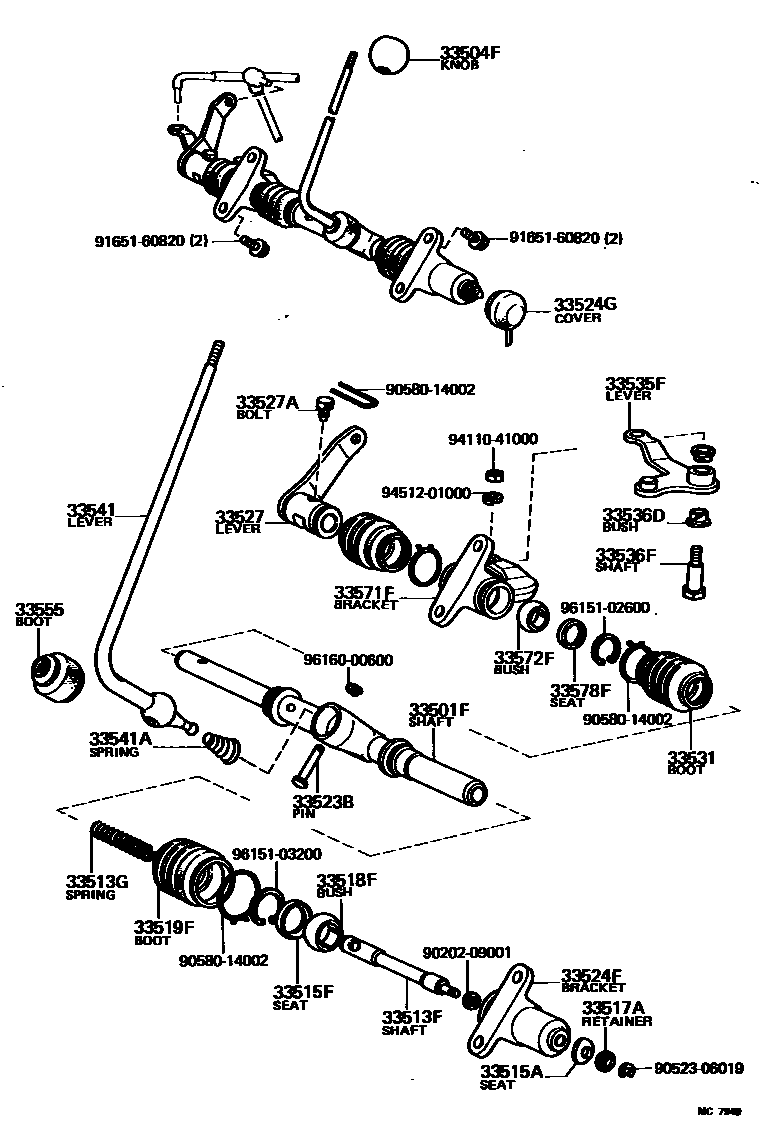

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

33501FSHAFT SUB-ASSY, CONTROL (FOR FLOOR SHIFT)

main33501-27041iKM20..4F198108-198508

main33501-27080iCM20..LHD..5F198210-198508

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-20052-35iYM21..5F..08S198311-198508

BEIGE,BEIGE

sub33504-20052

sub33504-14050

main33504-20052-35iCM20..5F198210-198508

BEIGE,URETHANE,BEIGE

sub33504-20052

sub33504-14050

main33504-20062-01iKM20..4F198108-198210

BLACK,URETHANE,BLACK

sub33504-20062

sub33504-14040

main33504-20062-35iKM20..4F198210-198508

BEIGE,URETHANE,BEIGE

sub33504-20062

sub33504-14040

main33504-22101-01iKM20..V..4F198108-198210

BLACK,BLACK

sub33504-14040

sub33504-22101

main33504-22101-35iKM20..V..4F198210-198508

BEIGE,BEIGE

sub33504-14040

sub33504-22101

main33504-22111-35iCM20..5F198210-198508

BEIGE,BEIGE

sub33504-14050

sub33504-22111

main33542-16010-05iYM21..3FC198311-198508

BEIGE,BEIGE

sub33542-16010

33513FSHAFT, CONTROL SHAFT BRACKET

main33513-27011iCM20,KM20..LHD..(4F,5F)198108-198508

33513GSPRING, COMPRESSION (FOR CONTROL SHAFT BRACKET SHAFT)

main90501-13005iKM20..4F198108-198508

main90501-13007iCM20..LHD..5F198210-198508

33515ASEAT, CONTROL UPPER SHAFT (FOR FLOOR SHIFT)

main33515-30010iCM20,KM20..LHD..(4F,5F)198108-198508

33515FSEAT, CONTROL SHAFT

main33515-27010iCM20,KM20,YM2#..4F,5F198108-198508

33517ARETAINER, CONTROL UPPER SHAFT SEAT

main33517-30010iCM20,KM20..LHD..(4F,5F)198108-198508

33518FBUSH, CONTROL SHAFT

main33518-27020iCM20,KM20,YM2#..4F,5F198108-198508

33519FBOOT, CONTROL SHAFT DUST

main33519-27010iCM20,KM20..LHD..(4F,5F)198108-198508

33523BPIN, SHIFT LEVER (FOR FLOOR SHIFT)

main90249-08033iCM20,KM20..LHD..(4F,5F)198108-198508

33524FBRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT)

main33524-27011iCM20,KM20..LHD..(4F,5F)198108-198508

33524GCOVER, SHIFT LEVER HOUSING DUST

main33522-27010iCM20,KM20..LHD..(4F,5F)198108-198508

33527LEVER, CONTROL SHIFT (FOR FLOOR SHIFT)

main33527-27021iKM20..4F198108-198508

main33527-27050iCM20..LHD..5F198210-198508

33527ABOLT (FOR CONTROL SHIFT LEVER)

main33218-35010iCM20,KM20..LHD..(4F,5F)198108-198508

33531BOOT, DUST (FOR CONTROL SHIFT LEVER)

main33531-27010iKM20..4F198108-198508

main33531-27020iCM20,YM2#..RHD..5F198210-198508

RH

main33531-27030iCM20,YM2#..RHD..5F198210-198508

LH

33535FLEVER, CONTROL SELECT (FOR FLOOR SHIFT)

main33535-27050iKM20..4F198108-198508

main33535-27060iCM20..LHD..5F198210-198508

33536DBUSH, CONTROL SELECT LEVER SHAFT (FOR FLOOR SHIFT)

main90386-13007iCM20,KM20..LHD..(4F,5F)198108-198508

33536FSHAFT, CONTROL SELECT LEVER (FOR FLOOR SHIFT)

main33536-25010iCM20,KM20..LHD..(4F,5F)198108-198508

33541LEVER, SHIFT

main33541-27110iCM20,KM20..LHD..(4F,5F)198108-198508

main33541-27130iCM20,YM2#..RHD..5F198210-198508

33541ASPRING, COMPRESSION

main90504-16002iCM20,KM20..LHD..(4F,5F)198108-198508

33555BOOT, SHIFT LEVER

main33555-14030iYM21..3FC198311-198508

main33555-27011iCM20,KM20..LHD..(4F,5F)198108-198508

main33555-35030iCM20,YM2#..RHD..5F198210-198508

33571FBRACKET, CONTROL SHAFT, LOWER NO.2

main33571-27020iKM20..4F198108-198508

main33571-27030iCM20..LHD..5F198210-198508

33572FBUSH, CONTROL SHAFT LOWER

main33572-27010iKM20..4F198108-198508

main33572-27020iCM20..LHD..5F198210-198508

33578FSEAT, CONTROL SHAFT LOWER BUSH

main33515-27010iCM20..LHD..5F198210-198508

main33578-27010iKM20..4F198108-198508

9020209001

main90202-09001

9052306019

main90523-06019

9058014002

main90580-14002

9165160820

main91651-60820

9411041000

main94110-41000

9451201000

main94512-01000

9615102600

main96151-02600

9615103200

main96151-03200

9616000600

main96160-00600

33 parts on this diagram · 7 diagrams in section
