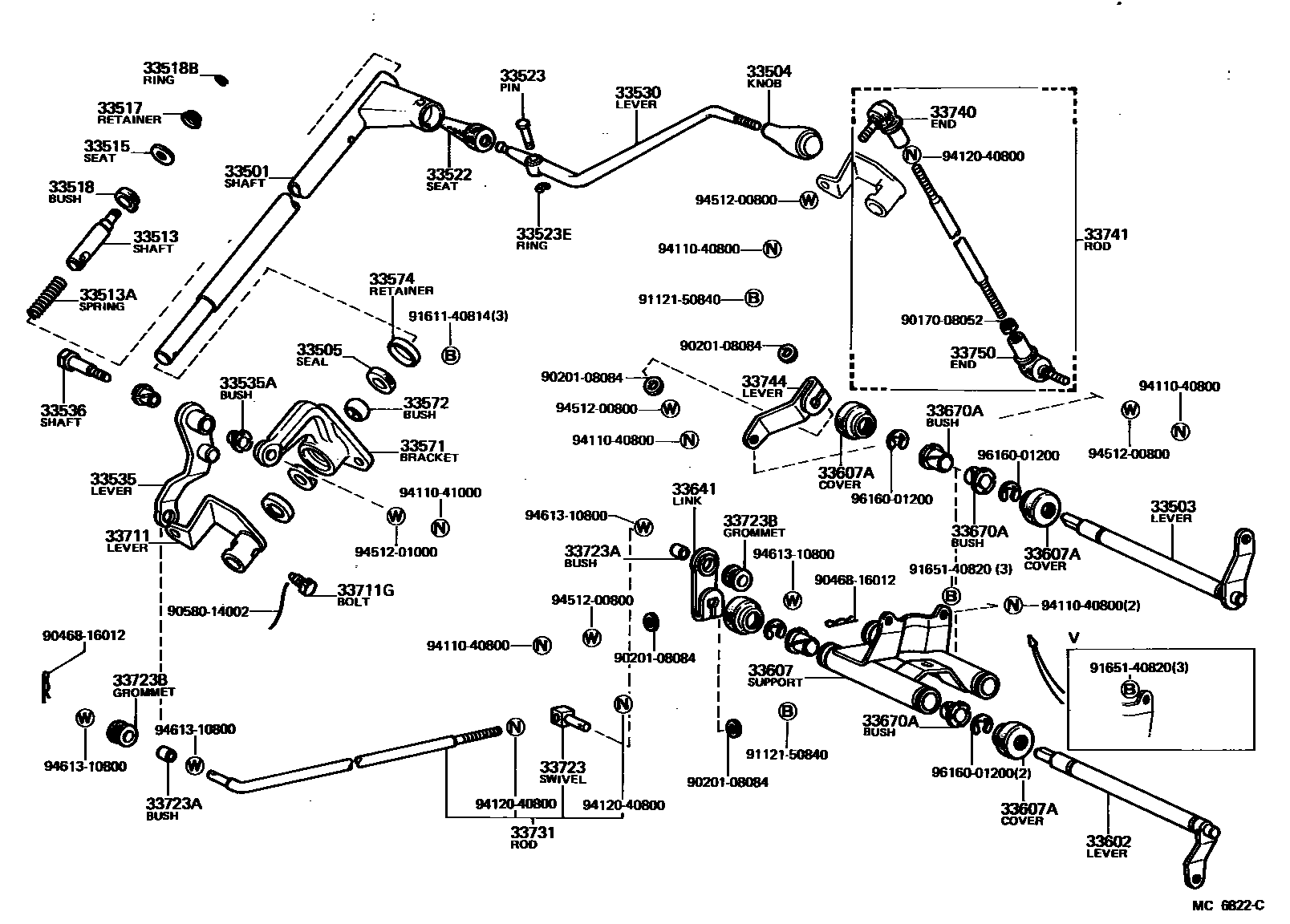

CONTROL SHAFT & CROSSSHAFT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

33501SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT)

main33501-27050iKM20..RHD197910-198210

main33501-27051iCM20,KM20..RHD..4H¥4,460198210-198508

main33501-27060iCM20,KM20..LHD..4H197910-198508

main33501-27090iCM20..ARL¥8,100198210-198508

33503LEVER SUB-ASSY, SHIFT(FOR COLUMN SHIFT)

main33503-27020iCM20,KM20..RHD..(4H,5H)¥1,780197910-198508

main33503-27030iCM20,KM20..LHD..4H197910-198508

33504KNOB SUB-ASSY, SHIFT LEVER (FOR COLUMN SHIFT)

main33504-30110iCM20,KM20..4H,5H¥680197910-198508

33505SEAL SUB-ASSY, CONTROL SHAFT DUST (FOR COLUMN SHIFT)

main90303-17005iCM20,KM20..4H,5H¥140197910-198508

33513SHAFT, CONTROL SHAFT BRACKET, UPPER

main33513-26020iCM20..ARL¥1,460198210-198508

main33513-36020iCM20,KM20..4H¥840197910-198508

33513ASPRING, COMPRESSION (FOR BRACKET UPPER SHAFT)

main90501-14395iCM20,KM20..4H,5H¥230197910-198508

33515SEAT, CONTROL SHAFT UPPER

main33515-30010iCM20,KM20..4H,5H¥320197910-198508

33517RETAINER, CONTROL SHAFT UPPER SPRING

main33517-30010iCM20,KM20..4H,5H¥260197910-198508

33518BUSH, UPPER CONTROL SHAFT PIECE

main33518-27030iCM20,KM20..4H,5H¥730198210-198508

main33518-36010iKM20..RHD;KM20..LHD..VSP..4H..EUR;KM20..LHD..4H..(03S,05S,06S,07S,09S)¥730197910-198210

sub33518-35010¥700

33518BRING, E (FOR UPPER CONTROL SHAFT PIECE BUSH)

main90523-06019iCM20,KM20..4H,5H¥220197910-198508

33522SEAT, SHIFT LEVER PLATE (FOR COLUMN SHIFT)

main33522-35010iCM20,KM20..4H,5H¥730197910-198508

33523PIN, SHIFT LEVER (FOR COLUMN SHIFT)

main90249-07001iCM20,KM20..4H,5H¥240197910-198508

33523ERING, E (FOR SHIFT LEVER PIN)

main96160-00500iCM20,KM20..4H,5H¥100197910-198508

33530LEVER ASSY, SHIFT (FOR COLUMN SHIFT)

main33541-27050iKM20..RHD¥2,220197910-198210

main33541-27051iCM20,KM20..RHD..(4H,5H)¥2,430198210-198508

main33541-27060iCM20,KM20..LHD..4H197910-198508

33535LEVER, CONTROL SELECT (FOR COLUMN SHIFT)

main33535-27030iKM20..RHD¥2,400197910-198210

main33535-27031iCM20,KM20..RHD..(4H,5H)¥2,610198210-198508

main33535-27040iCM20,KM20..LHD..4H197910-198508

33535ABUSH (FOR CONTROL SELECT LEVER)

main90386-13007iCM20,KM20..4H,5H¥160197910-198508

33536SHAFT, CONTROL SELECT LEVER (FOR COLUMN SHIFT)

main33536-25010iCM20,KM20..4H,5H¥720197910-198508

33571BRACKET, CONTROL SHAFT, LOWER (FOR COLUMN SHIFT)

main33571-26012iKM20..RHD;KM20..LHD..VSP..4H..EUR;KM20..LHD..4H..(03S,05S,06S,07S,09S)¥2,340197910-198210

main33571-27040iCM20,KM20..4H,5H¥2,260198210-198508

33572BUSH, CONTROL SHAFT LOWER (FOR COLUMN SHIFT)

main33572-36010iCM20,KM20..4H,5H¥480197910-198508

33574RETAINER, DUST SEAL (FOR COLUMN SHIFT CONTROL SHAFT)

main33574-25010iCM20,KM20..4H,5H¥260197910-198508

33602LEVER SUB-ASSY, SELECT (FOR COLUMN SHIFT)

main33602-27020iKM20..RHD197910-198210

main33602-27021iCM20,KM20..RHD..(4H,5H)¥1,960198210-198508

main33602-27030iCM20,KM20..LHD..4H197910-198508

33607SUPPORT SUB-ASSY, CONTROL ROD (FOR COLUMN SHIFT)

main33607-27030iCM20,KM20..RHD..(4H,5H)¥3,330197910-198508

main33607-27040iCM20,KM20..LHD..4H¥3,680197910-198508

main33607-27060iKM20..TR197910-198210

33607ACOVER, DUST (FOR CONTROL SUPPORT)

main33775-20020iCM20,KM20..LHD..4H¥210197910-198508

main33775-28020iCM20,KM20..RHD..(4H,5H)¥910197910-198508

33641LINK, SELECTING (FOR COLUMN SHIFT)

main33641-27020iKM20..RHD;KM20..LHD..VSP..4H..EUR;KM20..LHD..4H..(03S,05S,06S,07S,09S)197910-198508

main33641-27021iCM20,KM20..RHD..(4H,5H)¥620198210-198508

33670ABUSH (FOR CONTROL ROD SUPPORT)

main90386-15082iCM20,KM20..RHD..(4H,5H)¥250197910-198508

33711LEVER, CONTROL SHAFT (FOR COLUMN SHIFT)

main33527-26030iKM20..RHD¥2,280197910-198210

main33527-27031iCM20,KM20..RHD..(4H,5H)¥2,810198210-198508

main33527-27040iCM20,KM20..LHD..4H¥2,520197910-198508

33711GBOLT, CONTROL SHAFT LEVER LOCK

main33218-35010iCM20,KM20..4H,5H¥360197910-198508

33723SWIVEL, CONNECTING ROD (FOR COLUMN SHIFT)

main33723-10020iCM20,KM20..4H,5H¥750197910-198508

33723ABUSH (FOR COLUMN SHIFT CONTROL SHAFT)

main90389-08005iCM20,KM20..4H,5H¥140197910-198508

33723BGROMMET (FOR COLUMN SHIFT CONTROL SHAFT)

main90480-17177iCM20,KM20..4H,5H¥190197910-198508

33731ROD, GEAR SELECTING, NO.1 (FOR COLUMN SHIFT)

main33720-27020iKM20..RHD;KM20..LHD..VSP..4H..EUR;KM20..LHD..4H..(03S,05S,06S,07S,09S)197910-198508

main33720-27090iCM20,KM20..RHD..(4H,5H)¥1,090198210-198508

33740END ASSY, CONNECTING ROD, NO.1(FOR COLUMN SHIFT)

main33740-35011iCM20,KM20..4H,5H¥1,550197910-198508

sub33740-26010¥840

33741ROD, GEAR SHIFTING, NO.1 (FOR COLUMN SHIFT)

main33710-27020iKM20..RHD¥3,040197910-198210

sub33710-26H91¥2,840

main33710-27021iCM20,KM20..RHD..(4H,5H)¥3,150198210-198508

sub33710-26H92¥3,060

main33710-27030iCM20,KM20..LHD..4H¥2,890197910-198508

sub33710-26H91¥2,840

33744LEVER, GEAR SHIFTING, NO.1 (FOR COLUMN SHIFT)

main33744-27020iKM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S)¥700197910-198508

main33744-27030iCM20,KM20..LHD..4H198007-198508

33750END, CONNECTING ROD, NO.2 (FOR COLUMN SHIFT)

main33750-35011iCM20,KM20..4H,5H¥1,550197910-198508

sub33750-26010¥890

9017008052

main90170-08052¥110

9020108084

main90201-08084¥180

9046816012

main90468-16012¥280

9058014002

main90580-14002¥210

9112150840

main91121-50840¥210

9161140814

main91611-40814¥130

9165140820

main91651-40820¥90

9411040800

main94110-40800¥120

9411041000

main94110-41000¥160

9412040800

main94120-40800¥90

9451200800

main94512-00800¥80

9451201000

main94512-01000¥90

9461310800

main94613-10800¥90

9616001200

main96160-01200¥100

49 parts on this diagram · 7 diagrams in section
