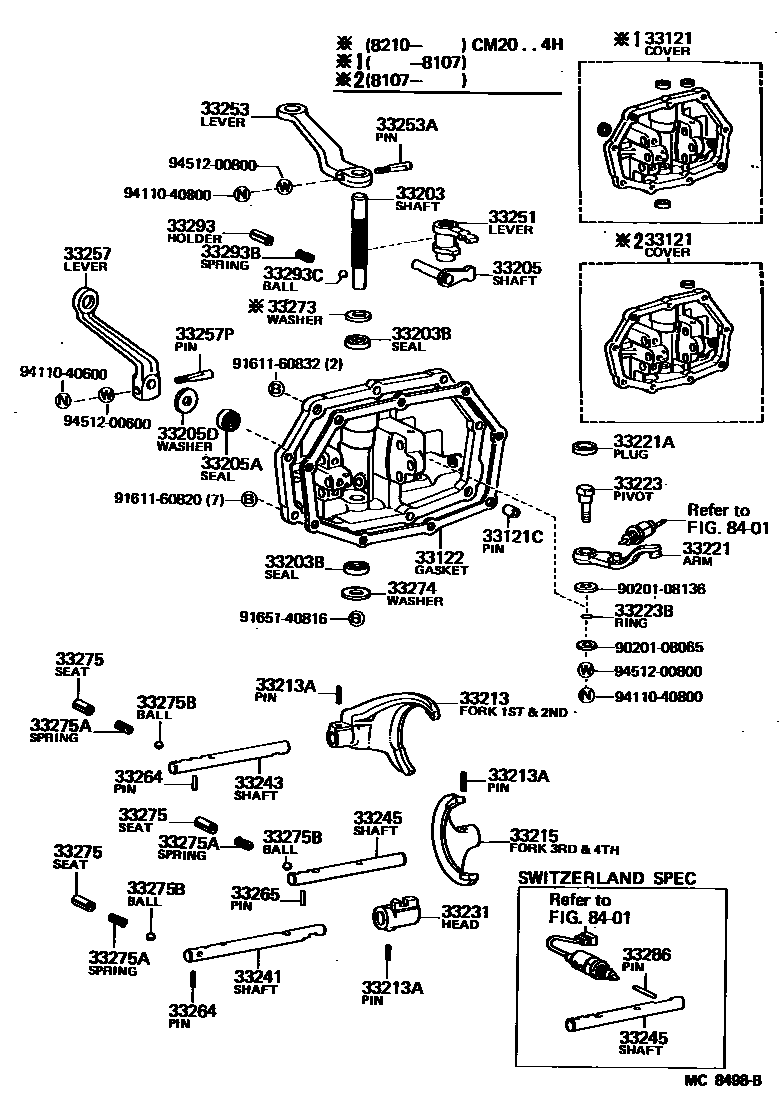

GEAR SHIFT FORK & LEVER SHAFT (MTM)

0001 1 0002 1

33121COVER, MANUAL TRANSMISSION CASE

main33102-26010iCM20..GEN;KM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S198107-198308

sub33102-35040

main33102-26020iKM20..SRF..08S198210-198508

SWITZERLAND SPEC

main33102-35040iCM20..4H;KM20..V4D..02S;KM20..03S,05S,06S,08S,09S198308-198508

main33121-26904iKM20..RHD;KM20..LHD..VSP..EUR;KM20..LHD..(03S,05S,06S,07S,09S)197910-198107

sub33102-26010

33121CPIN(FOR TRANSMISSION CASE COVER)

main90253-11001iCM20,KM20..4F,4H197910-198508

L=11,OD=11

33122GASKET, MANUAL TRANSMISSION CASE COVER

main33122-30020iCM20,KM20..4F,4H197910-198508

33203SHAFT SUB-ASSY, SHIFT LEVER, NO.1

main33261-26021iCM20,KM20..4F,4H197910-198508

33203BSEAL, OIL(FOR SHIFT LEVER SHAFT)

main90311-13050iCM20,KM20..4F,4H197910-198508

LWR

main90311-18002iCM20,YM2#..5F,5H198210-198508

main90312-15003iCM20,KM20..4F,4H197910-198508

UPR

33205SHAFT SUB-ASSY, SELECT LEVER

main33262-28010iCM20,KM20..4F,4H197910-198508

main33262-28020iCM20,YM2#..5F,5H198210-198508

33205ASEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)

main90313-13001iCM20,KM20,YM2#..MTM197910-198508

33205DWASHER(FOR OUTER LEVER OIL SETTING)

main94612-11300iCM20,KM20,YM2#..MTM197910-198508

33213FORK, 1ST & 2ND SHIFT

main33212-26020iCM20,KM20..4F,4H197910-198508

main33212-26030iCM20,YM2#..5F,5H198501-198508

main33212-28021iCM20,YM2#..5F,5H198210-198501

sub33212-26030

sub33242-26020

sub90105-06143

33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)

main90254-05001iCM20,YM2#..5F,5H197910-198508

33215FORK, 3RD & 4TH SHIFT

main33213-26020iCM20,KM20..4F,4H197910-198508

main33213-28011iCM20,YM2#..5F,5H198210-198508

sub33220-26010

sub33364-26020

33221ARM, REVERSE SHIFT

main33221-28010iCM20,YM2#..5F,5H198210-198508

main33221-30010iCM20,KM20..4F,4H197910-198508

33221APLUG, TIGHT(FOR REVERSE SHIFT ARM)

main96411-12500iCM20,KM20..4F,4H197910-198508

sub96411-42500

33223PIVOT, SHIFT ARM

main33223-30011iCM20,KM20..4F,4H197910-198508

33223BRING, O(FOR SHIFT ARM PIVOT)

main90301-08001iCM20,KM20..4F,4H197910-198508

33231HEAD, REVERSE SHIFT

main33231-26010iCM20,KM20..4F,4H197910-198508

main33231-28010iCM20,YM2#..5F,5H198210-198508

sub33231-28020

sub33220-26010

sub33232-28020

sub33364-26020

33241SHAFT, REVERSE SHIFT FORK

main33241-26010iCM20,KM20..4F,4H197910-198508

main33244-28010iCM20,YM2#..5F,5H198210-198508

sub33244-28011

sub90520-12003

33243SHAFT, 1ST & 2ND SHIFT FORK

main33242-26010iCM20,KM20..4F,4H197910-198508

main33242-26020iCM20,YM2#..5F,5H198501-198508

main33242-28010iCM20,YM2#..5F,5H198210-198501

sub33242-26020

sub33212-26030

sub90105-06143

33245SHAFT, 3RD & 4TH SHIFT FORK

main33243-26010iCM20,KM20..4F,4H197910-198508

main33243-26020iKM20..LHD..V4D..EUR198210-198508

SWITZERLAND SPEC

main33243-28020iCM20,YM2#..5F,5H198210-198505

sub33243-35050

sub90523-12001

main33243-35050iCM20,YM2#..5F,5H198505-198508

sub33243-35051

sub90520-12003

33251LEVER, SHIFT & SELECT

main33251-26010iCM20,KM20..4F,4H197910-198508

main33251-28011iCM20..5F,5H198210-198508

sub33251-28012

33253LEVER, SHIFT OUTER, NO.1

main33253-27020iCM20,KM20..4F,4H197910-198508

main33253-27040iCM20,YM2#..5F,5H198210-198508

33253APIN, LEVER LOCK (FOR SHIFT OUTER LEVER)

main33281-16020iCM20,YM2#..5F,5H198210-198508

main33281-30010iCM20,KM20..4F,4H197910-198411

sub33281-16020

33257LEVER, SELECT OUTER

main33257-27020iCM20,KM20..4F,4H197910-198508

main33257-27040iCM20,YM2#..RHD..(5F,5H)198210-198508

main33257-27050iCM20..LHD..5F198210-198508

33257PPIN, SELECT OUTER LEVER LOCK

main33282-35010iCM20,KM20..4F,4H197910-198508

33264PIN, OR BALL, SHIFT INTERLOCK, NO.1

main33264-30010iCM20,KM20..4F,4H197910-198508

OD=6,L=16

main90360-10003iCM20,YM2#..5F,5H198210-198508

OD=9.52,STEEL,BALL

main90361-10002iCM20,YM2#..5F,5H198210-198508

L=21.6,PIN,PIN,L=21.6

main90361-10003iCM20,YM2#..5F,5H198210-198508

L=13.6,OD=9.5,PIN,L=13.6

33265PIN, SHIFT INTERLOCK, NO.2

main33265-30010iCM20,KM20..4F,4H197910-198508

L=28.8,OD=6.0

main90250-05020iCM20,YM2#..5F,5H198210-198508

L=11.1,OD=4.8

33273WASHER, SHIFT LEVER SHAFT HOUSING, NO.1

main90201-15137iCM20..4H198210-198508

33274WASHER, SHIFT LEVER SHAFT HOUSING, NO.2

main94612-11300iCM20,KM20..4F,4H197910-198508

33275SEAT, SHIFT DETENT BALL SPRING, NO.1

main33275-10010iCM20,KM20..4F,4H197910-198508

main90341-12008iCM20,YM2#..5F,5H198210-198508

OD=18

33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)

main90501-14061iCM20,YM2#..5F,5H198210-198508

L=18.3,L=18.3

sub90501-14123

main90501-14062iCM20,YM2#..5F,5H198210-198508

L=30.6,L=30.6

sub90501-14132

main90501-14638iCM20,KM20..4F,4H197910-198508

L=15.2

33275BBALL, SHAFT DETENT

main90360-10003iCM20,KM20,YM2#..MTM197910-198508

33286PIN, SWITCH PRESSURE

main33286-26010iKM20..LHD..V4D..EUR198210-198508

33293HOLDER, REVERSE RESTRICT BALL

main33276-10010iCM20,KM20..4F,4H197910-198508

33293BSPRING, COMPRESSION (FOR REVERSE RESTRICT BALL)

main90501-16052iCM20,KM20..4F,4H197910-198508

33293CBALL (FOR REVERSE RESTRICT)

main90360-10003iCM20,KM20..4F,4H197910-198508

8401

9020108065

main90201-08065

9020108136

main90201-08136

9161160820

main91611-60820

9161160832

main91611-60832

9165140816

main91651-40816

9411040600

main94110-40600

9411040800

main94110-40800

9451200600

main94512-00600

9451200800

main94512-00800

45 parts on this diagram · 2 diagrams in section
