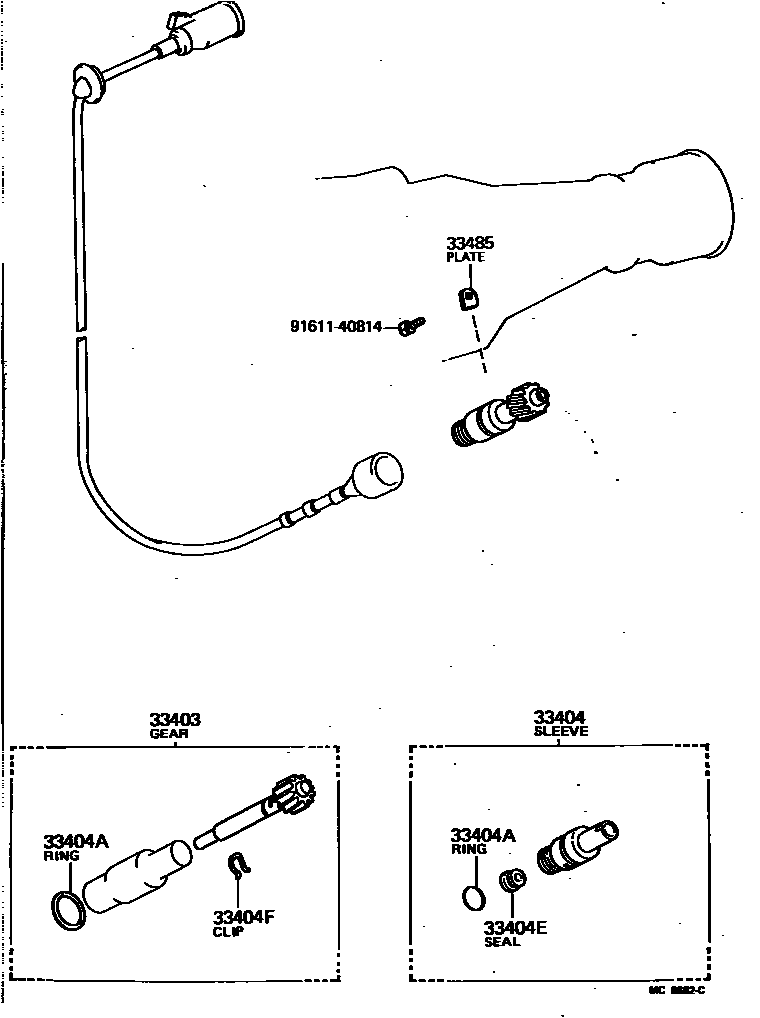

SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-29016iKM20..4F;KM20..SRF..4H..EUR;KM20..HRF..VSP..4H..EUR;KM20..HRF..4H..(05S,07S)..EUR197910-198210

N=19,DIFF R=4.778

main33403-39045iKM20..ARL,GEN197910-198210

N=17,MARK 17:4,N=17,DIFF R=5.125

main33403-39055iKM20..ARL,GEN197910-198210

N=16,DIFF R=4.778

main33482-29035iYM20198210-198508

N=22,MARK 22:6,N=22

main33482-29045iKM20..08S198210-198508

N=19,MARK 19:5,N=19

main33482-29045iKM20..4F;KM20..VSP..4H..EUR198210-198309

N=19,MARK 19:5,N=19,DIFF R=4.778

main33482-39085iYM21..5F198311-198508

N=18,MARK 18:5,N=18

main33482-39095iKM20..V4D..EUR198210-198508

N=16,MARK 16:4,N=16

main33482-39105iKM20..ARL,GEN198210-198508

N=17,MARK 17:4,N=17,DIFF R=5.125

main33482-39115iKM20..ARL198210-198508

N=18,MARK 18:4,N=18

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-30040iKM20..VSP..02S;KM20..03S,05S,06S,07S,08S,09S197910-198210

main33404-35010iCM20,KM20,YM2#..MTM198210-198508

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iCM20,KM20,YM2#..MTM197910-198508

33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iCM20,KM20,YM2#..MTM197910-198508

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iCM20,KM20,YM2#..MTM198210-198508

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-30020iCM20,KM20,YM2#..MTM197910-198508

9161140814

main91611-40814

7 parts on this diagram · 1 diagram in section
