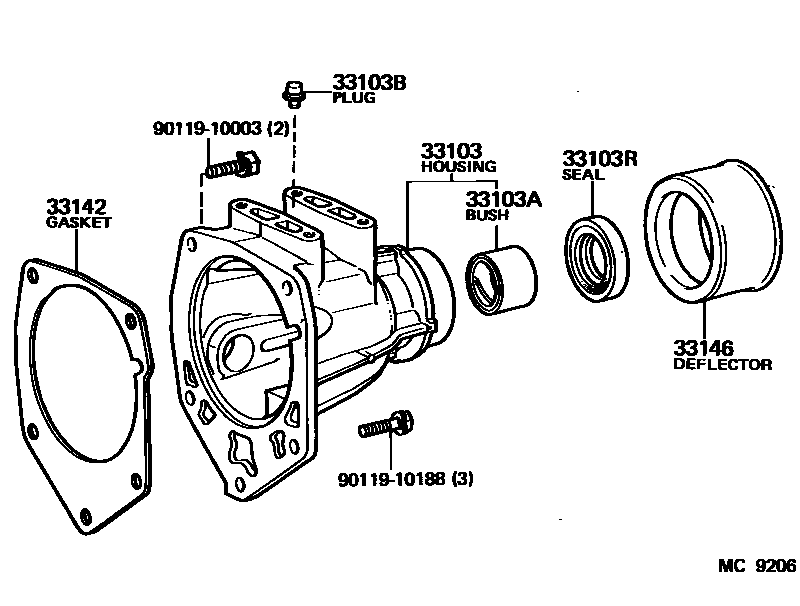

EXTENSION HOUSING (MTM)

0001 1 0002 1

33103HOUSING SUB-ASSY, EXTENSION(MTM)

main33103-27010iKM20..RHD197910-198508

sub33103-27011

main33103-27020iKM20..LHD197910-198508

sub33103-27021

main33103-28010iCM20,YM2#..5F,5H198210-198508

sub33103-28031

33103ABUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90999-72023iCM20,KM20,YM2#..MTM197910-198508

sub90999-73139

33103BPLUG, BREATHER(FOR TRANSMISSION EXTENSION HOUSING)

main90930-03075iCM20,KM20..4F,4H197910-198508

33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90311-38043iCM20,KM20,YM2#..MTM197910-198508

sub90311-38040

33142GASKET, EXTENSION HOUSING(MTM)

main33138-28020iCM20,YM2#..5F,5H198210-198508

main33142-26010iCM20,KM20..4F,4H197910-198508

33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)

main33146-30010iCM20,KM20,YM2#..MTM197910-198508

sub33146-30020

9011910003

main90119-10003

9011910188

main90119-10188

8 parts on this diagram · 2 diagrams in section
