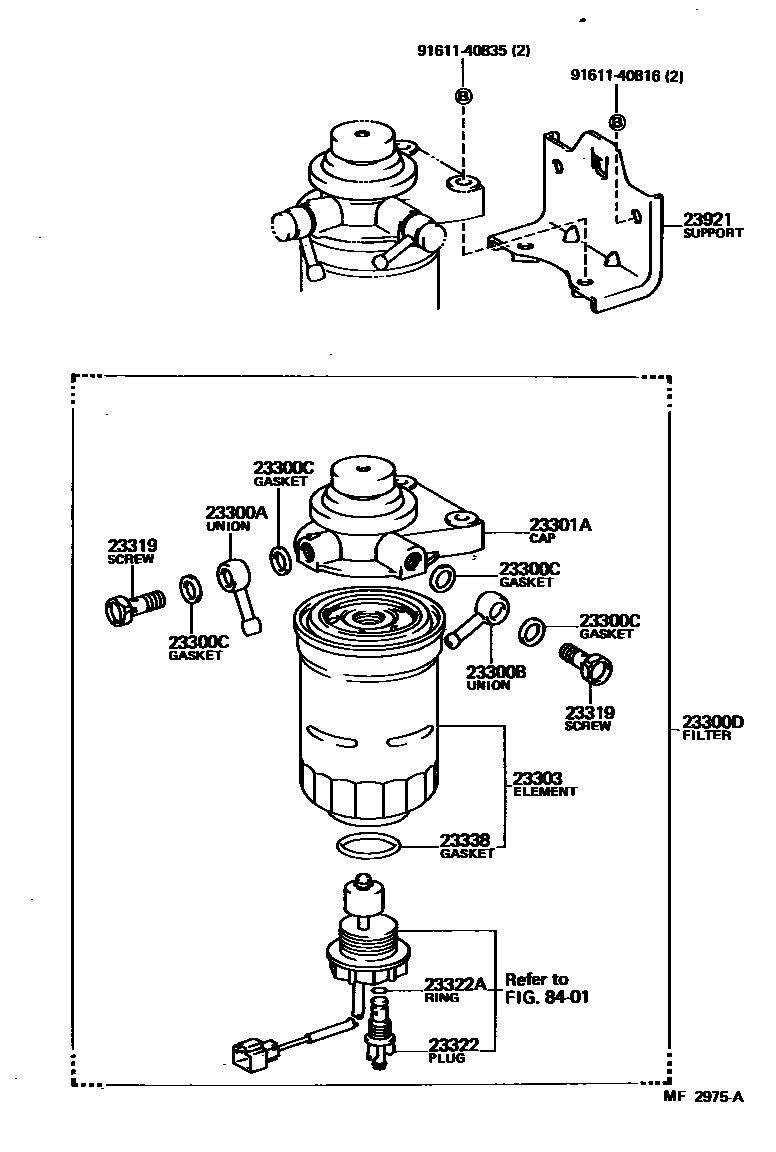

FUEL FILTER

0001 1 0002 1 0003 1

23300FILTER ASSY, FUEL

main23300-26060i4K..KM20..TR197910-198508

main23300-34100i4K..KM20..HRF,SRF197910-198508

23300AUNION, NIPPLE(FOR FUEL FILTER INLET)

main90405-08016i1C..CM20198210-198508

23300BUNION, NIPPLE(FOR FUEL FILTER OUTLET)

main90405-08016i1C..CM20198210-198508

23300CGASKET, NIPPLE UNION(FOR FUEL)

main22447-47030i1C..CM20198210-198508

23300DFILTER ASSY, FUEL(FOR DIESEL)

main23300-64060i1C..CM20198210-198508

23301ACAP ASSY, FUEL FILTER

main23301-64010i1C..CM20198210-198508

23303ELEMENT SUB-ASSY, FUEL FILTER

main23303-64010i1C..CM20198210-198508

23319SCREW, FUEL PIPE FOLLOW

main90099-18011i1C..CM20198210-198508

23322PLUG, DRAIN(FOR FUEL FILTER)

main23322-64010i1C..CM20198210-198508

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i1C..CM20198210-198508

23338GASKET(FOR WARNING SWITCH)

main23344-64010i1C..CM20198210-198508

23921SUPPORT, FUEL FILTER

main23921-64040i1C..CM20198210-198508

main90461-10452i4K..KM20..HRF,SRF197910-198508

main90461-10453i4K..KM20..TR197910-198210

main90929-01050i1Y,2YC..YM2#198311-198508

8401

9161140816

main91611-40816

9161140835

main91611-40835

15 parts on this diagram · 3 diagrams in section
