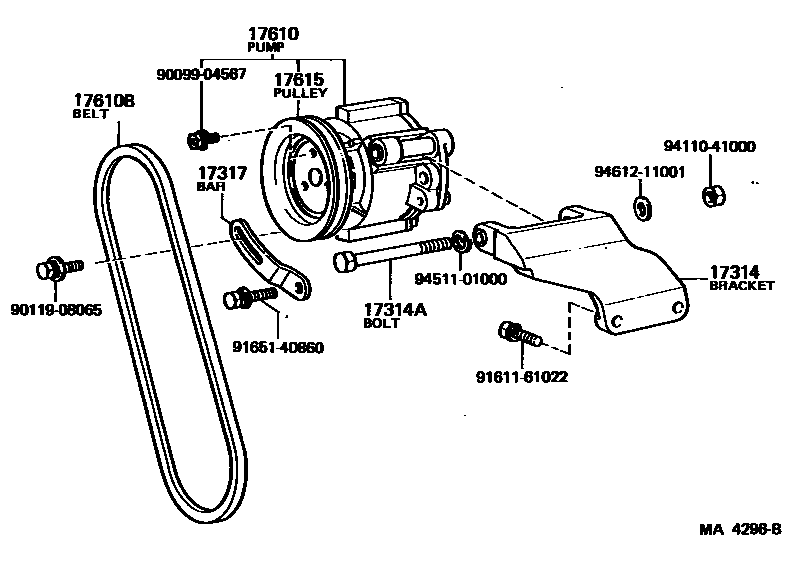

AIR PUMP

17314BRACKET, AIR PUMP

main17314-13010i4K..KM20..ARL;4K..KM20..V4D..4F;4K..KM20..SRF..08S..STD197910-198508

17314ABOLT, HEXAGON(FOR AIR PUMP BRACKET SETTING)

main90101-10279i4K..KM20..ARL;4K..KM20..V4D..4F;4K..KM20..SRF..08S..STD197910-198508

17317BAR, AIR PUMP ADJUSTING, NO.1

main17317-13010i4K..KM20..ARL;4K..KM20..V4D..4F;4K..KM20..SRF..08S..STD197910-198508

17610PUMP ASSY, AIR

main17610-13010i4K..KM20..ARL;4K..KM20..V4D..4F;4K..KM20..SRF..08S..STD197910-198508

17610BBELT, V(FOR AIR PUMP)

main99322-00935i4K..KM20..ARL;4K..KM20..V4D..4F;4K..KM20..SRF..08S..STD197910-198508

L=935

17615PULLEY(FOR AIR PUMP)

main17615-24020i4K..KM20..ARL;4K..KM20..V4D..4F;4K..KM20..SRF..08S..STD197910-198508

9009904567

main90099-04567

9011908065

main90119-08065

9161161022

main91611-61022

9165140860

main91651-40860

9411041000

main94110-41000

9451101000

main94511-01000

9461211001

main94612-11001

13 parts on this diagram · 1 diagram in section
