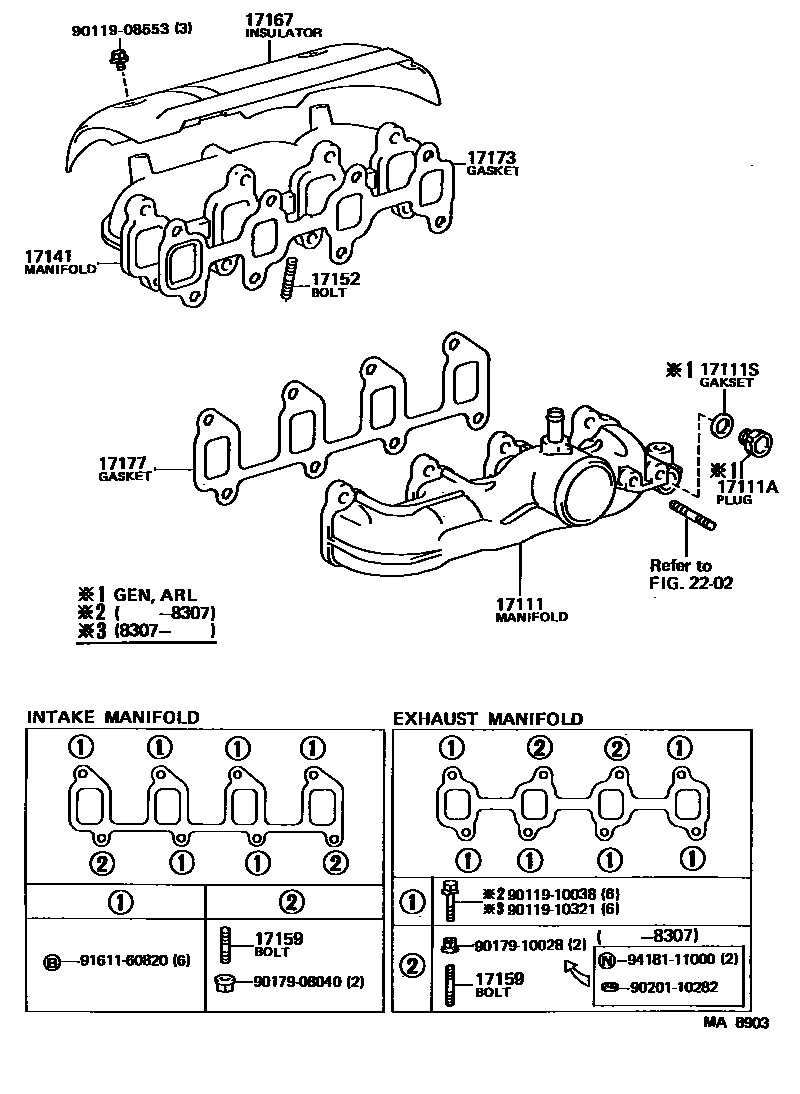

MANIFOLD

0001 1 0002 1 0003 1

17111MANIFOLD, INTAKE

main17101-64010i1C..CM20198210-198508

main17111-71010i2YC..YM21198311-198508

main17111-71020i1Y..YM20198402-198508

17111APLUG, NO.1

main90341-18006i1C..CM20..ARL,GEN198210-198508

main90345-51025i4K..KM20..VSP..02S;4K..KM20..03S,05S,06S,07S,08S,09S197910-198508

17111SGASKET(FOR MANIFOLD PLUG)

main90430-18001i1C..CM20..ARL,GEN198210-198508

17141MANIFOLD, EXHAUST

main17141-64010i1C..CM20198210-198307

main17141-64011i1C..CM20198307-198508

sub17141-64012

sub17173-64060

main17141-71020i1Y,2YC..YM2#198311-198508

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90116-10017i4K..KM20197910-198508

L=41,S=14&21

main90116-10058i1C..CM20198210-198508

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90116-10063i1Y,2YC..YM2#198311-198508

main90116-10095i1C..CM20198307-198508

EXHAUST MANIFOLD

main92122-41028i4K..KM20197910-198508

L=43,S=15&15

main92122-60820i1C..CM20198210-198508

INTAKE MANIFOLD

main92122-61032i1C..CM20198210-198307

EXHAUST MANIFOLD

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-64020i1C..CM20198210-198508

main17167-71020i1Y,2YC..YM2#198311-198508

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-64020i1C..CM20198210-198508

sub17173-64050

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-64010i1C..CM20198210-198508

sub17177-64020

2202

9011908553

main90119-08553

9011910038

main90119-10038

9011910321

main90119-10321

9017908040

main90179-08040

9017910028

main90179-10028

9020110282

main90201-10282

9161160820

main91611-60820

9418111000

main94181-11000

18 parts on this diagram · 3 diagrams in section
