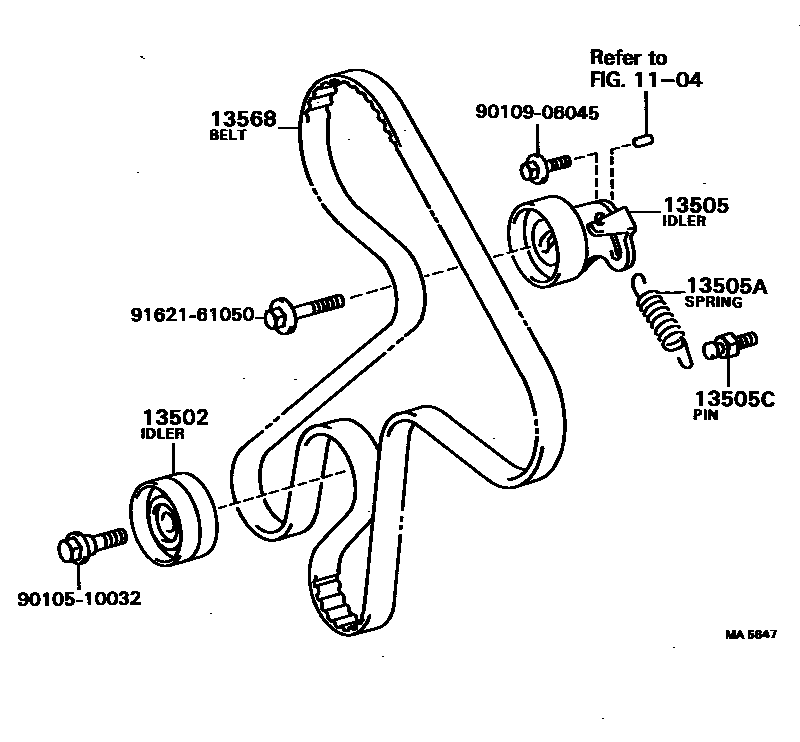

TIMING BELT

1104

13502IDLER SUB-ASSY, TIMING BELT, NO.2

main13503-64020i1C..CM20198210-198508

sub13503-64021

13505IDLER SUB-ASSY, TIMING BELT, NO.1

main13505-64020i1C..CM20198210-198508

sub13505-64021

13505ASPRING, TENSION(FOR IDLER)

main90507-18006i1C..CM20198210-198508

13505CPIN(FOR IDLER SPRING TENSION)

main13575-64010i1C..CM20198210-198508

13568BELT, TIMING

main13568-64010i1C..CM20198210-198508

sub13568-64011

9010510032

main90105-10032

9010906045

main90109-06045

9162161050

main91621-61050

9 parts on this diagram · 1 diagram in section
