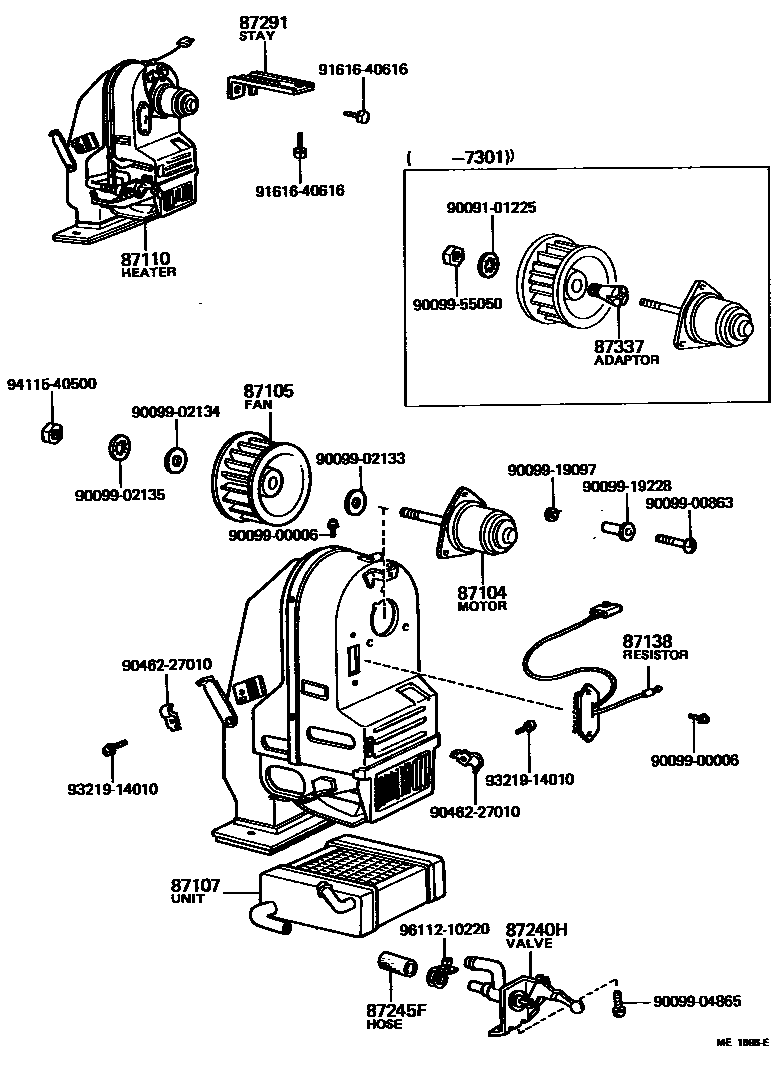

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1 0002 1

87104MOTOR SUB-ASSY, HEATER BLOWER

main87104-10050iKM10..WG197105-197301

main87104-10051iKM10..SRF197301-197610

main87104-87001iKM10197610-197802

main87104-95A00iKM11197802-197909

87105FAN SUB-ASSY, HEATER BLOWER

main87105-10050iKM10..WG197105-197301

main87105-10051iKM10..SRF197301-197610

main87105-20054iKM10197610-197802

sub87105-22020

main87105-22020iKM11197802-197909

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-27010iKM10..SRF197105-197610

sub87107-36061

main87107-36061iKM10..V197511-197610

main87107-87001iKM1#197610-197909

sub87107-87002

87110HEATER ASSY

main87110-25021iKM10197410-197610

main87110-27010iKM10..WG197105-197301

sub87110-27011

main87110-27011iKM10..SRF197301-197410

sub87110-25021

main87110-27022iKM10..V197511-197610

main87110-27023iKM10197610-197802

sub87110-27040

main87110-27024iKM11197802-197909

sub87110-27041

87138RESISTOR, HEATER BLOWER

main87138-27010iKM10..SRF197105-197610

main87138-87001iKM10197610-197802

main87138-87003iKM11197802-197909

87240HVALVE ASSY, WATER UNIT

main87240-27010iKM10..SRF197105-197610

sub87240-27011

sub87123-10050

sub90090-52602

main87240-87001iKM1#197610-197909

87245FHOSE, HEATER WATER, INLET F

main99552-20040iKM10..SRF197105-197610

*H,L=40

sub99552-20100

main99552-30045iKM1#197610-197909

L=45

sub99552-30075

87291STAY, HEATER

main87209-95700iKM1#197610-197909

main87291-27010iKM10..SRF197105-197610

87337ADAPTER, HEATER BLOWER MOTOR

main87337-10010iKM10..WG197105-197301

9009101225

main90091-01225

9009900006

main90099-00006

9009900863

main90099-00863

9009902133

main90099-02133

9009902134

main90099-02134

9009902135

main90099-02135

9009904865

main90099-04865

9009919097

main90099-19097

9009919228

main90099-19228

9009955050

main90099-55050

9046227010

main90462-27010

9161640616

main91616-40616

9321914010

main93219-14010

9411540500

main94115-40500

9611210220

main96112-10220

24 parts on this diagram · 2 diagrams in section
