REAR COMBINATION LAMP

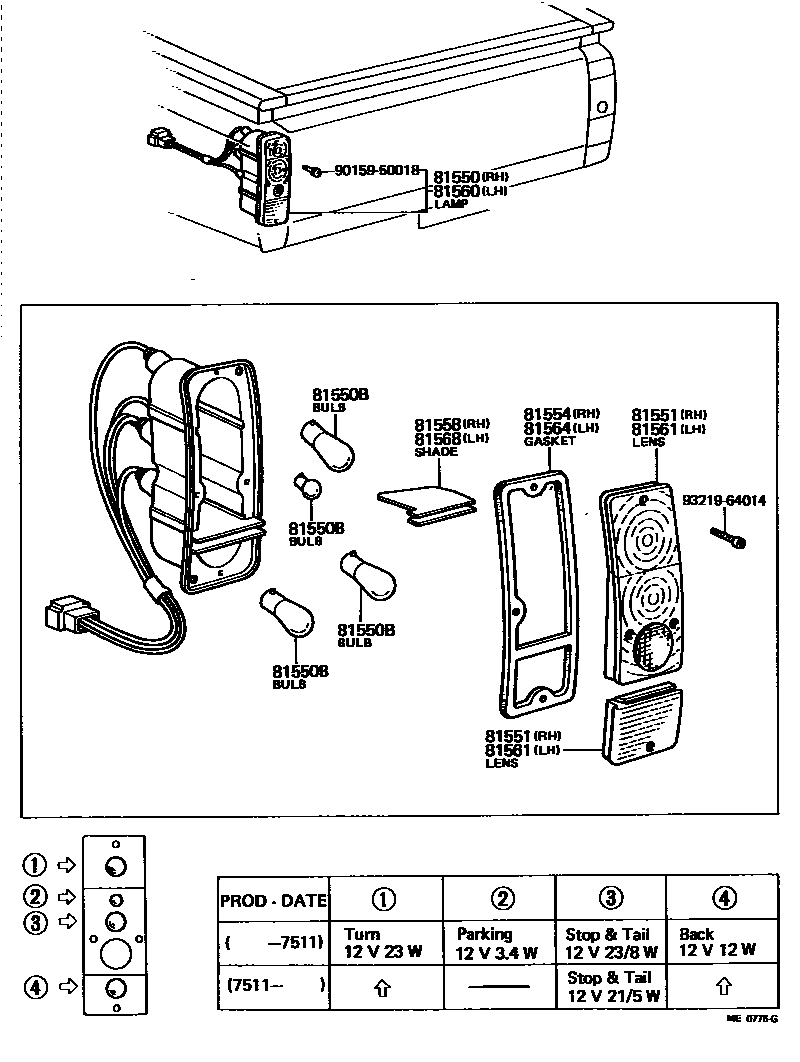

Parts diagram
81550LAMP ASSY, REAR COMBINATION, RH
main81550-19265i197105-197408
AMBER-RED-CLEAR
main81550-29385i197105-197304
AMBER-RED-CLEAR
sub81550-29386
main81550-29386i197304-197408
AMBER-RED-CLEAR
main81550-29395i197105-197304
AMBER-RED-CLEAR
sub81550-29396
main81550-29396i197304-197511
AMBER-RED-CLEAR
main81550-29397i197511-197909
AMBER-RED-CLEAR
main81550-29775i197607-197909
AMBER-RED-CLEAR
81550BBULB(FOR REAR COMBINATION LAMP)
main99132-11120i197105-197909
12V 12W
main99132-11230i197105-197909
12V 23W,12V 23W
main99132-12034i197105-197511
12V 3.4W,12V 3.4W
main99132-21210i197511-197909
12V 21/5W,12V 21/5W
main99132-21230i197105-197511
12V 23/8W,12V 23/8W
81551LENS, REAR COMBINATION LAMP, RH
main81551-27010i197105-197304
AMBER-RED
sub81551-27011
main81551-27011i197304-197909
AMBER-RED
main81551-27020i197105-197304
AMBER-RED
sub81551-27021
main81551-27021i197304-197408
AMBER-RED
main81551-36060i197105-197909
RED-CLEAR
main81559-27010i197105-197909
CLEAR
main81559-27020i197105-197408
CLEAR
main81559-36060i197105-197909
AMBER
81554GASKET, REAR COMBINATION LAMP BODY, RH
main81552-27010i197105-197909
main81552-27020i197105-197408
main81554-36060i197105-197909
81558SHADE, REAR COMBINATION LAMP, NO.1 RH
main81557-27010i197105-197909
main81557-27020i197105-197408
main81557-36060i197105-197909
81560LAMP ASSY, REAR COMBINATION, LH
main81550-29385i197105-197304
AMBER-RED-CLEAR
sub81550-29386
main81550-29386i197304-197408
AMBER-RED-CLEAR
main81560-29195i197105-197408
AMBER-RED-CLEAR
main81560-29385i197105-197304
AMBER-RED-CLEAR
sub81560-29386
main81560-29386i197304-197511
AMBER-RED-CLEAR
main81560-29387i197511-197909
AMBER-RED-CLEAR
main81560-29765i197607-197909
AMBER-RED-CLEAR
81561LENS, REAR COMBINATION LAMP, LH
main81551-27020i197105-197304
AMBER-RED
sub81551-27021
main81551-27021i197304-197408
AMBER-RED
main81559-27020i197105-197408
CLEAR
main81561-27010i197105-197304
AMBER-RED
sub81561-27011
main81561-27011i197304-197909
AMBER-RED
main81561-36050i197105-197909
RED-CLEAR
main81569-27010i197105-197909
CLEAR
main81569-36050i197105-197909
AMBER
81564GASKET, REAR COMBINATION LAMP BODY, LH
main81552-27020i197105-197408
main81554-36060i197105-197909
main81562-27010i197105-197909
81568SHADE, REAR COMBINATION LAMP, NO.1 LH
main81557-27020i197105-197408
main81557-36060i197105-197909
main81567-27010i197105-197909
9015950018
main90159-50018
9321964014
main93219-64014
