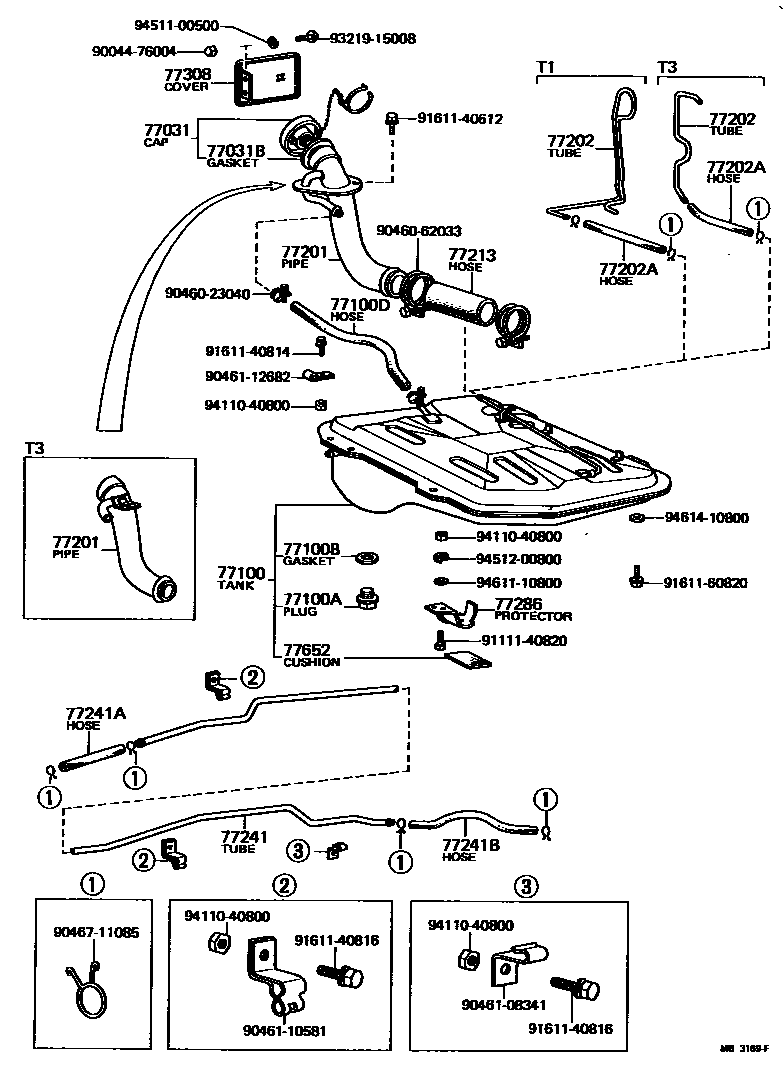

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0007 1 0008 1 0009 1

77031CAP ASSY, FUEL TANK

main77031-26023iKM10..HRF,SRF197304-197610

sub69058-87403

main77031-27011iKM10..SRF197105-197304

sub77031-26022

main77031-95700iKM1#..V197610-197909

sub77031-26023

main77310-12041iKM10..TR197304-197909

main77310-27020iKM10..TR197105-197304

77031BGASKET (FOR FUEL TANK CAP)

main77316-12030iKM10..SRF197304-197511

sub77316-12031

main77316-12031iKM1#197511-197909

main77316-12040iKM10..TR197304-197408

main77316-27010iKM10..TR197105-197304

main77316-40011iKM10..SRF197105-197304

sub77316-12020

77100TANK ASSY, FUEL

main77001-27010iKM10..TR197105-197107

main77001-27011iKM10197107-197208

sub77001-27012

sub83320-29096

main77001-27012iKM10197208-197304

main77001-27013iKM10197304-197802

main77001-27020iKM10..SRF197105-197107

main77001-27030iKM11197802-197909

77100APLUG(FOR FUEL TANK)

main90105-12018iKM1#197105-197909

77100BGASKET(FOR FUEL TANK)

main90430-12038iKM10197105-197708

main90430-12245iKM1#197708-197909

77100DHOSE, FUEL, NO.1(FOR FUEL TANK)

main90445-24016iKM1#..V197702-197909

main90446-21285iKM1#..T3197105-197909

main90447-21024iKM10..HRF,SRF197105-197702

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-27010iKM10..T1197105-197107

main77201-27011iKM10..T1197107-197304

main77201-27012iKM10..T1197304-197408

main77201-27020iKM10..T3197105-197107

sub77201-27022

main77201-27021iKM10..T3197107-197304

main77201-27022iKM10..T3197304-197909

main77201-27031iKM10..SRF197105-197304

main77201-27032iKM10..HRF,SRF197304-197702

main77201-27040iKM1#..V197702-197909

77202TUBE SUB-ASSY, BREATHER

main65183-87401iKM10..T3197105-197304

main65523-87401iKM10..T1197105-197304

77202AHOSE, FUEL, NO.1 (FOR BREATHER TUBE)

main90446-12081iKM10..T3197105-197304

L=280

main90446-12276iKM10..T1197105-197107

L=582

main90446-12303iKM10..T1197107-197304

L=400

77213HOSE, FUEL TANK SUB INLET

main77213-27010iKM1#..V197702-197909

main77217-27010iKM10..T1197105-197111

sub77217-27011

main77217-27011iKM10..T1197111-197208

sub77217-27012

main77217-27012iKM10..T1197208-197408

main77217-27020iKM10..T3197105-197111

sub77217-27021

main77217-27021iKM10..T3197111-197208

sub77217-27022

main77217-27022iKM10..T3197208-197909

main77217-27031iKM10..SRF197105-197208

sub77217-27032

main77217-27032iKM10..HRF,SRF197208-197702

77241TUBE, FUEL MAIN, NO.1

main77251-27010iKM10..TR197105-197304

main77251-27011iKM1#..T3197304-197909

main77251-27020iKM10..SRF197105-197304

main77251-27021iKM1#..HRF,SRF197304-197909

77241AHOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)

main90445-12260iKM10..TR197105-197109

L=126

sub95331-08013

main90445-12570iKM10..SRF197105-197109

L=100

sub90445-12668

main95311-07010iKM10..SRF197109-197204

L=100

main95311-07013iKM10..TR197109-197204

L=130

main95331-06010iKM1#..HRF,SRF197304-197909

*H,L=100

sub95332-06010

main95331-06022iKM10..TR197304-197904

*H,L=220

sub95332-06022

main95331-08010iKM10..SRF197204-197304

*H,L=100

sub95332-08010

main95331-08013iKM10..TR197204-197304

*H,L=130

sub95332-08013

main95332-06030iKM11..T3197904-197909

L=300(*H,L=220)

sub95333-06030

77241BHOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)

main90445-12482iKM10..SRF197105-197109

L=320

main90445-12593iKM10..TR197105-197109

L=190

main95311-07019iKM10..TR197109-197204

L=190

sub95331-08019

main95311-07032iKM10..SRF197109-197204

L=320

main95331-06019iKM1#..T3197304-197903

*H,L=190

sub95332-06020

main95331-06020iKM11..T3197903-197909

*H,L=200

sub95332-06020

main95331-06032iKM1#..HRF,SRF197304-197904

*H,L=320

sub95332-06032

main95331-08019iKM10..TR197204-197304

*H,L=190

sub95332-08020

main95331-08032iKM10..SRF197204-197304

*H,L=320

sub95332-08032

main95332-06040iKM11..V197904-197909

L=400(*H,L=320)

sub95333-06040

77286PROTECTOR, FUEL TANK INLET PIPE

main77286-27010iKM1#..T3197105-197909

main77286-27020iKM1#..HRF,SRF197105-197909

77308COVER SUB-ASSY, FUEL INLET BOX

main65604-87401iKM10..T1197105-197408

77652CUSHION, FUEL TANK, NO.1

main77652-27010iKM1#197105-197909

9004476004

main90044-76004

9046023040

main90460-23040

9046062033

main90460-62033

9046108341

main90461-08341

9046110581

main90461-10581

9046112682

main90461-12682

9046711085

main90467-11085

9111140820

main91111-40820

9161140612

main91611-40612

9161140814

main91611-40814

9161140816

main91611-40816

9161160820

main91611-60820

9321915008

main93219-15008

9411040800

main94110-40800

9451100500

main94511-00500

9451200800

main94512-00800

9461110800

main94611-10800

9461410800

main94614-10800

34 parts on this diagram · 8 diagrams in section
