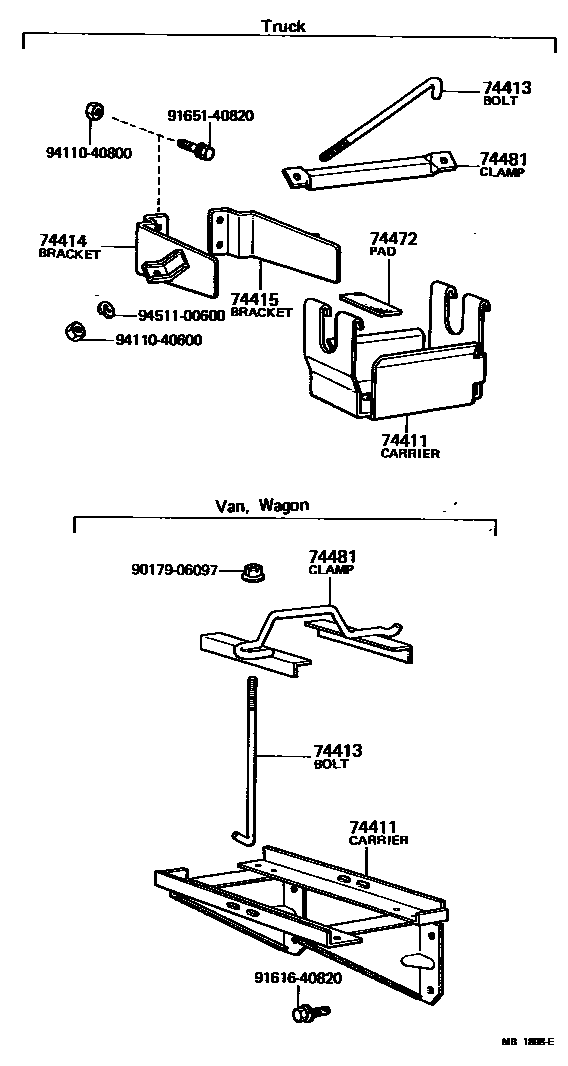

BATTERY CARRIER

74411CARRIER, BATTERY

main74410-95700iKM1#..HRF,SRF197105-197909

FOR N40

main74421-27010iKM10..TR197105-197909

FOR NS40L

74413BOLT, BATTERY CLAMP

main74451-11012iKM10..TR197105-197909

main74451-30040iKM1#..HRF,SRF197105-197909

sub74451-16040

74414BRACKET, BATTERY, FR

main74401-27010iKM1#..T3197105-197909

74415BRACKET, BATTERY, REAR

main74402-27010iKM1#..T3197105-197909

74472PAD, BATTERY SIDE

main74472-25010iKM1#..T3197105-197909

54X20

74481CLAMP, BATTERY HOLD DOWN

main74404-95700iKM1#..HRF,SRF197105-197909

FOR N40

main74453-11012iKM10..TR197105-197909

FOR NS40L

9017906097

main90179-06097

9161640820

main91616-40820

9165140820

main91651-40820

9411040600

main94110-40600

9411040800

main94110-40800

9451100600

main94511-00600

12 parts on this diagram · 1 diagram in section
