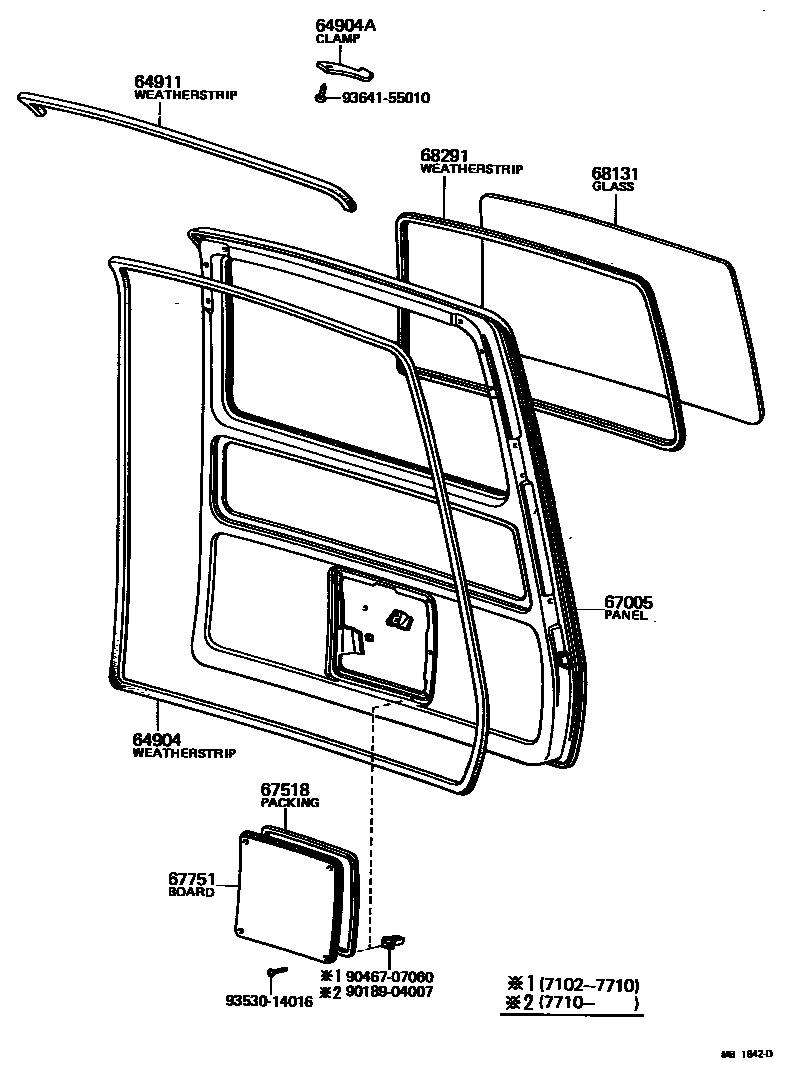

BACK DOOR PANEL & GLASS

64904WEATHERSTRIP SUB-ASSY, BACK DOOR

main64911-95701iKM1#..HRF,SRF197105-197909

64904ACLAMP(FOR BACK DOOR WEATHERSTRIP)

main64913-95700iKM1#197501-197909

RH.

main64914-95700iKM1#197501-197909

LH.

64911WEATHERSTRIP, BACK DOOR OPENING TRIM, UPPER

main67875-95701iKM1#..HRF,SRF197105-197909

67005PANEL SUB-ASSY, BACK DOOR

main67005-95700iKM1#..HRF,SRF197105-197909

67518PACKING, BACK DOOR SERVICE HOLE COVER

main67518-95700iKM1#..V197511-197909

67751BOARD, BACK DOOR TRIM

main67511-95700iKM1#..HRF,SRF197105-197909

68131GLASS, BACK DOOR

main68131-95700iKM10..V197105-197307

TP.T=3.0

sub68131-95702

main68131-95701iKM10..WG197105-197307

TN.TP.T=3.0

sub68131-95703

main68131-95702iKM1#..V197307-197909

TP.T=4.0

sub68131-95704

main68131-95703iKM10..WG197307-197408

TN.TP.T=4.0

sub68131-95704

68291WEATHERSTRIP, BACK DOOR GLASS

main68291-95700iKM10..SRF197105-197307

FOR GLASS T=3.0

main68291-95701iKM1#..HRF,SRF197307-197909

FOR GLASS T=4.0

9018904007

main90189-04007

9046707060

main90467-07060

9353014016

main93530-14016

9364155010

main93641-55010

12 parts on this diagram · 1 diagram in section
