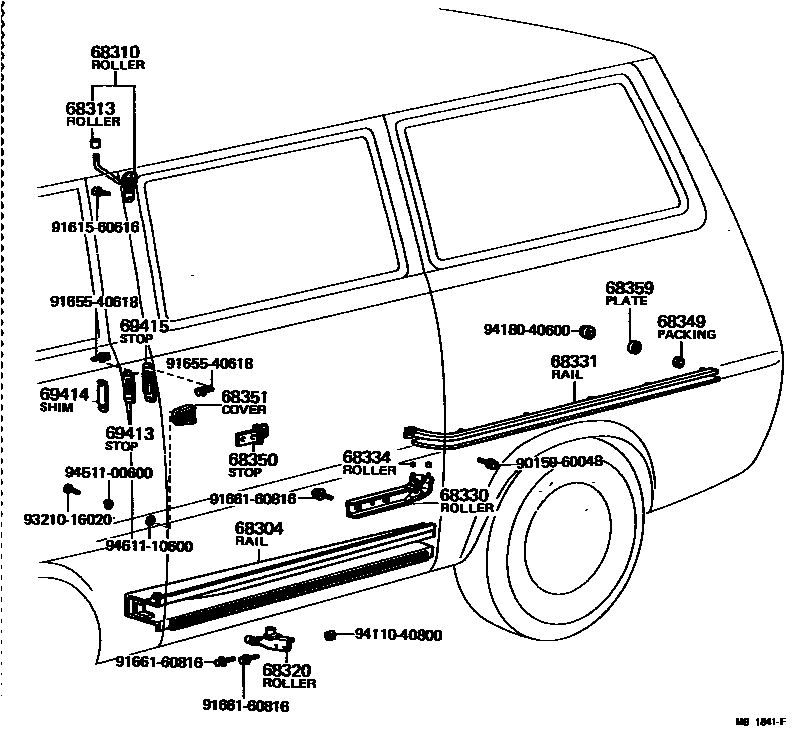

SLIDE ROLLER & RAIL

68304RAIL SUB-ASSY, SLIDE DOOR LOWER ROLLER

main68304-95700iKM1#..HRF,SRF197105-197909

68310ROLLER ASSY, SLIDE DOOR, UPPER

main68310-95700iKM1#..HRF,SRF¥1,830197105-197909

68313ROLLER, SIDE DOOR, UPPER

main68313-95700iKM1#..HRF,SRF¥450197105-197909

68320ROLLER ASSY, SLIDE DOOR, LOWER

main68320-95700iKM1#..HRF,SRF¥2,500197105-197909

68330ROLLER ASSY, SLIDE DOOR, CENTER

main68340-95700iKM1#..HRF,SRF¥3,290197105-197909

68331RAIL, SLIDE DOOR, CENTER

main68301-95700iKM1#..HRF,SRF¥11,600197105-197909

68334ROLLER, SLIDE DOOR CENTER, NO.2

main68334-95700iKM1#..HRF,SRF¥380197105-197909

68349PACKING, SLIDE DOOR CENTER RAIL BOLT

main90430-05234iKM1#..HRF,SRF¥180197209-197909

main90430-06194iKM10..SRF197105-197209

68350STOPPER ASSY, SLIDE DOOR OPEN

main69408-95700iKM1#..HRF,SRF197105-197909

68351COVER, SLIDE DOOR OPEN STOPPER

main69417-95700iKM1#..HRF,SRF¥310197105-197909

68359PLATE, PACKING(FOR SLIDE DOOR CENTER RAIL)

main68359-95660iKM10..SRF197105-197511

69413STOP, SLIDE DOOR DOWN MALE

main69413-95700iKM1#..HRF,SRF¥280197105-197909

69414SHIM, SLIDE DOOR DOWN STOP MALE

main69418-95700iKM1#..HRF,SRF¥130197105-197909

69415STOPPER, SLIDE DOOR DOWN FEMALE

main69414-95701iKM1#..HRF,SRF¥730197105-197909

3461110600

main34611-10600

9015960048

main90159-60048

9161560616

main91615-60616¥120

9165540618

main91655-40618¥120

9166160816

main91661-60816¥130

9321016020

main93210-16020¥170

9411040800

main94110-40800¥120

9418040600

main94180-40600¥90

9451100600

main94511-00600¥120

23 parts on this diagram · 1 diagram in section
