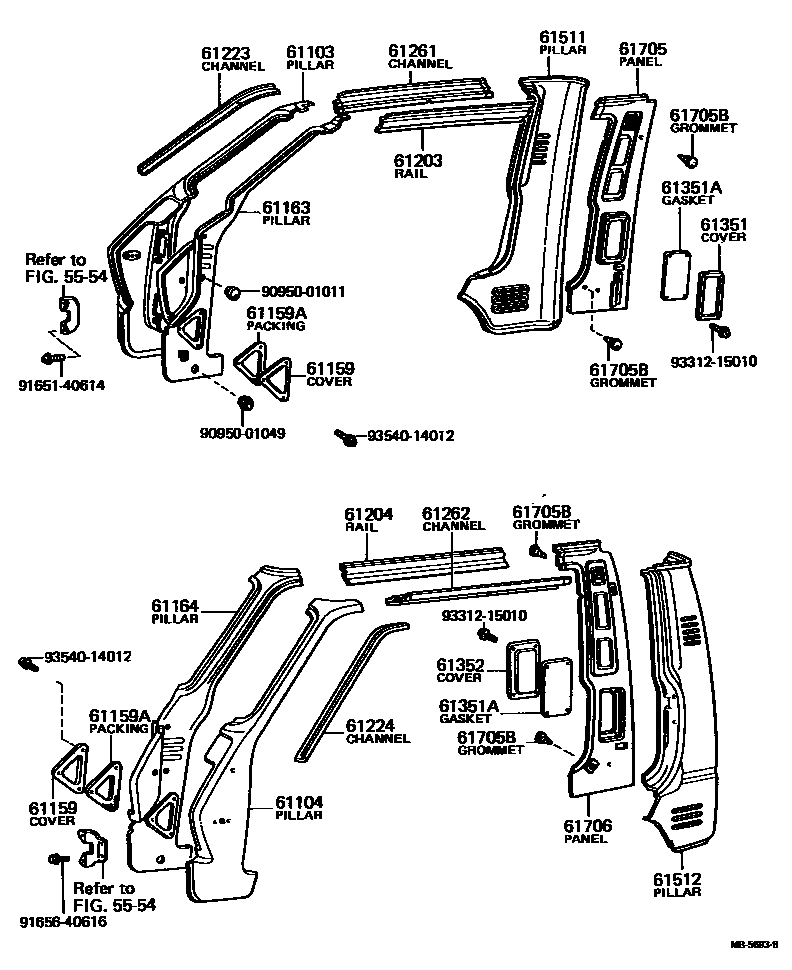

SIDE MEMBER
5554
61103PILLAR SUB-ASSY, FRONT BODY, RH
61104PILLAR SUB-ASSY, FRONT BODY, LH
61159COVER, FRONT PILLAR SERVICE HOLE
61159APACKING, FRONT PILLAR SERVICE HOLE
61163PILLAR, FRONT BODY, INNER RH
61164PILLAR, FRONT BODY, INNER LH
61203RAIL SUB-ASSY, ROOF SIDE, INNER RH
61204RAIL SUB-ASSY, ROOF SIDE, INNER LH
61223CHANNEL, ROOF DRIP, FRONT RH
61224CHANNEL, ROOF DRIP, FRONT LH
61261CHANNEL, ROOF DRIP, RH
61262CHANNEL, ROOF DRIP, LH
61351COVER, CENTER BODY, INNER RH
61351AGASKET(FOR CENTER BODY INNER COVER)
61352COVER, CENTER BODY, INNER, LH
61511PILLAR, QUARTER LOCK, RH
61512PILLAR, QUARTER LOCK, LH
61705BGROMMET(FOR ROOF SIDE INNER PANEL)
9095001011
main90950-01011
9095001049
main90950-01049
9165140614
main91651-40614
9165640616
main91656-40616
9331215010
main93312-15010
9354014012
main93540-14012
27 parts on this diagram · 2 diagrams in section
