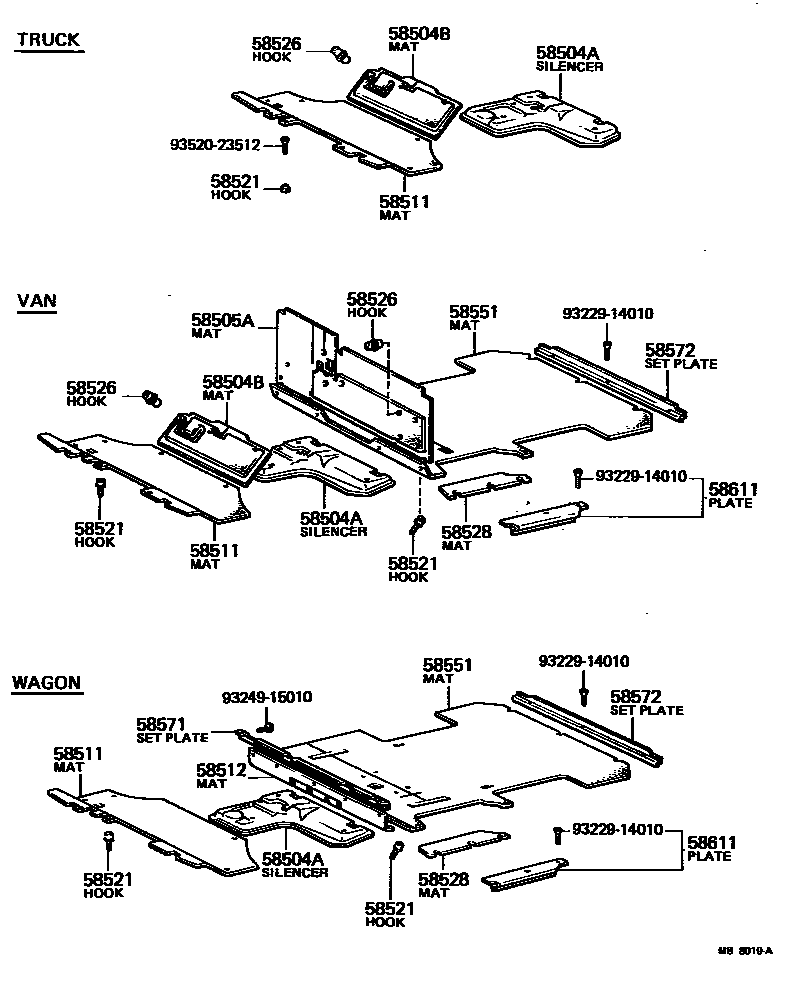

FLOOR MAT & SILENCER PAD

58504ASILENCER SUB-ASSY, ENGINE SERVICE HOLE COVER

main58625-95701iKM10..SRF197105-197511

main58625-95702iKM10..V197511-197708

main58625-95705iKM1#197708-197909

58504BMAT SUB-ASSY, FRONT FLOOR, REAR

main58504-95700-01iKM11197802-197909

BLACK,BLACK

58505AMAT SUB-ASSY, HEADER

main58507-95700-01iKM11..V197802-197909

BLACK,BLACK

58511MAT, FLOOR, FRONT

main58501-95700-01iKM10..TR,V197105-197307

BLACK,BLACK

main58501-95700-06iKM10..WG197105-197307

DARK BROWN,BROWN

main58501-95702-01iKM10..TR,V197307-197511

BLACK,BLACK

sub58501-95702

main58501-95702-06iKM10..WG197307-197408

DARK BROWN,BROWN

sub58501-95702

main58501-95702-11iKM10197511-197610

BLACK,BLACK

sub58501-95702

main58501-95705-01iKM1#197610-197909

BLACK,BLACK

58512MAT, SEAT FLOOR

main58520-95700-06iKM10..WG197105-197408

DARK BROWN,BROWN

sub58520-95700

58521HOOK, MALE, NO.1

main58521-87301iKM1#..T3197105-197909

main90530-04001iKM1#..V197501-197909

main90530-04004iKM10..SRF197105-197909

sub90530-04001

58526HOOK, MALE, NO.2

main90530-06001iKM11197802-197909

58528MAT, REAR DOOR STEP

main58505-95700-06iKM10..WG197105-197408

DARK BROWN,BROWN

sub58505-95700

main58534-95700-01iKM11..V197802-197909

BLACK,BLACK

58551MAT, FLOOR, REAR

main58503-95700-06iKM10..V197105-197511

DARK BROWN,BROWN

sub58503-95700

main58503-95701-06iKM10..WG197105-197408

DARK BROWN,BROWN

sub58503-95701

main58503-95708-01iKM1#..V197610-197909

BLACK,BLACK

main58503-95708-06iKM10..V197511-197610

DARK BROWN,BROWN

58571SET PLATE, REAR FLOOR MAT, FRONT

main58613-95700iKM10..WG197105-197408

58572SET PLATE, REAR FLOOR MAT, REAR

main58612-95700iKM1#..HRF,SRF197105-197909

58611PLATE, REAR FLOOR MAT SET, SIDE

main67913-95790iKM1#..HRF,SRF197105-197909

9322914010

main93229-14010

9324915010

main93249-15010

9352023512

main93520-23512

15 parts on this diagram · 1 diagram in section
