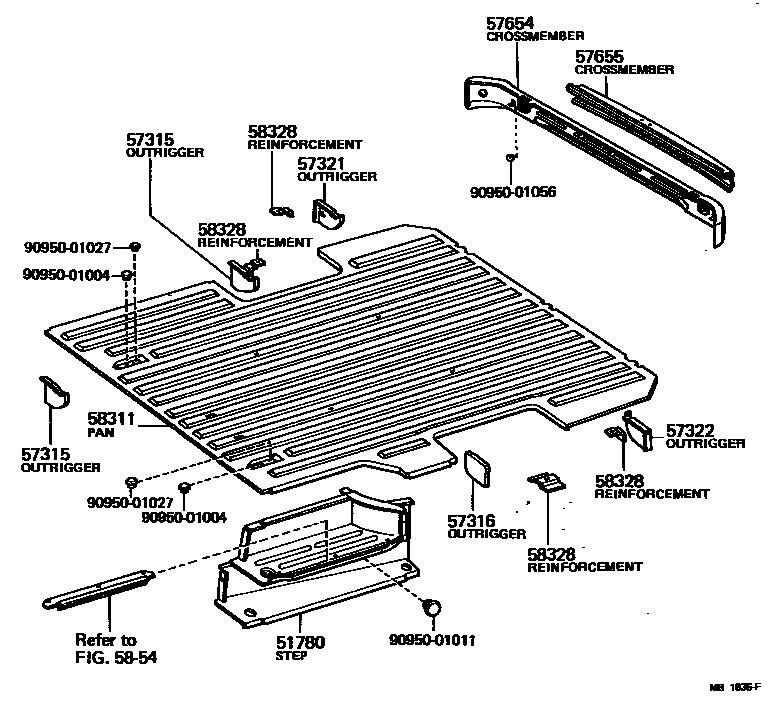

REAR FLOOR PANEL & REAR FLOOR MEMBER

51780STEP ASSY, FRONT, LH

main58302-95700iKM1#..HRF,SRF197105-197909

57315OUTRIGGER, NO.3 RH

main57317-95700iKM1#..HRF,SRF197105-197909

57316OUTRIGGER, NO.3 LH

main57318-95700iKM1#..HRF,SRF197105-197909

57321OUTRIGGER, NO.4 RH

main57321-95700iKM1#..HRF,SRF197105-197909

57322OUTRIGGER, NO.4 LH

main57322-95700iKM1#..HRF,SRF197105-197909

57654MEMBER, REAR FLOOR CROSS, NO.4

main57707-95700iKM1#..HRF,SRF197105-197909

57655MEMBER, REAR FLOOR CROSS, NO.5

main57708-95700iKM1#..HRF,SRF197105-197909

58311PAN, REAR FLOOR

main58311-95700iKM10..HRF,SRF197105-197702

sub58311-95704

main58311-95704iKM1#..V197702-197909

58328REINFORCEMENT, SAFETY BELT ANCHORAGE

main58305-95660iKM10..WG197105-197408

CENTER

main58305-95700iKM10..WG197105-197408

SIDE

5854

9095001004

main90950-01004

9095001011

main90950-01011

9095001027

main90950-01027

9095001056

main90950-01056

14 parts on this diagram · 1 diagram in section
