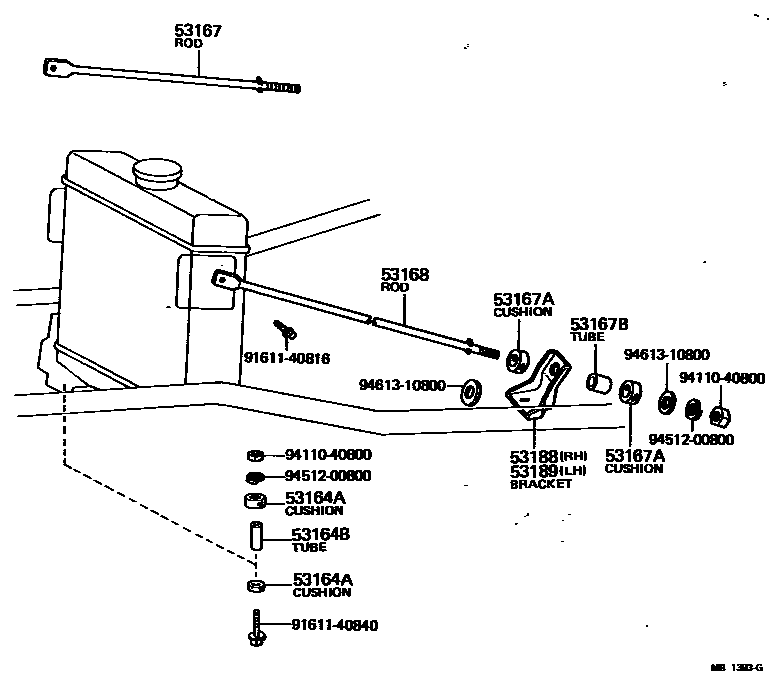

RADIATOR SUPPORT & WIND GUIDE

53164ACUSHION, RADIATOR SUPPORT

main90540-10011iKM1#197105-197909

T=14.5

main90540-10022iKM1#197105-197909

T=6.0

53164BTUBE, RADIATOR SUPPORT

main90440-11042iKM1#197105-197909

53167ROD, RADIATOR BRACE, RH

main53167-27010iKM10197105-197802

main53167-27020iKM11197802-197806

sub53167-27021

main53167-27021iKM11197806-197909

53167ACUSHION(FOR RADIATOR BRACE ROD)

main90540-10022iKM1#197105-197909

T=6.0

53167BTUBE(FOR RADIATOR BRACE ROD)

main90440-11043iKM1#197105-197909

53168ROD, RADIATOR BRACE, LH

main53169-27010iKM10197105-197802

main53169-27020iKM11197802-197909

sub53169-27021

53188BRACKET, RADIATOR BRACE ROD, RH

main53166-27010iKM10197105-197802

main53221-27010iKM11197802-197909

53189BRACKET, RADIATOR BRACE ROD, LH

main53168-27010iKM10197105-197802

main53222-27010iKM11197802-197909

9161140816

main91611-40816

9161140840

main91611-40840

9411040800

main94110-40800

9451200800

main94512-00800

9461310800

main94613-10800

13 parts on this diagram · 1 diagram in section
