REAR BUMPER & BUMPER STAY

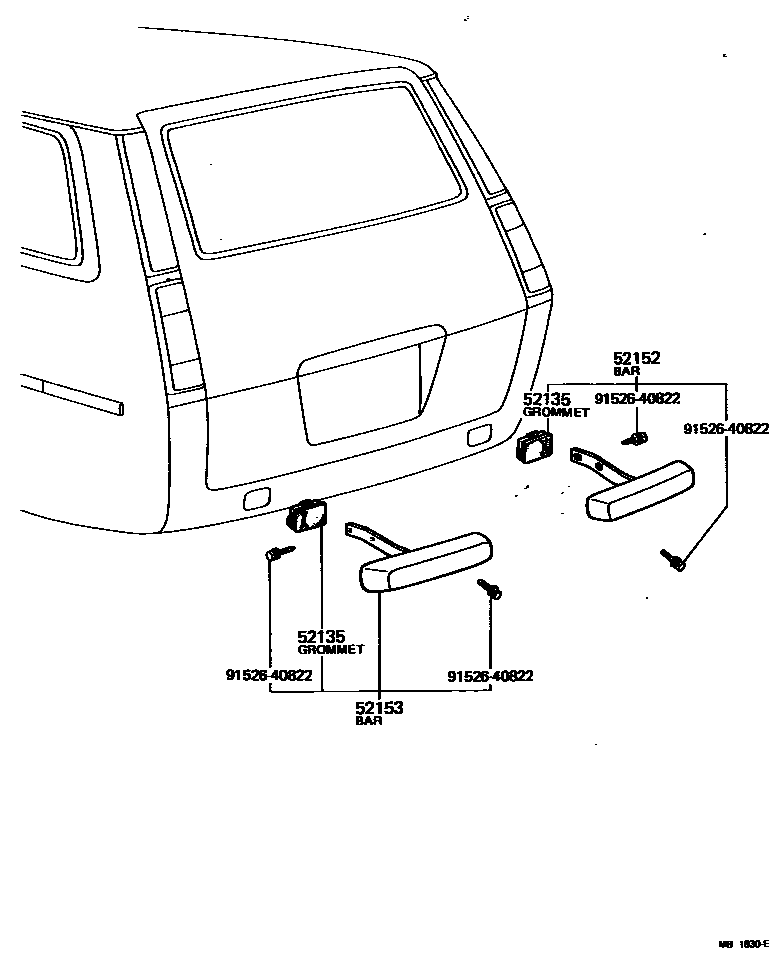

Parts diagram

52135GROMMET, REAR BUMPER STAY

main52191-95700i197105-197909

52152BAR, REAR BUMPER, RH

main52102-95790i197105-197909

52153BAR, REAR BUMPER, LH

main52103-95790i197105-197909

9152640822

main91526-40822

4 parts on this diagram · 1 diagram in section
