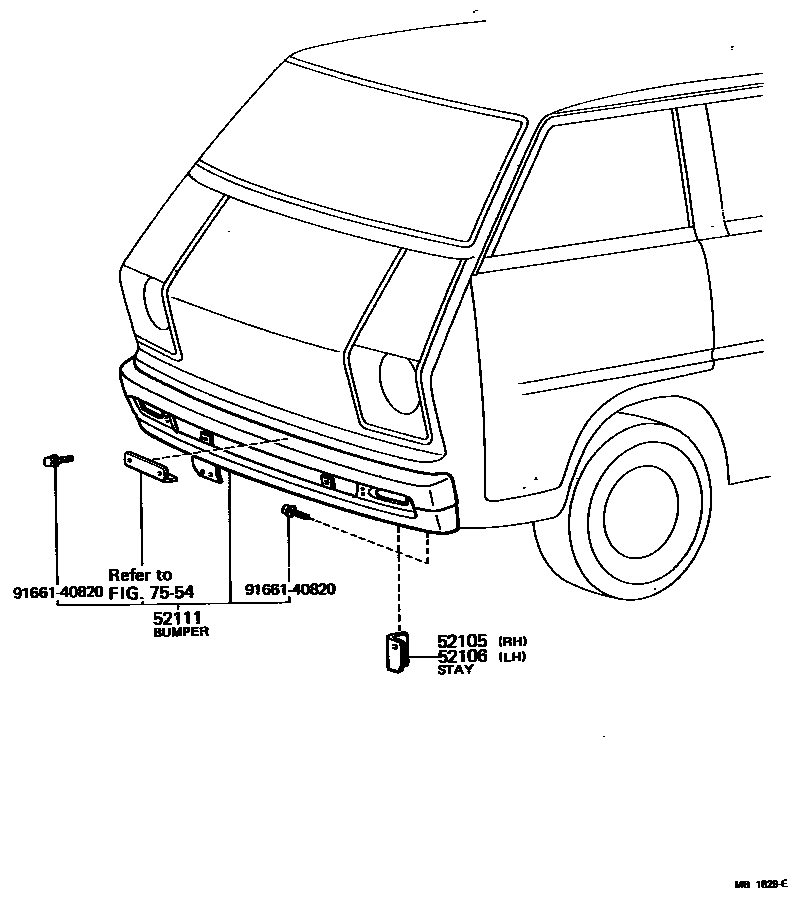

FRONT BUMPER & BUMPER STAY

52105STAY SUB-ASSY, FRONT BUMPER, RH

main52141-27010iKM1#..T3197105-197909

52106STAY SUB-ASSY, FRONT BUMPER, LH

main52142-27010iKM10..TR197105-197909

52111BUMPER ASSY, FRONT

main52101-29015iKM11..T3197802-197909

sub52101-87403

main52101-87480iKM10..TR197105-197802

sub52101-29015

main52101-95790iKM10..HRF,SRF197105-197802

sub52101-95792

main52101-95792iKM11..V197802-197909

7554

9166140820

main91661-40820

5 parts on this diagram · 1 diagram in section
