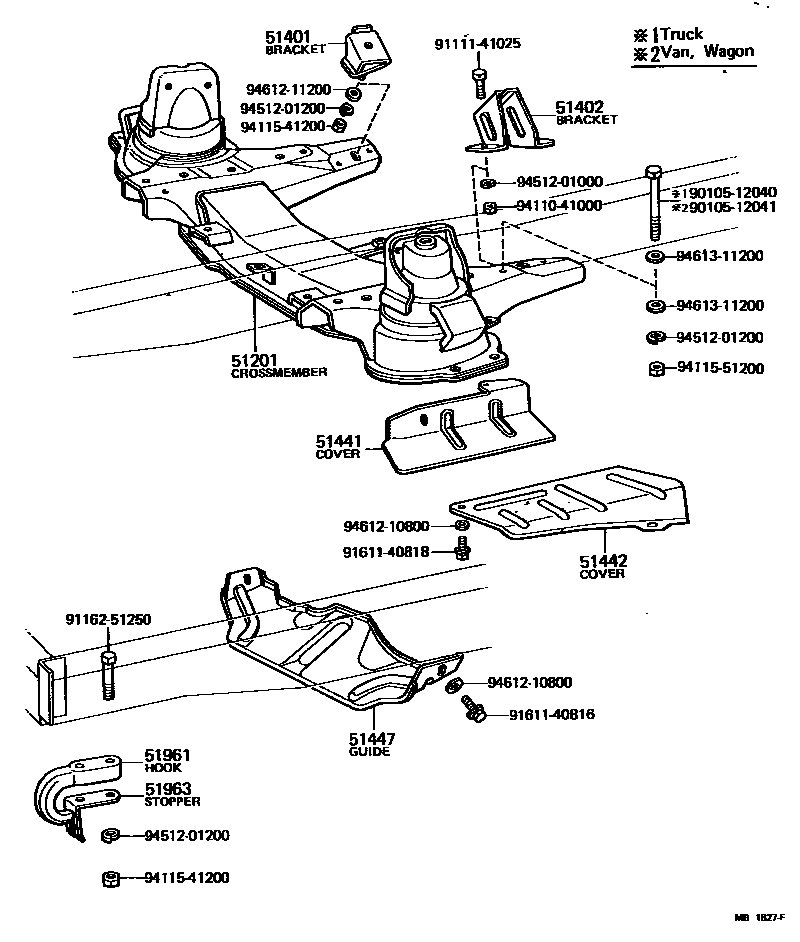

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51202-27010iKM1#197105-197808

main51202-27011iKM11197808-197909

51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

main51401-27010iKM10197105-197802

sub51401-27011

main51401-27011iKM11197802-197909

51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51422-27010iKM10197105-197802

sub51422-27011

main51422-27011iKM11197802-197909

51441COVER, ENGINE UNDER, NO.1

main51441-27010iKM1#197105-197909

51442COVER, ENGINE UNDER, NO.2

main51442-27010iKM10197105-197307

sub51442-27011

main51442-27011iKM1#197307-197909

51447GUIDE, ENGINE UNDER COVER AIR

main51409-27010iKM10197105-197511

51961HOOK, NO.1

main51961-60010iKM1#197105-197909

51963STOPPER, HOOK WIRE

main51963-35010iKM1#197105-197909

sub51963-35080

9010512040

main90105-12040

9010512041

main90105-12041

9111141025

main91111-41025

9116251250

main91162-51250

9161140816

main91611-40816

9161140818

main91611-40818

9411041000

main94110-41000

9411541200

main94115-41200

9411551200

main94115-51200

9451201000

main94512-01000

9451201200

main94512-01200

9461210800

main94612-10800

9461211200

main94612-11200

9461311200

main94613-11200

22 parts on this diagram · 1 diagram in section
