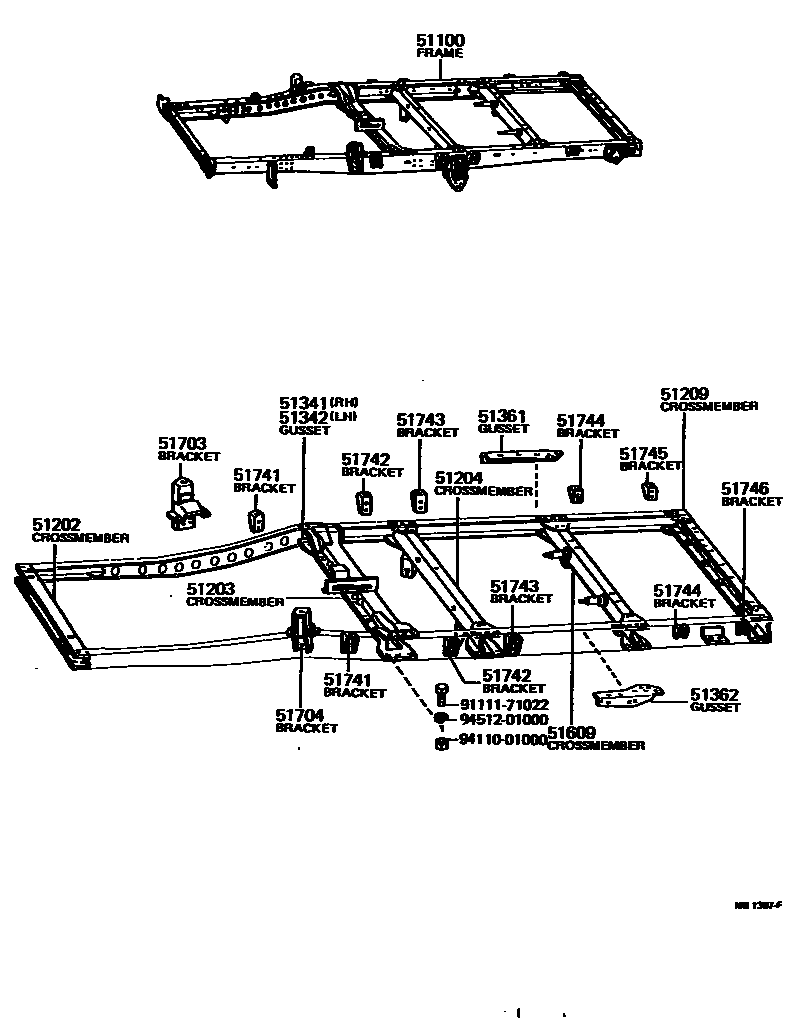

FRAME
51202CROSSMEMBER SUB-ASSY, FRAME, NO.1
51203CROSSMEMBER SUB-ASSY, FRAME, NO.2
51204CROSSMEMBER SUB-ASSY, FRAME, NO.3
51209CROSSMEMBER SUB-ASSY, FRAME, NO.8
51341GUSSET, FRAME NO.4 CROSSMEMBER, RH
51342GUSSET, FRAME NO.4 CROSSMEMBER, LH
51361GUSSET, CROSSMEMBER, NO.6 RH
51362GUSSET, CROSSMEMBER, NO.6 LH
51609CROSSMEMBER SUB-ASSY, REAR SHOCK ABSORBER SUPPORT
51741BRACKET, REAR BODY MOUNTING, NO.1
51742BRACKET, BODY MOUNTING, NO.2
51743BRACKET, BODY MOUNTING, NO.3
51744BRACKET, BODY MOUNTING, NO.4
51745BRACKET, BODY MOUNTING, NO.5
51746BRACKET, BODY MOUNTING, NO.6
9111171022
main91111-71022
9411001000
main94110-01000
9451201000
main94512-01000
21 parts on this diagram · 1 diagram in section
