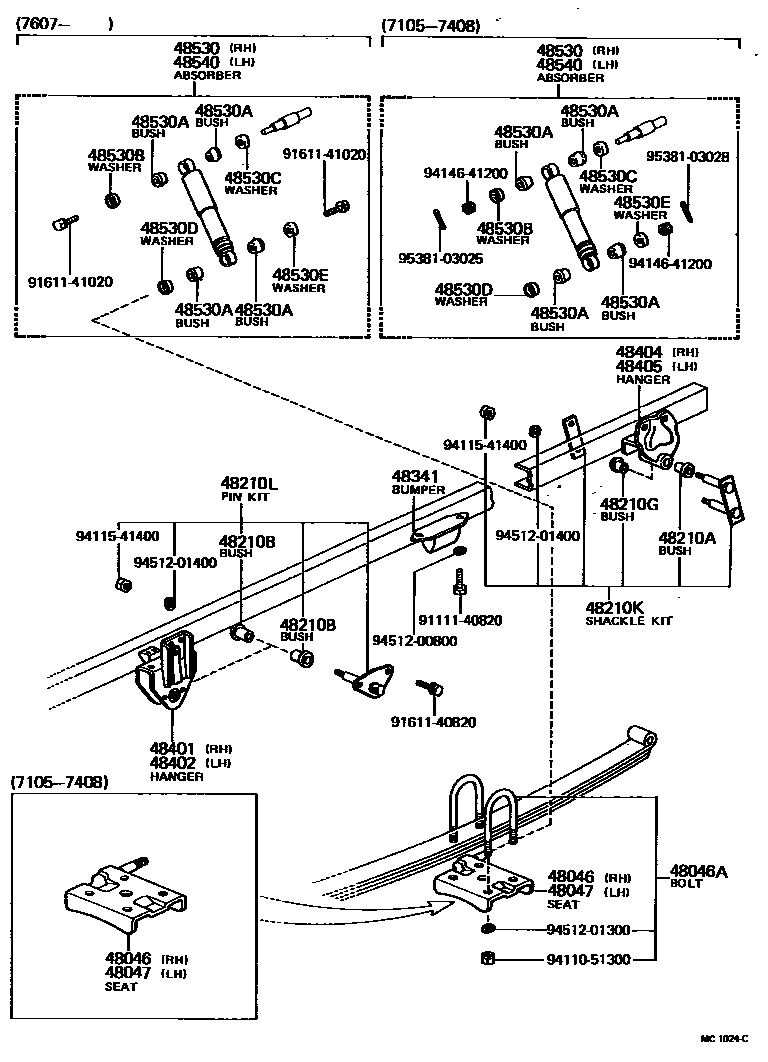

REAR SPRING & SHOCK ABSORBER
48046SEAT SUB-ASSY, SPRING U BOLT, RH
48046ABOLT, U(FOR REAR SPRING)
sub90118-13079
48047SEAT SUB-ASSY, SPRING U BOLT, LH
48210ABUSH(FOR REAR SPRING SHACKLE UPPER)
48210BBUSH(FOR REAR SPRING PIN)
48210GBUSH(FOR REAR SPRING SHACKLE LOWER)
48210KSHACKLE KIT, REAR SPRING
sub04483-35040
48210LPIN KIT, REAR SPRING
sub04482-35030
48341BUMPER, REAR SPRING
48401BRACKET SUB-ASSY, REAR SPRING, FRONT RH
48402BRACKET SUB-ASSY, REAR SPRING, FRONT LH
48404BRACKET SUB-ASSY, REAR SPRING, REAR RH
48405BRACKET SUB-ASSY, REAR SPRING, REAR LH
48530ABUSH(FOR REAR SHOCK ABSORBER)
48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1
OD=34 ID=13 T=3.7
OD=34 ID=11 T=4.3
48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2
OD=34 ID=17 T=3.7
48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3
OD=34 ID=17 T=3.7
48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4
OD=34 ID=13 T=3.7
OD=34 ID=11 T=4.3
9111140820
main91111-40820
9161140820
main91611-40820
9161141020
main91611-41020
9411051300
main94110-51300
9411541400
main94115-41400
9414641200
main94146-41200
9451200800
main94512-00800
9451201300
main94512-01300
9451201400
main94512-01400
9538103025
main95381-03025
9538103028
main95381-03028
32 parts on this diagram · 3 diagrams in section
