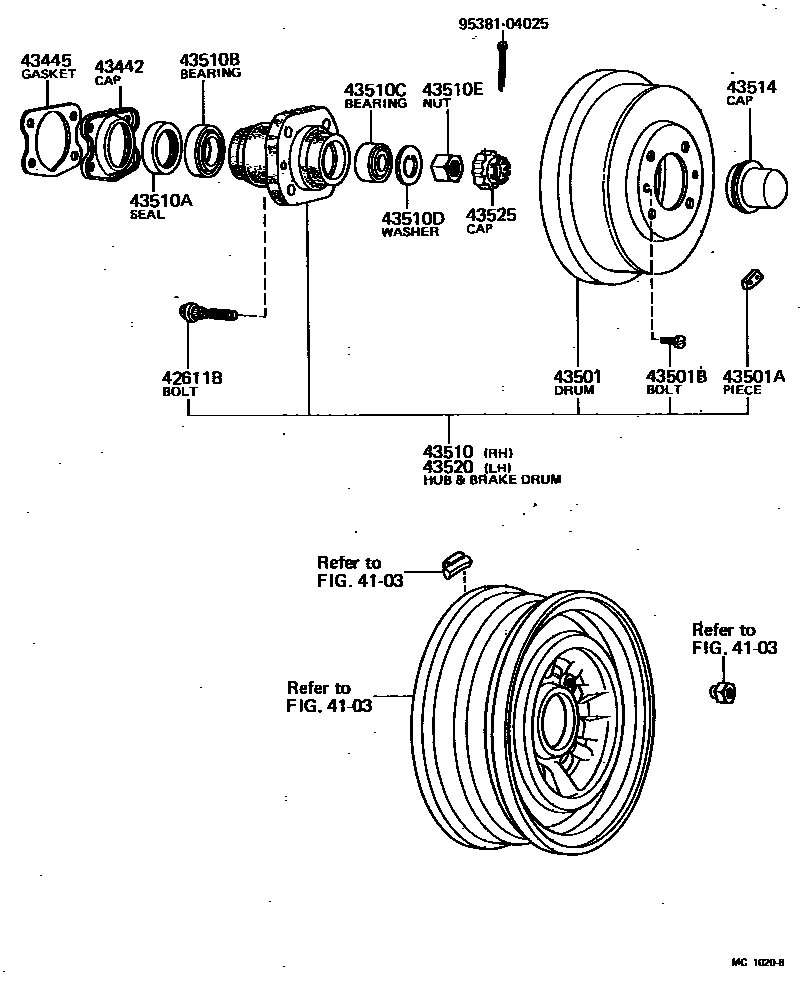

FRONT AXLE HUB

4103

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02021iKM10197105-197703

12-1.5PX38-24

sub90942-02035

main90942-02037iKM1#197703-197909

12-1.5PX40-27.5

sub90942-02049

43442CAP, KNUCKLE GREASE RETAINER, INNER

main43442-20010iKM10197105-197110

sub43442-20020

main43442-20020iKM1#197110-197909

43445GASKET, KNUCKLE GREASE RETAINER CAP

main43445-20010iKM10197105-197110

T=1.0

sub43445-20020

main43445-20020iKM1#197110-197909

T=1.0

43501DRUM SUB-ASSY, FRONT BRAKE

main42431-22021iKM10197105-197110

sub42431-27010

main42431-27010iKM10197110-197309

sub42431-27011

main42431-27011iKM1#197309-197909

43501APIECE, BALANCE (FOR FRONT BRAKE DRUM)

main90937-01096iKM1#197105-197909

8.5G,8.5G.

main90937-01097iKM1#197105-197909

16.5G,16.5G.

main90937-01098iKM1#197105-197909

24.5G,24.5G.

main90937-01099iKM1#197105-197909

32.5G,32.5G.

main90937-01100iKM1#197105-197909

40.5G,40.5G.

43501BBOLT, SET (FOR FRONT BRAKE DRUM SETTING)

main90113-10007iKM10197105-197909

43510HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH

main43510-22041iKM10197105-197110

sub43510-27010

main43510-27010iKM1#197110-197909

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-40108iKM1#197105-197909

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90368-26013iKM1#197105-197909

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-17017iKM1#197105-197909

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-16010iKM1#197105-197909

43510ENUT (FOR STEERING KNUCKLE)

main90170-16137iKM1#197105-197909

sub94125-41600

43514CAP, FRONT HUB GREASE

main43514-20010iKM1#197105-197909

43520HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH

main43510-22041iKM10197105-197110

sub43510-27010

main43510-27010iKM1#197110-197909

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-20011iKM1#197105-197909

9538104025

main95381-04025

17 parts on this diagram · 1 diagram in section
