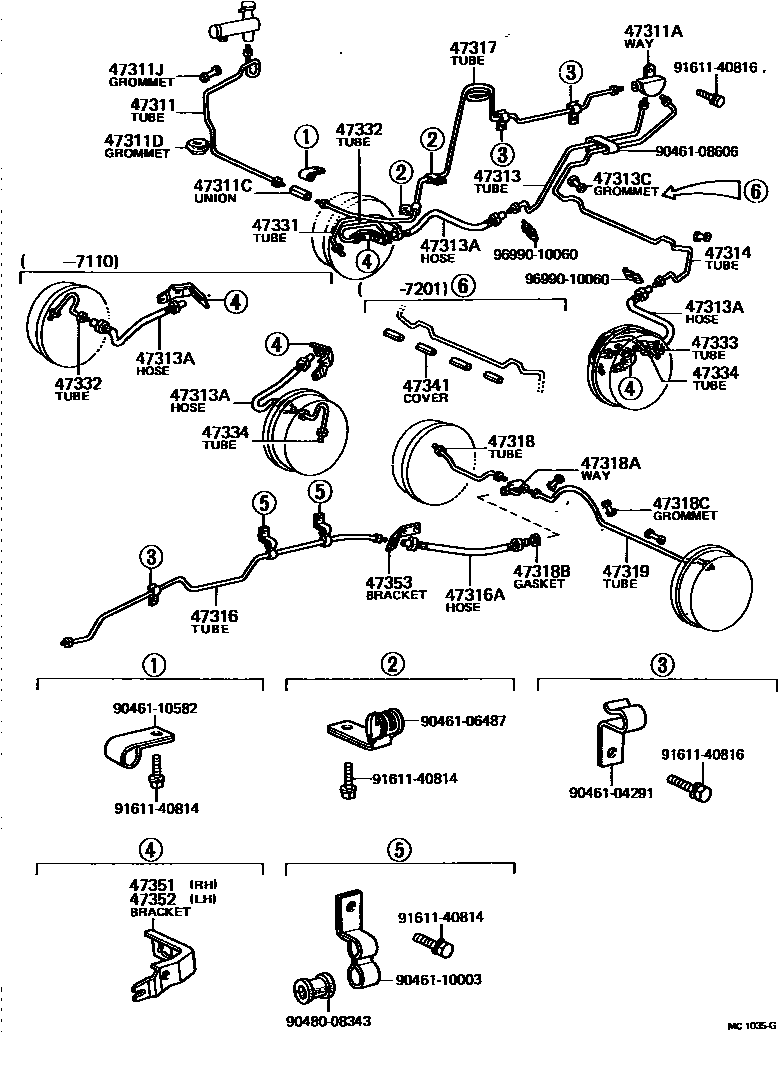

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1

47311TUBE, FRONT BRAKE, NO.1

main47311-27011iKM10197105-197309

FOR SINGLE

main47311-27020iKM1#197309-197909

FOR TANDEM

47311AWAY(FOR FRONT BRAKE TUBE)

main90413-10043iKM11..T3197802-197909

main90413-10135iKM11..V197309-197909

main90414-10030iKM10197105-197309

47311CUNION(FOR FRONT BRAKE TUBE)

main90404-10140iKM1#197105-197909

47311DGROMMET(FOR FRONT BRAKE TUBE)

main90480-01436iKM1#197309-197909

main90480-01437iKM10197307-197309

sub90480-01436

main90480-15083iKM10197105-197307

47311JGROMMET, NO.1(FOR FRONT BRAKE TUBE)

main90480-08343iKM10197201-197309

47313TUBE, FRONT BRAKE, NO.3

main47313-27011iKM1#197105-197909

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02190iKM10197105-197307

sub90947-02202

main90947-02202iKM1#197307-197902

sub96950-32855

main96950-32855iKM11197902-197909

47313CGROMMET, NO.3(FOR FRONT BRAKE TUBE)

main90480-08343iKM1#197201-197909

47314TUBE, FRONT BRAKE, NO.4

main47314-27011iKM1#197105-197909

47316TUBE, FRONT BRAKE, NO.6

main47316-27010iKM10..TR197105-197309

FOR L/L.S.P.V.

main47316-27020iKM10..SRF197105-197309

FOR L/L.S.P.V.

main47317-27020iKM10..TR197309-197408

FOR W/L.S.P.V.

main47317-27030iKM10..SRF197309-197511

FOR W/L.S.P.V.

main47339-27010iKM10..TR197309-197909

FOR L/L.S.P.V.

main47339-27020iKM1#..HRF,SRF197309-197909

FOR L/L.S.P.V.

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02154iKM10197105-197307

sub90947-02217

main90947-02217iKM1#197307-197909

47317TUBE, FRONT BRAKE, NO.7

main47316-27030iKM10..TR197309-197909

FOR TANDEM

main47316-27040iKM10..HRF,SRF197309-197802

FOR TANDEM

main47316-27050iKM11..V197802-197909

FOR TANDEM

main47317-27011iKM10197105-197309

FOR SINGLE

47318TUBE, FRONT BRAKE, NO.8

main47318-27010iKM1#197105-197909

47318AWAY(FOR REAR RH BRAKE TUBE)

main90413-10072iKM1#197105-197909

47318BGASKET(FOR REAR RH BRAKE TUBE)

main90430-10027iKM1#197105-197909

T=1.2,ID=10

47318CGROMMET(FOR REAR RH BRAKE TUBE)

main90480-08343iKM10197201-197612

47319TUBE, FRONT BRAKE, NO.9

main47319-27010iKM10197105-197612

main47319-27011iKM1#197612-197909

47331TUBE, REAR BRAKE, NO.10

main47331-27013iKM10197110-197610

main47342-27010iKM1#197610-197909

47332TUBE, REAR BRAKE, NO.11

main47331-27011iKM10197105-197107

sub47331-27012

main47331-27012iKM10197107-197110

main47332-27010iKM10197110-197610

main47341-27010iKM1#197610-197909

47333TUBE, REAR BRAKE, NO.12

main47331-27013iKM10197110-197610

main47343-27010iKM1#197610-197909

47334TUBE, REAR BRAKE, NO.13

main47333-27011iKM10197105-197107

sub47333-27012

main47333-27012iKM10197107-197110

main47334-27010iKM10197110-197610

main47344-27010iKM1#197610-197909

47341COVER, TUBE

main47341-25010iKM10..SRF197105-197201

main90044-46059iKM10..TR197105-197201

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-27010iKM10197105-197110

main47351-27012iKM1#197110-197909

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47351-27010iKM10197105-197110

main47354-27011iKM1#197110-197909

47353BRACKET, FLEXIBLE HOSE(FOR REAR)

main47352-27011iKM10..TR197105-197909

main47352-27020iKM1#..HRF,SRF197105-197909

9046104291

main90461-04291

9046106487

main90461-06487

9046108606

main90461-08606

9046110003

main90461-10003

9046110582

main90461-10582

9048008343

main90480-08343

9161140814

main91611-40814

9161140816

main91611-40816

9699010060

main96990-10060

34 parts on this diagram · 4 diagrams in section
