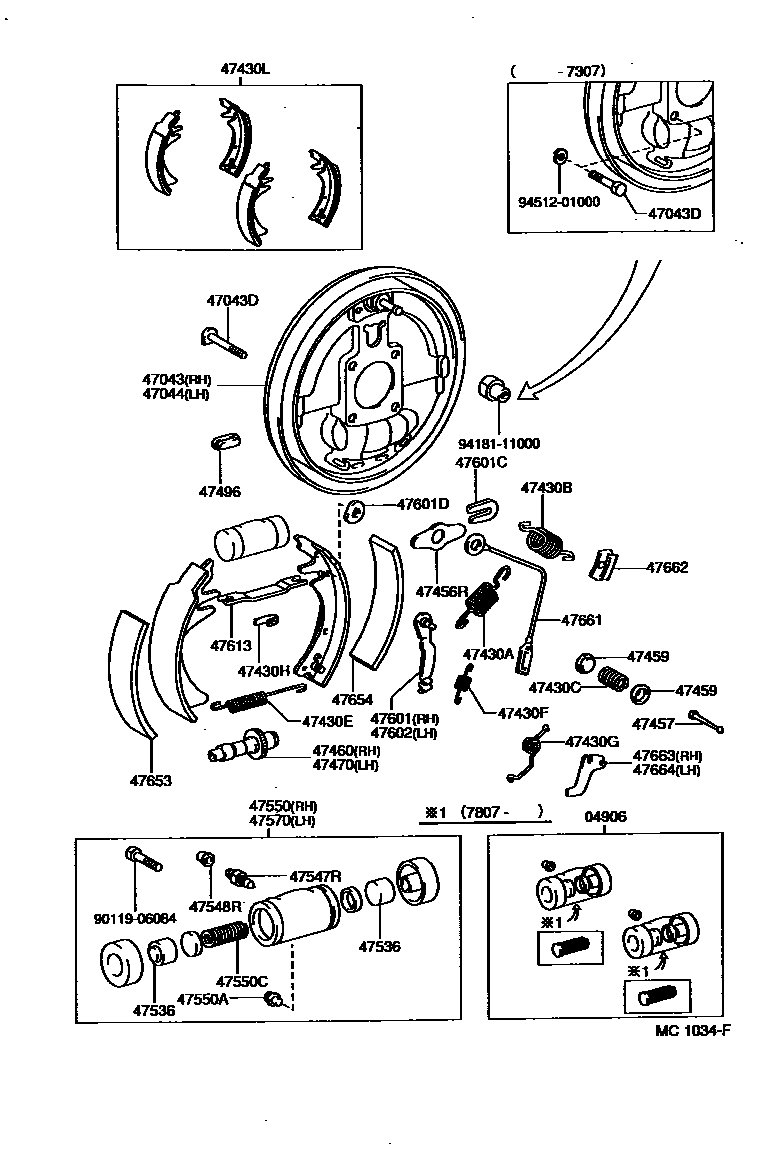

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE
47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH
47043DBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH
47430ASPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
47430BSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)
47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
47430FSPRING, TENSION(FOR REAR BRAKE ADJUST CABLE)
47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)
RH.
LH.
47430HSPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT)
47430LSHOE KIT, REAR BRAKE
sub04494-20021
47456RPLATE, REAR BRAKE SHOE GUIDE
47457PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47460ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)
47470ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)
47496PLUG, HOLE(FOR REAR BRAKE)
47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)
47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)
47550ASEAT, UNION(FOR REAR WHEEL BRAKE CYLINDER)
47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)
47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)
47601CWASHER, C(FOR REAR BRAKE)
T=1.6
47601DWASHER, WAVE(FOR REAR BRAKE)
47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)
47613STRUT, PARKING BRAKE SHOE (FOR REAR BRAKE)
47653LINING, REAR BRAKE SHOE(FOR FRONT OR UPPER)
sub47651-20050
47654LINING, REAR BRAKE SHOE(FOR REAR OR LOWER)
sub47655-20022
47661CABLE, AUTOMATIC ADJUST(FOR REAR BRAKE)
47662GUIDE, AUTOMATIC ADJUST CABLE(FOR REAR BRAKE)
47663LEVER, AUTOMATIC ADJUST, RH(FOR REAR BRAKE)
47664LEVER, AUTOMATIC ADJUST, LH(FOR REAR BRAKE)
9011906084
main90119-06084
9418111000
main94181-11000
9451201000
main94512-01000
39 parts on this diagram · 1 diagram in section
