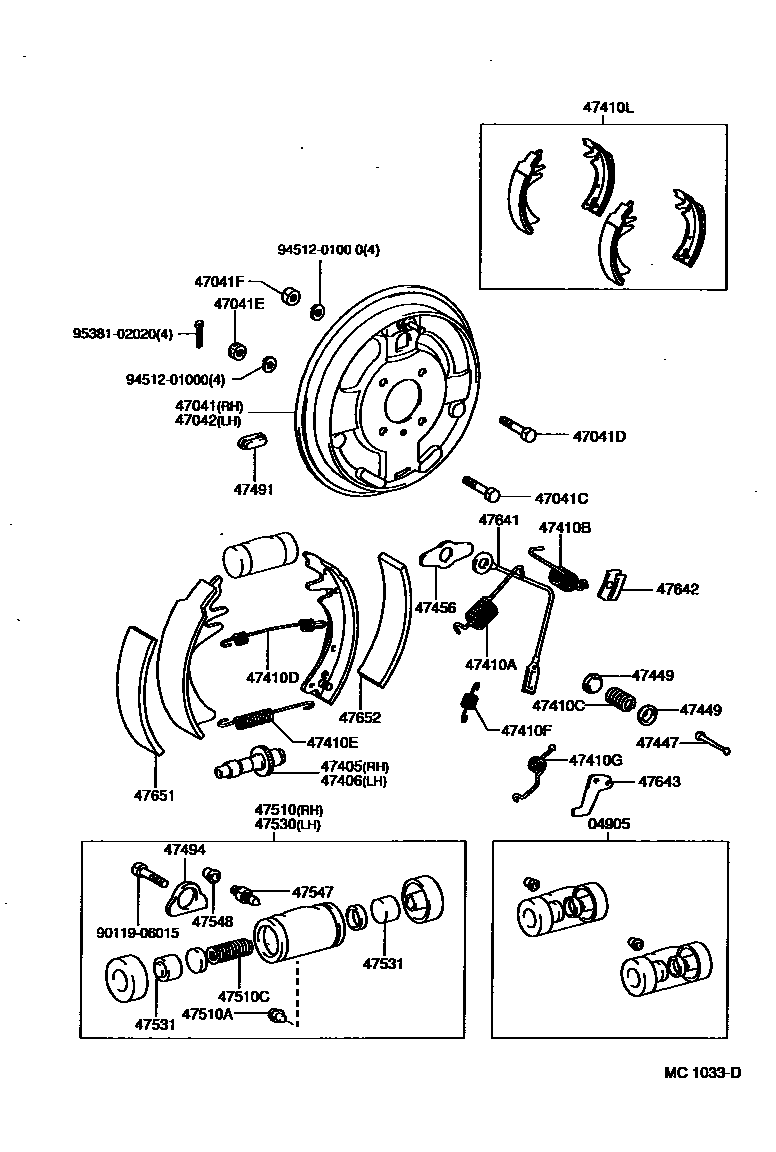

FRONT DRUM BRAKE WHEEL CYLINDER & BACKING PLATE
04905CUP KIT, FRONT WHEEL CYLINDER
47041PLATE SUB-ASSY, BRAKE BACKING, FRONT RH
47041CBOLT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING)
10-1.25PX54-20
10-1.25PX51-22
47041DBOLT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING)
10-1.25PX27-16
47041ENUT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING)
47041FNUT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING)
47042PLATE SUB-ASSY, BRAKE BACKING, FRONT LH
47405ADJUSTER ASSY, SHOE, RH(FOR FRONT BRAKE)
47406ADJUSTER ASSY, SHOE, LH(FOR FRONT BRAKE)
47410ASPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)
47410BSPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)
47410CSPRING(FOR FRONT BRAKE SHOE HOLD DOWN)
47410DSPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)
47410ESPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)
47410FSPRING, TENSION (FOR FRONT BRAKE ADJUST CABLE)
47410GSPRING, TORSION (FOR FRONT BRAKE AUTOMATIC ADJUST LEVER)
RH.
LH.
47447PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)
47449CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)
sub47449-30020
47456PLATE, FRONT BRAKE SHOE GUIDE
47491PLUG, HOLE(FOR FRONT BRAKE)
47494PLATE, FRONT BRAKE SEAL
47510CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER)
sub47510-29076
sub47510-29078
sub47510-29078
sub47530-29055
47510ASEAT, UNION(FOR FRONT WHEEL BRAKE CYLINDER)
47510CSPRING, COMPRESSION(FOR FRONT WHEEL BRAKE CYLINDER)
47530CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER)
sub47510-29055
sub47530-29076
sub47530-29078
sub47530-29078
47531PISTON, WHEEL BRAKE CYLINDER(FOR FRONT BRAKE)
sub47051-22020
47547PLUG, BLEEDER(FOR FRONT DRUM BRAKE)
FOR REAR SIDE
FOR FRONT SIDE
47548CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT)
47641CABLE, AUTOMATIC ADJUST(FOR FRONT BRAKE)
47642GUIDE, AUTOMATIC ADJUST CABLE(FOR FRONT BRAKE)
47643LEVER, AUTOMATIC ADJUST, RH(FOR FRONT BRAKE)
47651LINING, FRONT BRAKE SHOE(FOR FRONT OR UPPER)
STD
STD
47652LINING, FRONT BRAKE SHOE(FOR REAR OR LOWER)
STD
STD
9011906015
main90119-06015
9451201000
main94512-01000
9538102020
main95381-02020
