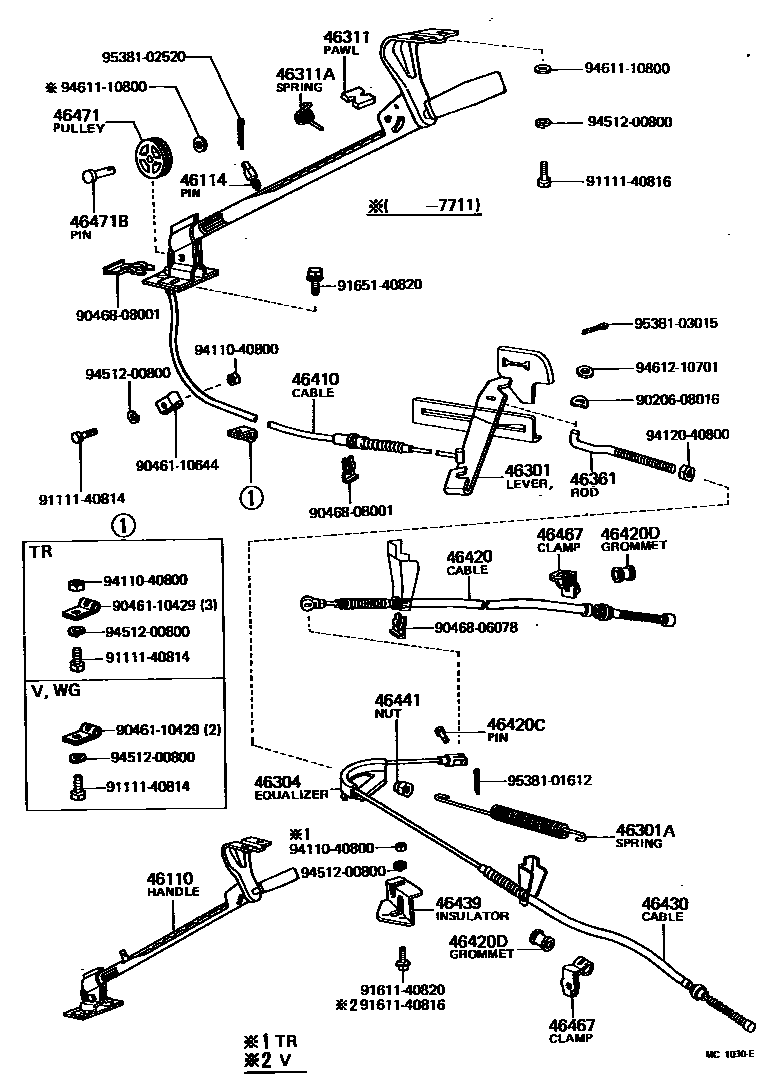

PARKING BRAKE & CABLE
46114PIN, PARKING BRAKE PLUNGER
46301ASPRING, TENSION(FOR INTERMEDIATE LEVER)
46304EQUALIZER SUB-ASSY, PARKING BRAKE
46311PAWL, PARKING BRAKE
46311ASPRING(FOR PARKING BRAKE PAWL)
46361ROD, PARKING BRAKE PULL
46410CABLE ASSY, PARKING BRAKE, NO.1
L=2264.5
L=2249.5
L=2264.5
46420CABLE ASSY, PARKING BRAKE, NO.2
L=959
46420CPIN, W/HOLE(FOR PARKING BRAKE CABLE)
46420DGROMMET OR BUSH(FOR PARKING BRAKE CABLE CLAMP)
46430CABLE ASSY, PARKING BRAKE, NO.3
L=1549
46439INSULATOR, PARKING BRAKE CABLE HEAT
46441NUT, WIRE ADJUSTING, NO.1
46471PULLEY, WIRE
46471BPIN, W/HOLE(FOR WIRE PULLEY SET)
9020608016
main90206-08016
9046110429
main90461-10429
9046110644
main90461-10644
9046806078
main90468-06078
9046808001
main90468-08001
9111140814
main91111-40814
9111140816
main91111-40816
9161140816
main91611-40816
9161140820
main91611-40820
9165140820
main91651-40820
9411040800
main94110-40800
9412040800
main94120-40800
9451200800
main94512-00800
9461110800
main94611-10800
9461210701
main94612-10701
9538101612
main95381-01612
9538102520
main95381-02520
9538103015
main95381-03015
36 parts on this diagram · 1 diagram in section
