STEERING COLUMN & SHAFT

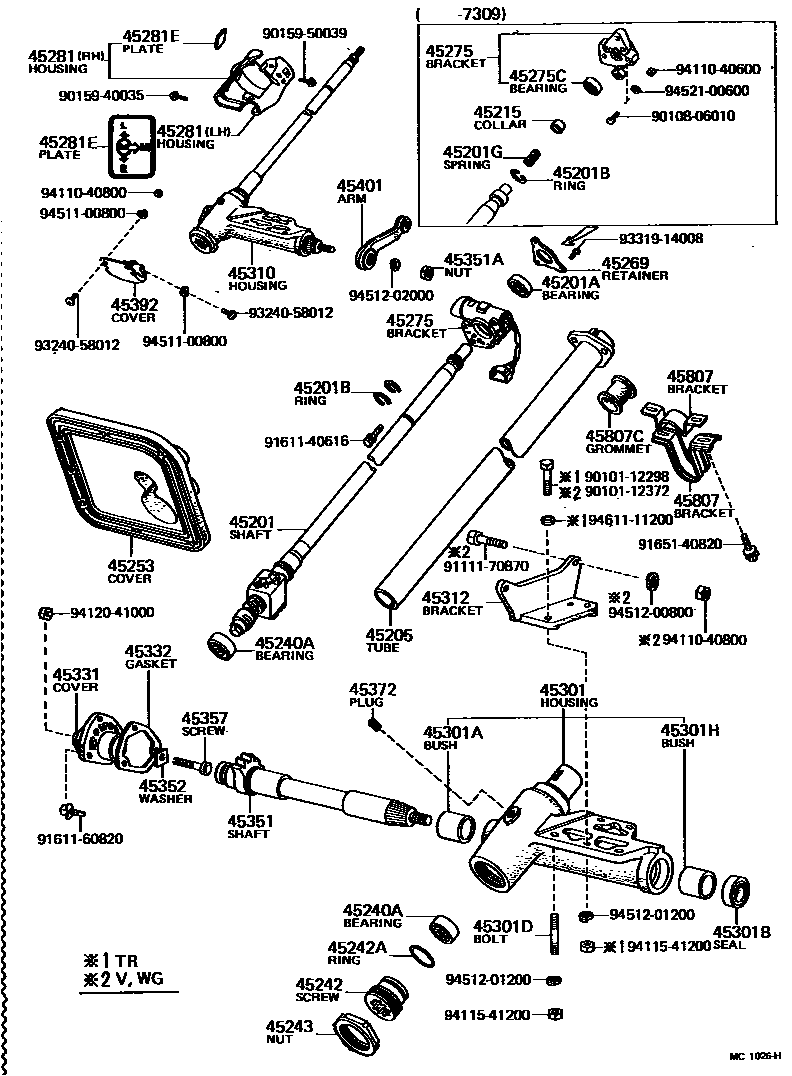

Parts diagram
45201SHAFT SUB-ASSY, STEERING MAIN
main45220-27010i197105-197309
L/STEERING LOCK
main45220-27020i197309-197310
L/STEERING LOCK
main45220-27021i197310-197610
L/STEERING LOCK
sub45220-27022
main45220-27022i197610-197909
L/STEERING LOCK
main45220-27030i197309-197310
W/STEERING LOCK
main45220-27031i197310-197511
W/STEERING LOCK
main45220-27060i197610-197909
W/STEERING LOCK
45201ABEARING(FOR STEERING MAIN SHAFT)
main90363-18038i197310-197909
main90363-18042i197309-197310
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
main90520-17042i197309-197310
T=1.20,T=1.2
main90520-17106i197105-197309
T=1.2
45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)
main90501-20102i197105-197309
45205TUBE SUB-ASSY, STEERING COLUMN
main45205-27010i197309-197610
main45205-27011i197610-197909
main45251-27010i197105-197309
45215COLLAR, MAIN SHAFT BEARING THRUST
main45215-20011i197105-197309
45240ABEARING(FOR STEERING WORM)
main90369-40037i197105-197909
LOWER
main90369-42038i197105-197909
UPPER
45242SCREW, WORM BEARING ADJUSTING
main45242-12020i197105-197909
45242ARING, O(FOR WORM BEARING ADJUSTING SCREW)
main90301-51152i197105-197909
45243NUT, WORM BEARING ADJUSTING SCREW LOCK
main45243-22020i197105-197909
45253COVER, STEERING COLUMN HOLE
main55671-27010i197105-197909
45269RETAINER, MAIN SHAFT BEARING
main45269-20010i197310-197610
sub45269-35010
main45269-36010i197610-197909
45275BRACKET, STEERING COLUMN, UPPER
main45280-27010i197309-197310
L/STEERING LOCK
sub45307-27010
sub84450-27020
sub93319-13012
main45280-27011i197310-197610
L/STEERING LOCK
main45280-27020i197309-197310
W/STEERING LOCK
sub45307-27020
sub84450-27020
sub93319-13012
main45280-27021i197310-197511
W/STEERING LOCK
main45307-27010i197105-197309
L/STEERING LOCK
main45307-27011i197610-197909
L/STEERING LOCK
main45307-28010i197610-197909
W/STEERING LOCK
sub45307-28011
45275CBEARING(FOR STEERING COLUMN UPPER BRACKET)
main90369-36003i197105-197309
BA22Z-1B
45281HOUSING, STEERING COLUMN
main45286-27010i197105-197309
RH.
main45286-27020i197309-197610
RH.
main45286-27030i197610-197909
UPPER,L/STEERING LOCK
main45286-27040i197610-197909
UPPER,W/STEERING LOCK
main45287-27010i197105-197309
LH.
main45287-27020i197309-197610
LH.
main45287-28010i197610-197909
LOWER
45281EPLATE, SAFETY CAUTION
main45283-22010i197610-197909
main45283-27010i197309-197610
45301HOUSING SUB-ASSY, STEERING GEAR
main45301-27010i197105-197310
sub45301-27011
main45301-27011i197310-197909
45301ABUSH OR BEARING, SECTOR SHAFT, NO.1
main90999-73007i197105-197201
sub90999-73008
main90999-73008i197201-197909
45301BSEAL, OIL(FOR SECTOR SHAFT)
main90310-28014i197105-197909
NOK
sub90310-28027
main90310-28027i197105-197909
KOYO
45301DBOLT, STUD(FOR STEERING GEAR HOUSING)
main90116-12233i197105-197909
L=36,S=20&12
45301HBUSH OR BEARING, SECTOR SHAFT, NO.2
main90999-73007i197105-197201
sub90999-73008
main90999-73008i197201-197909
45310HOUSING ASSY, STEERING GEAR
main45310-27010i197105-197309
L/STEERING LOCK
main45310-27020i197309-197310
L/STEERING LOCK
main45310-27021i197310-197610
L/STEERING LOCK
sub45310-27022
main45310-27022i197610-197909
L/STEERING LOCK
main45310-27030i197309-197310
W/STEERING LOCK
main45310-27031i197310-197511
W/STEERING LOCK
main45310-27060i197610-197909
W/STEERING LOCK
45312BRACKET, STEERING GEAR HOUSING
main45312-27010i197105-197909
45331COVER, SECTOR SHAFT END
main45304-27010i197105-197909
45332GASKET, SECTOR SHAFT END COVER
main45332-22020i197105-197909
45351SHAFT, STEERING SECTOR
main45351-22010i197105-197909
sub45351-22020
45351ANUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING)
main90170-20147i197105-197909
45352WASHER, SECTOR SHAFT THRUST
main45352-14010i197105-197909
T=2.00,T=2.00
sub45352-12010
main45352-14020i197105-197909
T=2.04,T=2.04
sub45352-12020
main45352-14030i197105-197909
T=2.08,T=2.08
sub45352-12030
main45352-14040i197105-197909
T=2.12,T=2.12
sub45352-12040
main45352-14050i197105-197909
T=2.16,T=2.16
sub45352-12050
main45352-14060i197105-197909
T=2.20,T=2.20
sub45352-12060
45357SCREW, SECTOR SHAFT ADJUSTING
main45357-30040i197105-197909
45372PLUG, STEERING GEAR HOUSING OIL
main90345-53012i197105-197909
45392COVER, STEERING GEAR HOUSING
main45392-27010i197105-197606
ARCTIC
45401ARM SUB-ASSY, PITMAN
main45411-27010i197105-197909
45807BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT
main55661-95700i197105-197307
INNER
main55661-95701i197307-197610
INNER
main55661-95702i197610-197909
INNER
main55662-95700i197105-197307
OUTER
main55662-95701i197307-197610
OUTER
main55662-95702i197610-197909
OUTER
45807CGROMMET(FOR STEERING COLUMN CLAMP)
main90480-45092i197105-197909
9010112298
main90101-12298
9010112372
main90101-12372
9010806010
main90108-06010
9015940035
main90159-40035
9015950039
main90159-50039
9111170870
main91111-70870
9161140616
main91611-40616
9161160820
main91611-60820
9165140820
main91651-40820
9324058012
main93240-58012
9331914008
main93319-14008
9411040600
main94110-40600
9411040800
main94110-40800
9411541200
main94115-41200
9412041000
main94120-41000
9451100800
main94511-00800
9451200800
main94512-00800
9451201200
main94512-01200
9451202000
main94512-02000
9452100600
main94521-00600
9461111200
main94611-11200
