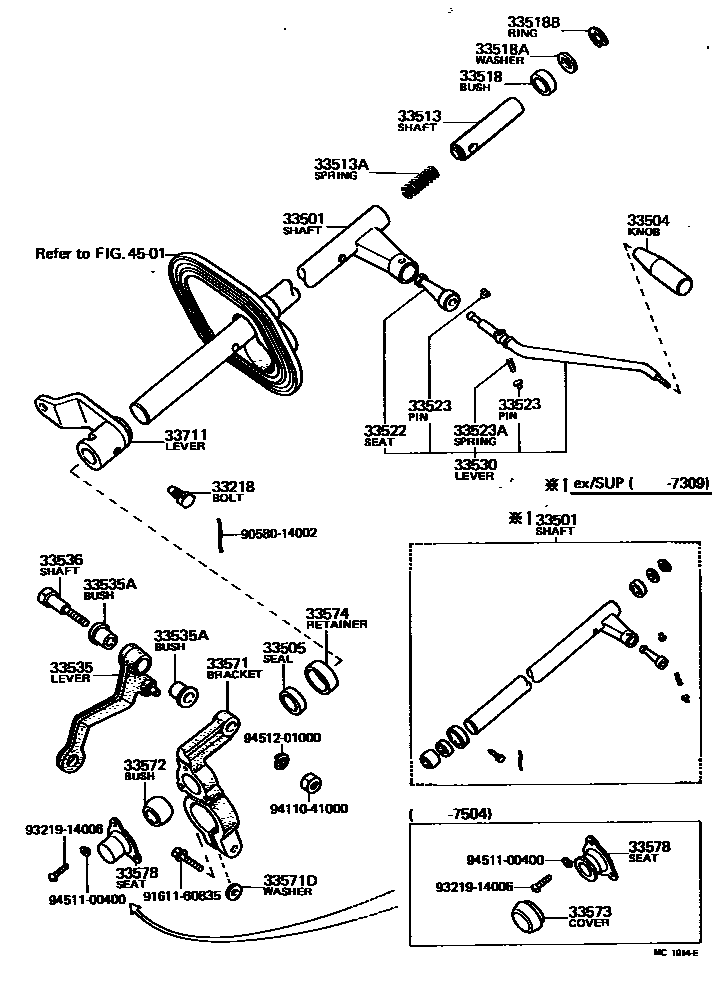

CONTROL SHAFT & CROSSSHAFT
33218BOLT, SHIFT LEVER LOCK
33504KNOB SUB-ASSY, SHIFT LEVER (FOR COLUMN SHIFT)
33505SEAL SUB-ASSY, CONTROL SHAFT DUST (FOR COLUMN SHIFT)
33513SHAFT, CONTROL SHAFT BRACKET, UPPER
33513ASPRING, COMPRESSION (FOR BRACKET UPPER SHAFT)
33518BUSH, UPPER CONTROL SHAFT PIECE
33518AWASHER, PLATE (FOR UPPER CONTROL SHAFT PIECE BUSH)
33518BRING, E (FOR UPPER CONTROL SHAFT PIECE BUSH)
33522SEAT, SHIFT LEVER PLATE (FOR COLUMN SHIFT)
33523PIN, SHIFT LEVER (FOR COLUMN SHIFT)
33530LEVER ASSY, SHIFT (FOR COLUMN SHIFT)
33535LEVER, CONTROL SELECT (FOR COLUMN SHIFT)
33535ABUSH (FOR CONTROL SELECT LEVER)
33536SHAFT, CONTROL SELECT LEVER (FOR COLUMN SHIFT)
33571BRACKET, CONTROL SHAFT, LOWER (FOR COLUMN SHIFT)
33571DWASHER, PLATE (FOR CONTROL SHAFT LOWER BRACKET)
33572BUSH, CONTROL SHAFT LOWER (FOR COLUMN SHIFT)
33573COVER, CONTROL SHAFT DUST, LOWER
33574RETAINER, DUST SEAL (FOR COLUMN SHIFT CONTROL SHAFT)
33711LEVER, CONTROL SHAFT (FOR COLUMN SHIFT)
4501
9058014002
9161160835
9321914006
main93219-14006
9411041000
9451100400
9451201000
30 parts on this diagram · 4 diagrams in section
