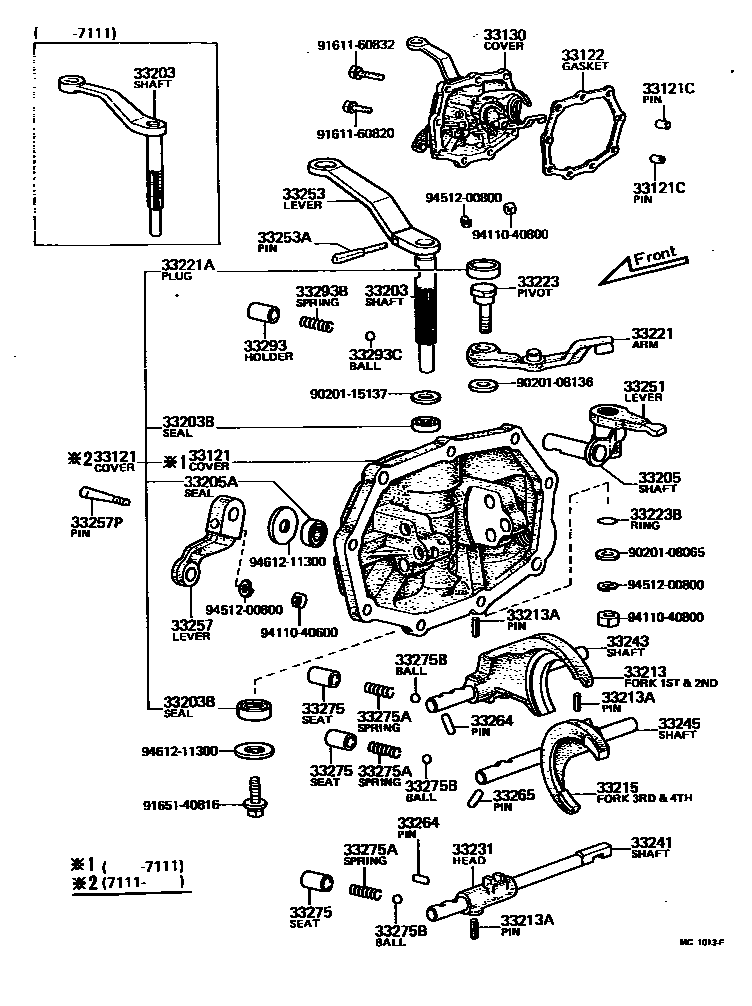

GEAR SHIFT FORK & LEVER SHAFT (MTM)

33121COVER, MANUAL TRANSMISSION CASE

main33121-26901iKM10197111-197704

main33121-26904iKM1#197704-197909

sub33102-26010

main33121-30041iKM10197105-197111

33121CPIN(FOR TRANSMISSION CASE COVER)

main90253-11001iKM1#197105-197909

L=11,OD=11

33122GASKET, MANUAL TRANSMISSION CASE COVER

main33122-30020iKM1#197105-197909

33130COVER ASSY, TRANSMISSION CASE

main33130-27010iKM10197105-197111

main33130-27020iKM1#197111-197909

33203SHAFT SUB-ASSY, SHIFT LEVER, NO.1

main33203-27010iKM10197105-197111

sub33203-26020

sub33203-27011

main33261-26021iKM1#197111-197909

33203BSEAL, OIL(FOR SHIFT LEVER SHAFT)

main90311-13050iKM1#197105-197909

LOWER

main90312-15003iKM1#197105-197909

UPPER

33205SHAFT SUB-ASSY, SELECT LEVER

main33262-27010iKM10197105-197704

main33262-28010iKM1#197704-197909

33205ASEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)

main90313-13001iKM1#197105-197909

33213FORK, 1ST & 2ND SHIFT

main33212-26010iKM10197111-197704

main33212-28010iKM1#197704-197909

main33213-30010iKM10197105-197111

sub33213-30011

33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)

main90254-05001iKM1#197105-197909

33215FORK, 3RD & 4TH SHIFT

main33213-26010iKM10197111-197704

sub33213-26020

main33213-26020iKM1#197704-197909

main33215-30010iKM10197105-197111

33221ARM, REVERSE SHIFT

main33221-30010iKM1#197105-197909

33221APLUG, TIGHT(FOR REVERSE SHIFT ARM)

main90331-25011iKM10197105-197203

sub96411-42500

main96411-12500iKM1#197203-197909

sub96411-42500

33223PIVOT, SHIFT ARM

main33223-30011iKM1#197105-197909

33223BRING, O(FOR SHIFT ARM PIVOT)

main90301-08001iKM1#197105-197909

33231HEAD, REVERSE SHIFT

main33231-26010iKM1#197704-197909

main33231-30010iKM10197105-197704

33241SHAFT, REVERSE SHIFT FORK

main33241-26010iKM1#197111-197909

main33241-30020iKM10197105-197111

33243SHAFT, 1ST & 2ND SHIFT FORK

main33242-26010iKM1#197111-197909

main33243-30010iKM10197105-197111

33245SHAFT, 3RD & 4TH SHIFT FORK

main33243-26010iKM1#197111-197909

main33245-30010iKM10197105-197111

33251LEVER, SHIFT & SELECT

main33251-26010iKM1#197704-197909

main33251-30030iKM10197105-197704

33253LEVER, SHIFT OUTER, NO.1

main33253-27011iKM1#197111-197909

33253APIN, LEVER LOCK (FOR SHIFT OUTER LEVER)

main33281-30010iKM1#197111-197909

OD=8,P=1.25

sub33281-16020

33257LEVER, SELECT OUTER

main33257-27010iKM1#197105-197909

33257PPIN, SELECT OUTER LEVER LOCK

main33282-35010iKM1#197105-197909

OD=6,P=1.0

33264PIN, OR BALL, SHIFT INTERLOCK, NO.1

main33264-30010iKM1#197105-197909

OD=6,L=16

33265PIN, SHIFT INTERLOCK, NO.2

main33265-30010iKM1#197105-197909

L=28.8,OD=6.0

33275SEAT, SHIFT DETENT BALL SPRING, NO.1

main33275-10010iKM1#197105-197909

33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)

main90501-14638iKM1#197111-197909

L=15.2

main90501-16280iKM10197105-197111

33275BBALL, SHAFT DETENT

main90360-10003iKM1#197105-197909

33293HOLDER, REVERSE RESTRICT BALL

main33276-10010iKM1#197105-197909

33293BSPRING, COMPRESSION (FOR REVERSE RESTRICT BALL)

main90501-14007iKM1#197508-197909

main90501-16041iKM10197105-197508

33293CBALL (FOR REVERSE RESTRICT)

main90360-10003iKM1#197105-197909

9020108065

main90201-08065

9020108136

main90201-08136

9020115137

main90201-15137

9161160820

main91611-60820

9161160832

main91611-60832

9165140816

main91651-40816

9411040600

main94110-40600

9411040800

main94110-40800

9451200600

main94512-00600

9451200800

main94512-00800

9461211300

main94612-11300

43 parts on this diagram · 1 diagram in section
