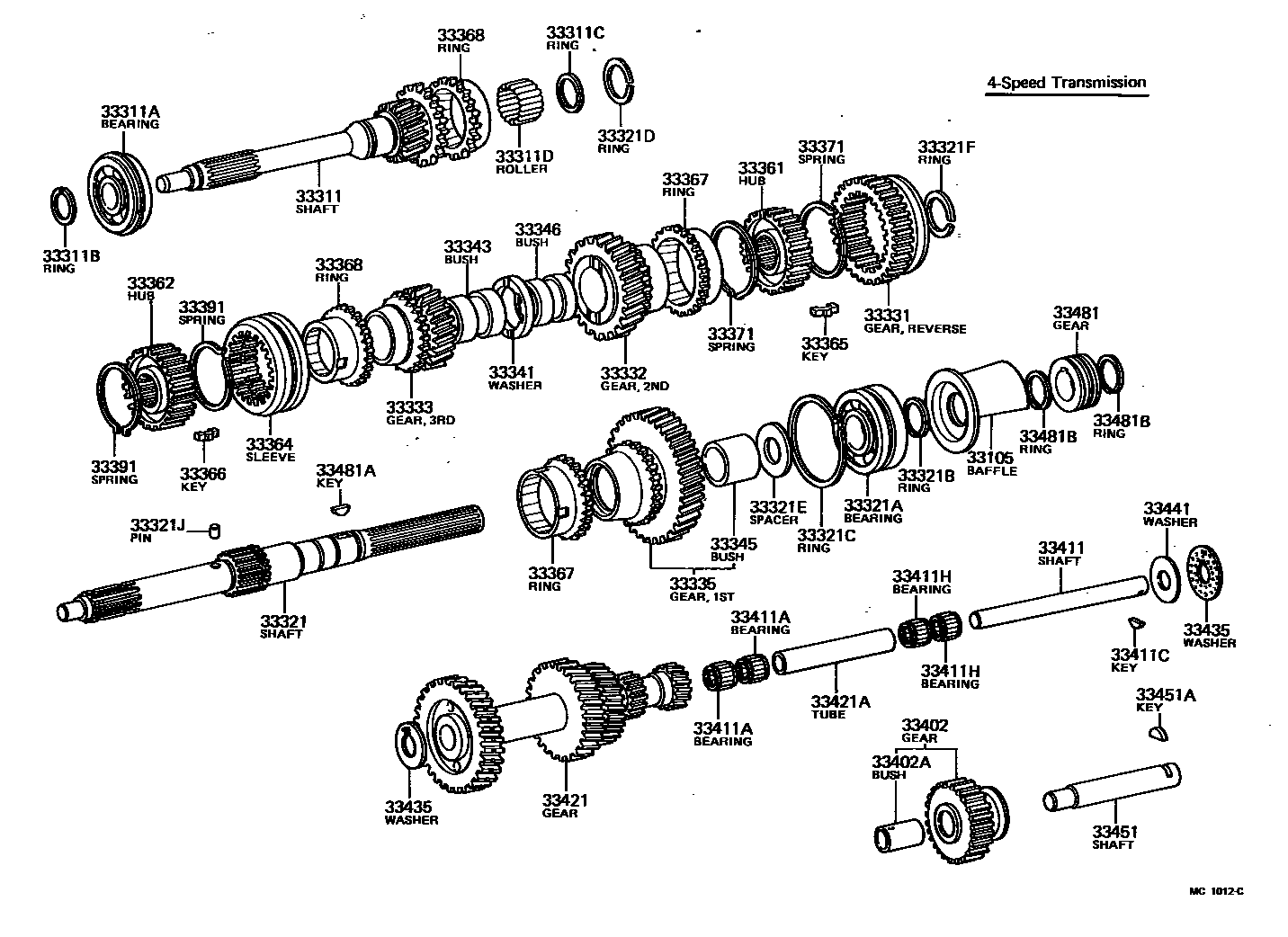

TRANSMISSION GEAR (MTM)
33105BAFFLE SUB-ASSY, EXTENSION HOUSING OIL
33311SHAFT, INPUT
33311ABEARING (FOR INPUT SHAFT FRONT)
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
T=2.30-2.35,MARK 11,T=2.30-2.35
T=2.05,MARK 1,T=2.05-2.10
T=2.10,MARK 2,T=2.10-2.15
T=2.15,MARK 3,T=2.15-2.20
T=2.20,MARK 4,T=2.20-2.25
T=2.25,MARK 5,T=2.25-2.30
33311CRING, HOLE SNAP (FOR NEEDLE ROLLER)
33311DBEARING, INPUT SHAFT
33321SHAFT, OUTPUT
33321ABEARING (FOR OUTPUT SHAFT REAR)
33321BRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
T=2.20-2.25,MARK 1,T=2.20-2.25
T=2.25-2.30
T=2.30-2.35
T=2.35-2.40
T=2.40-2.45
T=2.45-2.50
33321CRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
T=1.40-1.50
T=1.60-1.70
T=1.35,MARK 1,T=1.35-1.45
T=1.45,MARK 2,T=1.45-1.55
T=1.55,MARK 3,T=1.55-1.65
T=1.65,MARK 4,T=1.65-1.75
T=1.75,MARK 5,T=1.75-1.85
33321DRING, SHAFT SNAP (FOR CLUTCH HUB SET)
T=2.30-2.35,MARK 11,T=2.30-2.35
T=2.40,MARK 13,T=2.40-2.45
T=2.50,MARK 15,T=2.50-2.55
T=2.6-2.65,MARK 17,T=2.60-2.65
T=2.70-2.75
T=2.35-2.40,MARK 12,T=2.35-2.40
T=2.45,MARK 14,T=2.45-2.50
T=2.55,MARK 16,T=2.55-2.60
T=2.65-2.70
T=2.75-2.80
33321ESPACER (FOR 1ST GEAR TO BEARING)
T=1.6-1.7
33321FRING, SHAFT SNAP (FOR CLUTCH HUB TO 1ST GEAR)
T=1.50-1.55
T=1.60-1.65
T=1.70-1.75
T=1.80-1.85
33321JPIN, STRAIGHT (FOR OUTPUT SHAFT)
33332GEAR, 2ND
N=28
33333GEAR, 3RD
N=22
N=22
33335GEAR, 1ST
N=32
33341WASHER, 2ND & 3RD GEAR THRUST
33343BUSH, 3RD & 2ND GEAR
33345BUSH, 1ST GEAR
33346BUSH, 2ND GEAR
33361HUB, TRANSMISSION CLUTCH, NO.1
33362HUB, TRANSMISSION CLUTCH, NO.2
33364SLEEVE, TRANSMISSION HUB, NO.2
33365KEY, SYNCHROMESH SHIFTING, NO.1
33366KEY, SYNCHROMESH SHIFTING, NO.2
33367RING, SYNCHRONIZER, NO.1
33368RING, SYNCHRONIZER, NO.2
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33402GEAR SUB-ASSY, REVERSE IDLER
N=23
N=23
33402ABUSH OR BEARING (FOR REVERSE IDLER GEAR)
33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)
33411CKEY, WOODRUFF(FOR COUNTER GEAR SHAFT)
33411HBEARING OR ROLLER(FOR COUNTER GEAR REAR)
33421GEAR, COUNTER
N=33,27,21,14,15
N=33,27,21,14,15
N=32,27,21,14,15
N=32,27,21,14,15
33421ATUBE(FOR COUNTER GEAR)
33435WASHER, COUNTER GEAR CASE SIDE THRUST
33441WASHER, COUNTER GEAR SIDE THRUST, NO.1
T=2.25-2.30
T=2.25-2.30
T=2.25,T=2.20-2.30
T=2.35-2.40
T=2.35-2.40
T=2.35,T=2.30-2.40
T=2.45-2.50
T=2.45-2.50
T=2.45,T=2.40-2.50
T=2.55-2.60
T=2.55-2.60
T=2.55,T=2.50-2.60
T=2.65-2.70
T=2.65-2.70
T=2.65,T=2.60-2.70
T=2.16-2.26,FOR FRONT
T=2.21,T=2.16-2.26,FOR FRONT
T=1.25-1.30
T=1.30-1.35
T=1.35-1.40
T=1.40-1.45
T=1.45-1.50
T=1.50-1.55
T=1.55-1.60
T=1.60-1.65
T=1.65-1.70
T=1.70-1.75
T=1.75-1.80
T=1.80-1.85
T=1.85-1.90
T=1.20-1.25
33451SHAFT, REVERSE IDLER GEAR
33451AKEY, WOODRUFF (FOR REVERSE IDLER GEAR SHAFT)
33481GEAR, SPEEDOMETER DRIVE (MTM)
N=4
N=4,N=4
N=4
33481AKEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM)
33481BRING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR)
T=1.50,OD=33.8,T=1.45-1.55
T=2.20-2.25,MARK 1,T=2.20-2.25
T=1.50-1.55,MARK A,T=1.50-1.55
T=1.60-1.65,MARK B,T=1.60-1.65
T=1.70-1.75,MARK C,T=1.70-1.75
T=1.80-1.85,MARK D,T=1.80-1.85
T=1.90-1.95,MARK E,T=1.90-1.95
T=2.00-2.05,MARK F,T=2.00-2.05
T=2.10-2.15,MARK G,T=2.10-2.15
46 parts on this diagram · 2 diagrams in section
